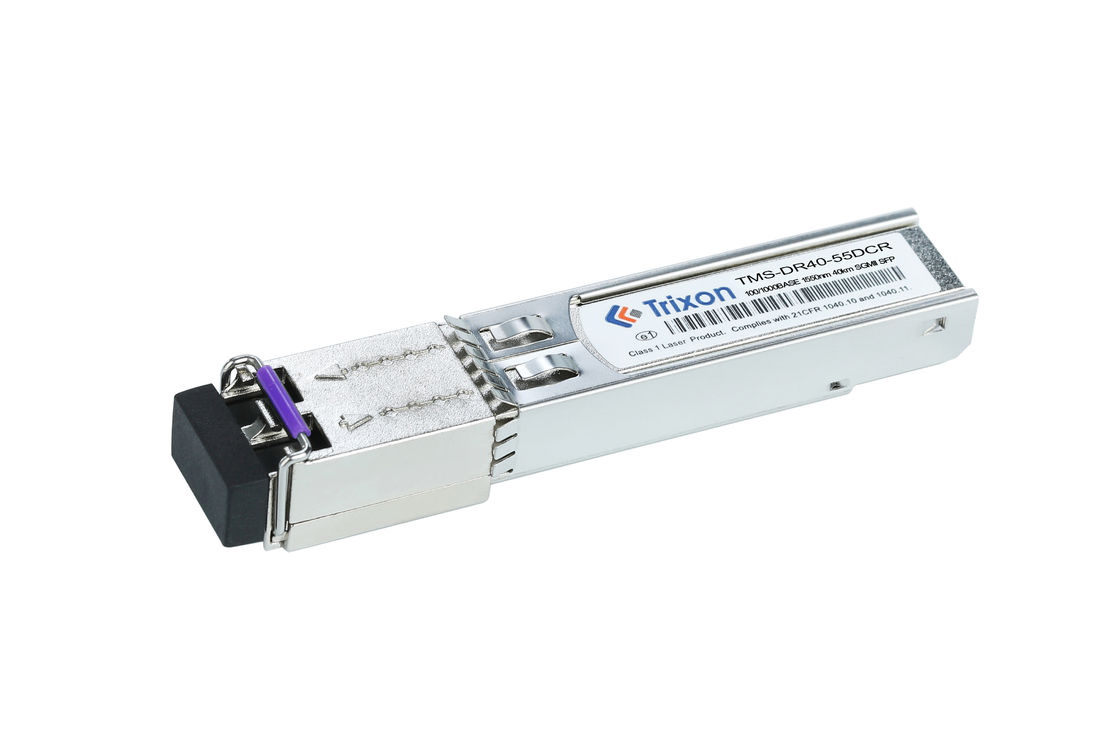

125M/1.25G SGMII Transceiver 40km Distance 1550nm-DFB Laser,TMS-DR40-55DCR
The 125M/1.25G SGMII Transceiver is a Serial-Gigabit-Medium-Interface-Transceiver (SGMII) transceiver that complies with MSA SFP Specification SFF-8472. It is designed to transmit and receive signals up to 40km over single-mode fiber (SMF). This transceiver can operate under a wide temperature range of -5℃~75℃. This 125M/1.25G SGMII Transceiver offers excellent performance and reliability. It provides a cost-effective solution for high-speed serial links between network equipment.
| Product Name | Serial-Gigabit-Medium-Interface-Transceiver |
|---|---|
| Data Rate | 125M/1.25G |
| Distance | 40km |
| Fiber Type | SMF |
| Laser | 1550nm-DFB |
| Connector Interface | Duplex LC |
| Interface Type | SGMII Interface |
| Compliant | Compliant With MSA SFP Specification SFF-8472 |
| Hot Pluggable | Yes |
| Operating Temperature | -5℃~75℃ |
TMS-DR40-55D (N) CR (1550nm, 40km, DFB-LD)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1530 | 1550 | 1570 | nm | |||
| Spectral Width*Note4 | ∆λ | 1 | nm | DFB-LD | ||||
| Average Output Power | 100BASE | POUT | -5 | 0 | dBm | |||
| 1000BASE | -5 | 0 | dBm | |||||
| Extinction Ratio | ER | 9 | dB | |||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | |||||
| Output Optical Eye | Compliant with IEEE 802.3ah-2004 | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1200 | 1600 | nm | ||||
| Sensitivity*Note5 | 100BASE | PIN | -28 | dBm | ||||
| 1000BASE | -22 | dBm | ||||||
| Receiver Overload | Overload | -3 | dBm | |||||
| Optical Return Loss | 12 | dB | ||||||
| LOS Assert | 100BASE | LOSA | -45 | dBm |
|
|||
| 1000BASE | -35 | |||||||
| LOS De-Assert | 100BASE | LOSD | -30 | dBm |
|
|||
| 1000BASE | -25 | |||||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
The Trixon TMS-DR40-55DCR Serial-Gigabit-Medium-Interface-Transceiver is a hot pluggable transceiver that complies with the Multi-Source Agreement (MSA) SFP specification SFF-8472. It is a duplex LC connector interface, with a maximum distance of 40 km and ideal for SGMII interface applications. It is manufactured by Trixon, a leading provider of networking and communications technologies, with a long history of innovation and excellence in the industry.
The Trixon TMS-DR40-55DCR Serial-Gigabit-Medium-Interface-Transceiver provides a cost-effective solution for high-speed networking and communications applications, such as voice, data, and video. It supports a wide range of protocols, such as Fibre Channel, Gigabit Ethernet, 10 Gigabit Ethernet, and SGMII. It is also compliant with the IEEE 802.3z Gigabit Ethernet/Fibre Channel standards.
The Trixon TMS-DR40-55DCR Serial-Gigabit-Medium-Interface-Transceiver is ideal for applications such as enterprise and data center networks, enterprise storage systems, and high-performance computing. It is also suitable for long-haul communication applications, such as metro and core networks, and for applications where a high-speed connection is required. The transceiver is capable of transmitting data at 10 Gbps with low power consumption and superior signal integrity.
The Trixon TMS-DR40-55DCR Serial-Gigabit-Medium-Interface-Transceiver is the perfect solution for those who require reliable and high-speed networking and communications solutions. It is designed and manufactured for maximum performance and reliability, and it is backed by Trixon's commitment to quality and customer satisfaction.
Packaging and Shipping for SGMII Transceiver:
Reference Datasheet File code: DS060008
