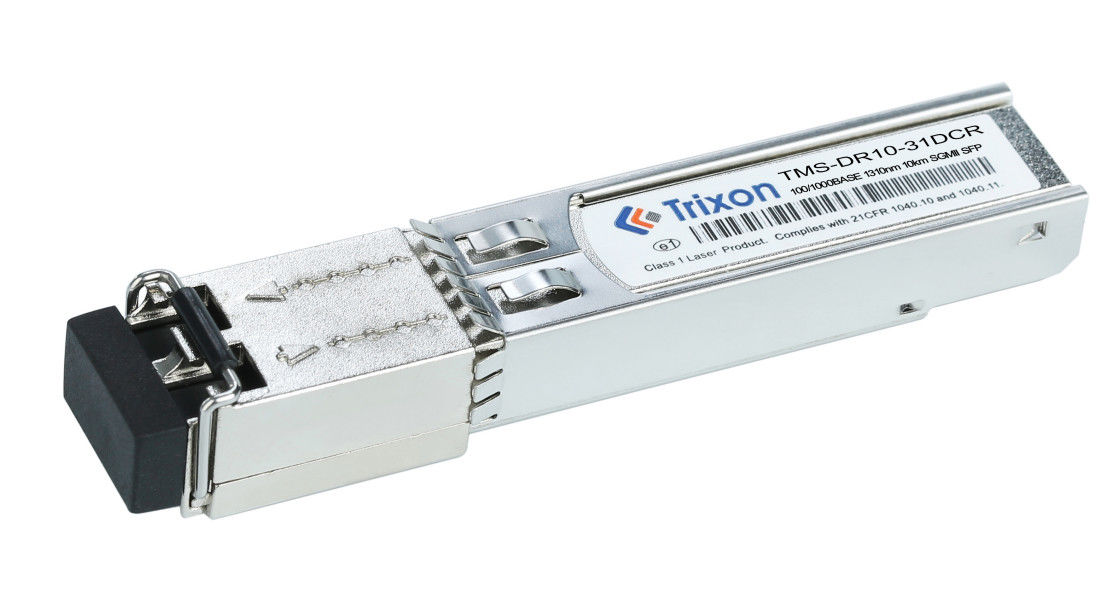

Duplex LC SGMII Transceiver Module 10km 1310nm With DDMI TMS-DR10-31DCR

Negotiable
MOQ
Negotiable
Price
Duplex LC SGMII Transceiver Module 10km 1310nm With DDMI TMS-DR10-31DCR
Features Gallery Product Description Request A Quote
Features
Specifications
Interface Type: SGMII Interface
Product Name: 125M/1.25G SGMII Transceiver
Operating Temperature: -5℃~75℃
Hot Pluggable: Yes
Distance: 10km
Connector Interface: Duplex LC
Compliant: Compliant With MSA SFP Specification SFF-8472
Data Rate: 125M/1.25G
Highlight:

Trixon Duplex LC SGMII Transceiver

,

Trixon SGMII Transceiver with DDMI

,

Trixon SGMII Transceiver 10km 1310nm

Basic Infomation
Place of Origin: CHINA
Brand Name: Trixon
Model Number: TMS-DR10-31DCR
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

125M/1.25G SGMII Transceiver Module,10km,1310nm,-5℃~75℃ with DDMI,TMS-DR10-31DCR

Product Description:

SGMII Transceiver Overview

The Serial-Gigabit-Medium-Interface-Transceiver (SGMII Transceiver) is a high performance, hot-pluggable transceiver module designed for duplex LC connector interface and Serial-Gigabit-Medium-Interface-Transceiver (SGMII) interface, offering data rates up to 1.25Gbps. It is compliant with IEEE 802.3 and is designed to operate across wide temperature range of -5℃~75℃. The SGMII Transceiver module supports both full-duplex and half-duplex operations, and is compliant with both the SGMII and 1000BASE-X standards. It is designed to provide reliable and cost-effective data transmission in high speed communication systems.

The SGMII Transceiver module provides a reliable, low-cost solution for high-speed data transmission, enabling systems to reach data rates of up to 1.25Gbps. The module is hot-pluggable, allowing for easy installation and maintenance. The module is compliant with IEEE 802.3 and is designed to operate across a wide temperature range. It supports both full-duplex and half-duplex operations, and is compliant with both the SGMII and 1000BASE-X standards.

The SGMII Transceiver module is ideal for applications requiring high-speed data transmission, such as 10G Ethernet, Fibre Channel, Storage Area Networks (SANs), and other high-speed communication systems. The module is designed to provide reliable and cost-effective data transmission, meeting the needs of a wide variety of applications.



Features:

  • Product Name: 125M/1.25G Serial-Gigabit-Medium-Interface-Transceiver (SGMII Transceiver)
  • Distance: 10km
  • Data Rate: 125M/1.25G
  • Hot Pluggable: Yes
  • Operating Temperature: -5℃~75℃


Technical Parameters:

Parameters Description
Interface Type SGMII Interface
Product Name 125M/1.25G SGMII Transceiver
Data Rate 125M/1.25G
Distance 10km
Hot Pluggable Yes
Connector Interface Duplex LC
Operating Temperature -5℃~75℃
Compliant Compliant With MSA SFP Specification SFF-8472





TMS-DR10-31D(N)CR (1310nm, 10km, FP-LD, PINTIA)

Parameter Symbol Min Typ. Max Unit Note
Transmitter
Centre Wavelength λc 1280 1310 1340 nm
Spectral Width*Note4 ∆λ     4 nm FP-LD
Average Output Power 100BASE POUT -15   -8 dBm
1000BASE -9   -3 dBm
Extinction Ratio ER 9     dB
Average Power of OFF Transmitter POFF     -45 dBm
Output Optical Eye Compliant with IEEE 802.3ah-2004
Receiver
Centre Wavelength λc 1200   1600 nm
Sensitivity*Note5 100BASE PIN     -28 dBm
1000BASE     -22 dBm
Receiver Overload Overload -3     dBm
Optical Return Loss   12     dB
LOS Assert 100BASE LOSA -45     dBm





1000BASE -35
LOS De-Assert 100BASE LOSD     -30 dBm





1000BASE     -25
LOS Hysteresis   0.5    4 dB


Applications:

Trixon TMS-DR10-31DCR 125M/1.25G SGMII Transceiver

The Trixon TMS-DR10-31DCR is a 125M/1.25G Serial-Gigabit-Medium-Interface (SGMII) Transceiver that is made in China. It is designed to transmit data over a distance of up to 10km and is hot pluggable for easy installation. It has a SGMII interface that supports both 125M and 1.25G data rates, making it an ideal choice for both short and long-distance data transmission. The SGMII transceiver is designed to be reliable and efficient, with minimal power consumption and high data throughput. It is also highly compatible with existing networking systems.



Customization:

Trixon TMS-DR10-31DCR SGMII Transceiver

Brand Name: Trixon
Model Number: TMS-DR10-31DCR
Place of Origin: CHINA
Interface Type: SGMII Interface
Distance: 10km
Connector Interface: Duplex LC
Hot Pluggable: Yes
Operating Temperature: -5℃~75℃

Trixon's TMS-DR10-31DCR SGMII Transceiver is a Serial-Gigabit-Medium-Interface-Transceiver (SGMII) that supports hot pluggable, duplex LC connectors, and operating temperatures ranging from -5℃ to 75℃. It is perfect for applications that require long-distance transmission up to 10km.



Support and Services:

The SGMII Transceiver provides technical support and services for customers. Our support team is available 24/7 to answer any questions and provide assistance with installation, configuration, and troubleshooting. We also offer on-site training and consultations to ensure that customers are able to use the product to its fullest potential. Additionally, we provide regular software and firmware updates to ensure the product is always up to date. If customers ever encounter any issues, our team is available to help resolve them quickly and efficiently.



Packing and Shipping:

The SGMII Transceiver will be packaged and shipped in a manner that is safe and secure for the product. Packaging materials will include bubble wrap, foam, and cardboard boxes. The transceiver will be placed in an anti-static bag for extra protection. The product will then be placed in a box and sealed with tape. A shipping label will be placed on the box that includes the customer's address and contact information.

The box will then be placed in a larger box or container for shipping. The container will be filled with cushioning material to protect the product during transit. The container will be sealed with tape and a shipping label will be placed on it. The package will then be ready to be shipped to the customer.



Reference Datasheet File code: DS060008
