Brand Name: | Trixon |
Model Number: | TCS-GEM1-01NCR |
MOQ: | Negotiable |
Price: | Negotiable |
Packaging Details: | Negotiable |
Payment Terms: | L/C D/P |

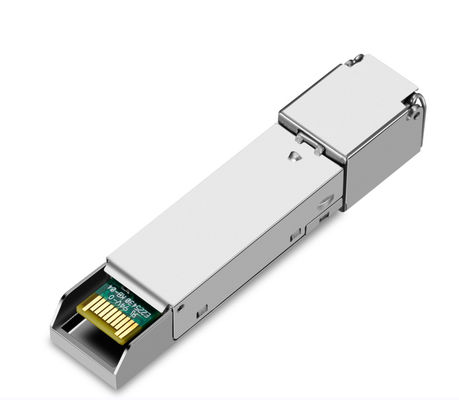

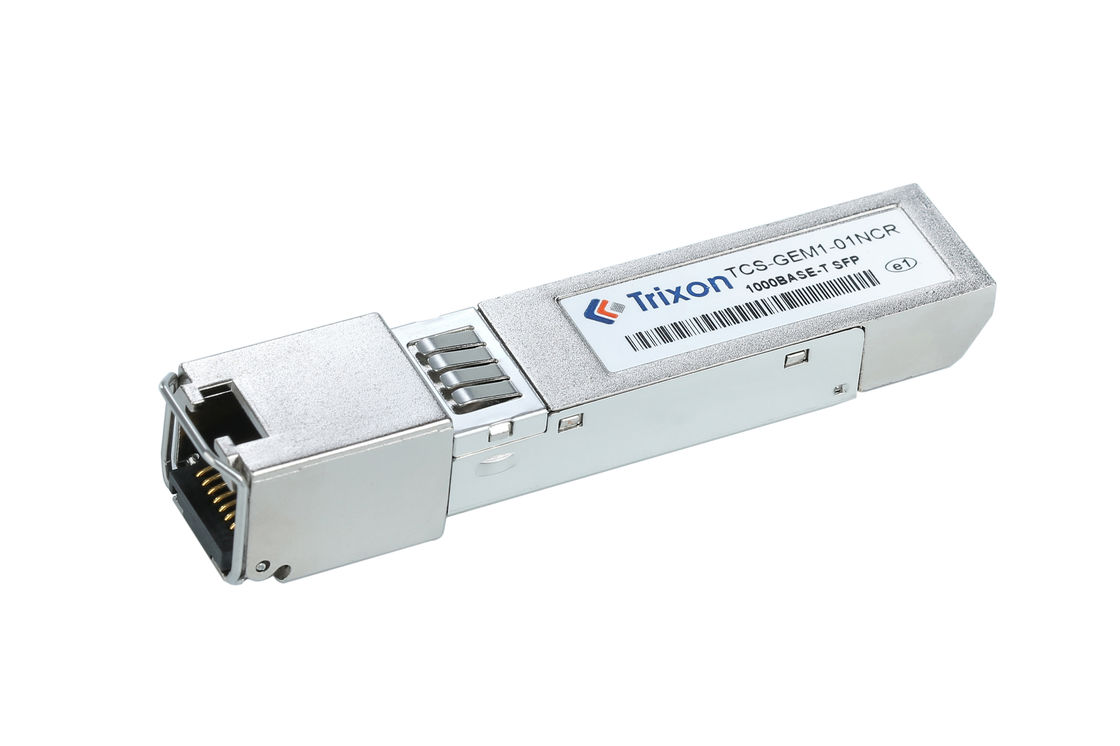

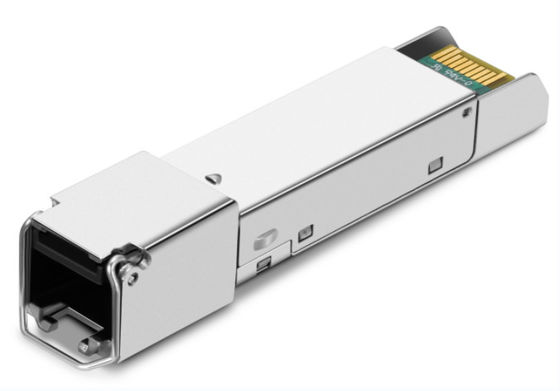

TCS-GEM1-01NCR 1.25G Copper 10/100/1000BASE-T Transceiver supporting 100m Distance,RJ45
TCS-GEM1-01NCR is a 1.25G copper 10/100/1000BASE-T transceiver that supports a maximum transmission distance of 100 meters and uses an RJ45 interface. This transceiver can be used to convert a fiber optic network connection to an Ethernet network connection, providing high-speed and reliable data transmission. It is suitable for application scenarios that need to transmit network signals to long distances, such as offices, data centers, campus networks, etc. The use of copper transmission media enables it to provide high performance and stable network connections over short distances.
Parameter | Specification |
---|---|
Connector | Compact RJ-45 Connector Assembly |
Hot Pluggable | Yes |
Product Name | 1.25G Copper Transceiver |
Interface Type | RJ-45 |
Operating Temperature | -5℃ To 70℃ |
Distance | 100m |
Data Rate | 1.25Gbps,10M 100M 1000M |
Parameter | Symbol | Min | Max | Unit |
Storage Temperature | TS | -40 | +85 | °C |
Supply Voltage | VCC | -0.5 | 4.0 | V |
Operating Humidity | - | 5 | 95 | % |
Note3: Exceeding any one of these values may destroy the device permanently.
Parameter | Symbol | Min | Typical | Max | Unit |
Power Supply Voltage | Vcc | 3.13 | 3.30 | 3.47 | V |
Power Supply Current | Icc | - | - | 400 | mA |
Surge current | Isurge | 30 | mA | ||
Case Operating Temperature | STop | -5 | - | +70 | °C |
ITop | -40 | - | +85 | ℃ | |
Data Rate (note4) | - | 10 | - | 1000 | Mbps |
Transmission Distance (note5) | - | 100 | m |
Office Network: This transceiver can be used in office network environments to connect computers, printers, routers, switches and other devices to provide fast and reliable network connections. It supports data transfer rates up to 1.25G and is suitable for office environments that handle large amounts of data.
Data Center: In data centers, TCS-GEM1-01NCR can be used to connect servers, storage devices, network switches and other equipment. It supports high-speed Ethernet connections, helping to achieve high-bandwidth and low-latency data transmission to meet the network performance requirements of data centers.
Campus Network: This transceiver can be used in campus networks to establish local area networks (LAN) to connect computers and network devices in classrooms, laboratories, libraries, etc. It supports longer transmission distances (up to 100 meters) and is suitable for dispersed network layouts in campus environments.
Small Business Network: For small business or office networking, the TCS-GEM1-01NCR provides an affordable and reliable solution. It can connect a variety of devices, including desktop computers, laptops, IP phones, and web cameras, to provide enterprises with fast and stable network connections.
Connector Types: The transceiver may support different connector types, such as the standard RJ45 connector or other specialized connectors like LC, SC, or SFP. The choice of connector depends on the specific networking equipment and infrastructure you have or plan to use. Some manufacturers may offer customization options to accommodate different connector types based on your requirements.
Cable Length: The standard maximum transmission distance for the TCS-GEM1-01NCR transceiver is 100 meters. However, if you require a longer or shorter cable length, some manufacturers may offer customization options to provide cables of different lengths to suit your specific deployment needs.
Labeling and Branding: Depending on your requirements, it may be possible to have custom labeling or branding on the transceiver module. This can be particularly useful if you need to differentiate and identify specific transceivers within your network infrastructure.
Compatibility and Protocol Support: While the TCS-GEM1-01NCR transceiver supports 10/100/1000BASE-T Ethernet standard, there may be customization options available to support other protocols or network standards. If you have specific compatibility requirements or need support for alternative protocols, it's worth discussing these options with the manufacturer.
Our 1.25G Copper Transceiver product offers comprehensive technical support and service. Our team is available to answer any technical questions you may have, as well as provide assistance with the installation, configuration, and troubleshooting of the product. Additionally, we provide firmware updates, and if necessary, a replacement unit.
1.25G Copper Transceiver is packaged and shipped in a single box containing a single unit. The box includes the 1.25G Copper Transceiver and all necessary cables and accessories.
When shipping, the box should be secured with a thick layer of bubble wrap and placed in a sturdy cardboard box. This will ensure that the 1.25G Copper Transceiver is not damaged in transit.
The 1.25G Copper Transceiver should be handled with care and should not be dropped or subjected to any other physical force. Care should also be taken to ensure that the 1.25G Copper Transceiver is not exposed to extreme temperatures or humidity.
If any damage is observed upon receipt of the 1.25G Copper ransceiver, please contact the supplier immediately.
Reference Datasheet File code: DS070013
|
