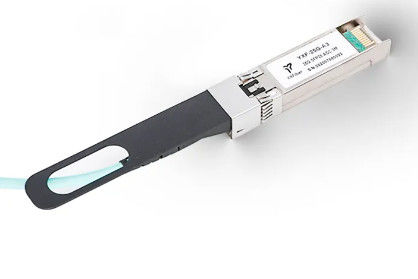

25G SFP28 AOC 5M -5-70°C Active Optical Cables, Tansceiver Modue,850nm-VCSEL,TAS-X5A5-85NCR
AOC Transceiver is a high performance Automatic Optical Connector Transceiver Module, designed for 25Gbps data rate transmission over 5M of Multi-Mode Fiber (MMF). It utilizes a 850nm-VCSEL laser to ensure reliable and stable signal transmission.
AOC Transceiver has been designed for applications requiring superior and reliable performance, such as data centers, cloud storage, high-speed interconnects, and other high-speed data transfer scenarios. It is an ideal solution for those who desire an efficient, reliable, cost-effective and high-performance optical transceiver module.
AOC Transceiver offers an innovative and reliable solution for 25Gbps optical connection, providing superior performance and flexibility. It is an excellent choice for those looking for an advanced and secure optical connection.
| Parameter | Value |
|---|---|
| Product Name | AOC Transceiver Module |
| Cable Type | Active Optical Cables |
| Fiber Mode | Multi-Mode |
| Operating Temperature | -5~70°C |
| Data Rate | 25Gbps |
| Fiber Type | MMF |
| Compliant | Compliant With IEEE802.3z |
| Laser | 850nm-VCSEL |
| Distance | 5M |
| Pin Num. | Name | Function | Plug Seq. | Notes | ||
| 1 | VeeT | Transmitter Ground | 1 | Note 7 | ||
| 2 | TX Fault | Transmitter Fault Indication | 3 | Note 3 | ||
| 3 | TX Disable | Transmitter Disable | 3 | Note 4, Module disables on high or open. | ||
| 4 | SDA | Module Definition 2 | 3 | 2-wire Serial Interface Data Line. | ||
| 5 | SCL | Module Definition 1 | 3 | 2-wire Serial Interface Clock. | ||
| 6 | MOD-ABS | Module Definition 0 | 3 | Note 5 | ||
| 7 | RS0 | RX Rate Select (LVTTL). | 3 |
Rate Select 0, optionally controls SFP+ module receiver. This pin is pulled low to VeeT with a >30K resistor.. |
||
| 8 | LOS | Loss of Signal | 3 | Note 6 | ||
| 9 | RS1 | TX Rate Select (LVTTL). | 1 |
Rate Select 1, optionally controls SFP+ module transmitter. This pin is pulled low to VeeT with a >30K resistor |
||
| 10 | VeeR | Receiver Ground | 1 | Note 7 | ||
| 11 | VeeR | Receiver Ground | 1 | Note 7 | ||
| 12 | RD- | Inv. Received Data Out | 3 | Note 8 | ||
| 13 | RD+ | Received Data Out | 3 | Note 8 | ||
| 14 | VeeR | Receiver Ground | 1 | Note 7 | ||
| 15 | VccR | Receiver Power | 2 | 3.3V ± 5%, Note 9 | ||
| 16 | VccT | Transmitter Power | 2 | 3.3V ± 5%, Note 9 | ||
| 17 | VeeT | Transmitter Ground | 1 | Note 7 | ||
| 18 | TD+ | Transmit Data In | 3 | Note 10 | ||
| 19 | TD- | Inv. Transmit Data In | 3 | Note 10 | ||
| 20 | VeeT | Transmitter Ground | 1 | Note 7 | ||
Trixon TAS-X5A5-85NCR is an Automatic Optical Connector Transceiver, made in China. It is a Multi-Mode Fiber (MMF) transceiver, with a 850nm-VCSEL laser. It also supports Active Optical Cables, and the maximum transmission distance is 5M. With its impressive features, Trixon TAS-X5A5-85NCR is ideal for a wide range of applications, such as high speed data transmission, HD video streaming, and more. It is also suitable for long distance transmission, where traditional copper cables are not an option. With its Automatic Optical Connector Transceiver, this product makes it easy to connect multiple devices, and its advanced features provide optimal performance. It is a perfect choice for those who need a reliable and efficient connection.
Brand Name: Trixon
Model Number: TAS-X5A5-85NCR
Place of Origin: CHINA
Operating Temperature: -5~70°C
Data Rate: 25Gbps
Fiber Type: MMF
Product Name: AOC Transceiver Module
Distance: 5M
Automatic Optical Connector Transceiver Module is a high-performance product with great features. It offers 25Gbps data rate and can reach up to 5M distance. It also has an operating temperature range of -5~70°C. This AOC Transceiver Module is designed and manufactured by Trixon with model number TAS-X5A5-85NCR. It is made in CHINA and uses MMF fiber type.
AOC Transceiver provides technical support and services to ensure that you get the most out of your product. Our team of experts is available to help you with any technical issues you may encounter. We provide troubleshooting, installation, and setup assistance to help you get up and running quickly. We also offer regular updates to ensure your product is operating at peak performance. If you have any questions or concerns, our customer service team is available to provide assistance.
AOC Transceiver is packaged in a box with a foam insert to secure the product. The box should be labeled with the product name, model number and other related information. Before shipping, the box should be sealed with tape to ensure that it is secure during transit.
AOC Transceiver should be shipped using a reliable courier service. The package should be marked with the appropriate shipping information, such as the recipient’s name and address. The package should also be insured to cover any potential damages that may occur during transit.
Reference Datasheet File code: DS180007
