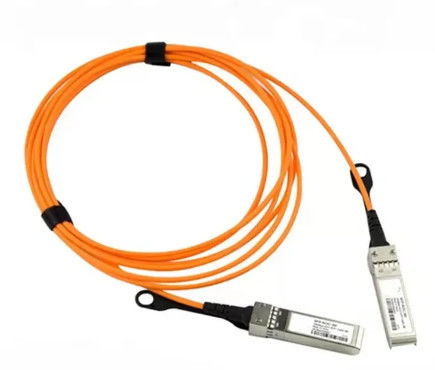

40G QSFP+ AOC Transceiver Module,Distance 5M 850nm,Active Optical Cables,TAS-FGA5-85NCR
AOC Transceiver is a high-performance Automatic Optical Connector Transceiver Module, which is compliant with IEEE802.3z standards. It features data transmission rates of up to 40Gbps and supports Multi-Mode fiber cables. This module is ideal for high-speed networking applications, providing exceptional performance and reliability. It is also designed to be compatible with Active Optical Cables, providing an efficient and reliable connection. AOC Transceiver Module is a perfect choice for those who need a reliable and high-performance solution for their network infrastructure.
| Parameter | Value |
|---|---|
| Data Rate | 40Gbps |
| Compliant | IEEE802.3z |
| Operating Temperature | -5~70°C |
| Fiber Type | MMF |
| Cable Type | Active Optical Cables |
| Fiber Mode | Multi-Mode |
| Product Name | AOC Transceiver Module |
| Laser | 850nm-VCSEL |
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | Tst | -20 | 85 | degC |
| Relative Humidity (non-condensation) | RH | - | 85 | % |
| Supply Voltage | VCC | -0.5 | 3.6 | V |
| Voltage on LVTTL Input | Vilvttl | -0.5 | VCC+0.5 | V |
| LVTTL Output Current | Lolvttl | - | 15 | mA |
| Voltage on Open Collector Output | Voco | 0 | 6 | V |
Note4: Exceeding any one of these values may destroy the device permanently.
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Operating Case Temperature | Topc | -5 | - | 70 | ℃ | |
| Power Supply Voltage | VCC | 3.1 | - | 3.5 | V |
The Trixon TAS-FGA5-85NCR Automatic Optical Connector Transceiver is designed for use in a variety of applications, such as multi-mode fiber networks, short-distance data transmission, and fiber channel applications. This transceiver is compliant with IEEE802.3z and has a laser of 850nm-VCSEL, making it suitable for use in MMF fiber networks. It is ideal for transmitting data up to a distance of 500 meters with a maximum data rate of 10Gbps. The transceiver is equipped with an active optical cable for reliable and fast data transmission. It is also equipped with a high-precision automatic optical connector for easy and secure connection between two devices. The transceiver is also compliant with RoHS standards, making it safe and reliable for use in many applications.
Brand Name: Trixon
Model Number: TAS-FGA5-85NCR
Place of Origin: CHINA
Operating Temperature: -5~70°C
Laser: 850nm-VCSEL
Product Name: AOC Transceiver Module
Cable Type: Active Optical Cables
Fiber Mode: Multi-Mode
The Trixon Automatic Optical Connector Transceiver is perfect for any application requiring reliable data transmission. With its 850nm-VCSEL laser and Active Optical Cables, it is capable of multi-mode transmission over a wide temperature range (-5~70°C). As its name suggests, it is an Automatic Optical Connector Transceiver, meaning it is completely automated and requires no additional setup.
At AOC, we provide comprehensive technical support and service for our transceivers. Our dedicated team of experts are available 24/7 to answer any questions you may have and provide you with the best possible solutions.
We provide on-site support for any issues related to our transceivers. Our technicians will inspect the product and provide you with an accurate diagnosis of the problem, and suggest the appropriate solution.
We offer free online technical support as well. Our online support team can be reached via email or telephone, and they are available to answer your questions in a timely manner.
We also provide a warranty with all of our transceivers. The warranty covers any manufacturing defects or malfunctions in the product. If your transceiver is found to be defective, we will provide a free replacement.
At AOC, we strive to provide the best quality products and service. If you have any questions or need assistance, please do not hesitate to contact us.
Reference Datasheet File code: DS180019
