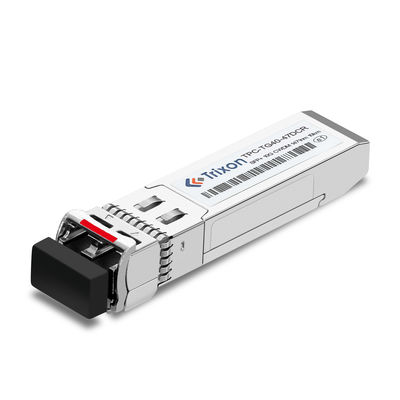

The 10G SFP+ CWDM Transceiver Module is compliant with SFF-8431 and SFF-8432, offering 24dB power budget (DML) and 14.5dB power budget (EML). It has a maximum power consumption of 1W for DML and 2W for EML. The module also provides Digital Diagnostic Monitoring (DDM) and Digital Optical Monitoring (DOM) functions, making it a reliable and cost-effective solution for high-speed optical network applications.
The SFP+ Transceiver Module is designed to provide a high-speed, low-cost solution for 10Gbps fibre-optic network applications. With its advanced optical and electrical performance, the module is able to deliver up to 10Gbps data rate over single-mode and multimode optical fibre. It is an ideal solution for high-speed 10Gbps Ethernet and Fibre Channel applications.
The 10G SFP+ CWDM Transceiver Module is a reliable and cost-effective solution for high-speed optical network applications. It is designed to provide superior performance and reliability in an economical package, making it an ideal choice for 10Gbps fibre-optic network applications.
| Attribute | Value |
|---|---|
| Data Rate | 10.3 Gb/s |
| Power Budget(dB) | 24dB(DML) 14.5dB (EML) |
| DDM/DOM | Yes |
| Temperature Range | 0℃ ~+70℃ |
| Optical Interface | Duplex LC Connector Interface |
| Fiber Type | SMF |
| Package | Hot Pluggable SFP+ MSA Package |
| Compliant | Compliant With SFF-8431 And SFF-8432 |
| Distance | 40km |
| Laser | CWDM DFB 1271~1451nm CWDM EML 1471~1571nm |
10.3Gbps 40KM DML(1271-1451) Power Budget 24dB
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note6 | ||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||
| Average Output Power | POUT | 2 | 7 | dBm | ||||
| Extinction Ratio | ER | 3.5 | dB | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||
|
Transmitter and Dispersion Penalty |
TDP | 3.5 | dB | |||||
| Optical Return Loss Tolerance | ORLT | 12 | dB | |||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||
| Sensitivity*Note4 | APD | -22 | dBm | |||||
| Receiver Overload | Overload | -7 | dBm | Note4 | ||||
| Receiver Reflectance | -12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -24 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
10.3Gbps 40KM EML(1471-1611) Power Budget 14.5dB
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note7 | ||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||
| Average Output Power | POUT | -1 | 5 | dBm | ||||
| Extinction Ratio | ER | 6 | dB | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||
|
Transmitter and Dispersion Penalty |
TDP | 3 | dB | |||||
| Optical Return Loss Tolerance | ORLT | 12 | dB | |||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||
| Sensitivity*Note4 | PIN | -15.5 | dBm | |||||
| Receiver Overload | Overload | 0.5 | dBm | |||||
| Receiver Reflectance | -12 | dB | ||||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS De-Assert | LOSD | -17 | dBm | |||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||
SFP+ Transceiver Module, also known as Small Form-Factor Pluggable Plus Transceiver Module, is an innovative product developed by Trixon. Its model number is TPC-TG40-27~61DCR and place of origin is China. It is designed to work with fiber type SMF and with a temperature range from 0℃ ~+70℃. Moreover, it offers DDM/DOM and power consumption that is 1W maximum for DML and 2W maximum for EML. This SFP+ Transceiver Module is equipped with Duplex LC Connector Interface, making it widely used in data center, storage area networks, fiber channel, and other areas.
This SFP+ Transceiver Module has been widely used in data centers, storage area networks, fiber channel, and other areas, due to its excellent performance. It is highly reliable and can be used to connect different devices with great stability. Besides, it consumes low power and has a temperature range from 0℃ ~+70℃. It is made with premium quality materials and with precise manufacturing processes to ensure a long lifespan and high performance. In addition, it offers DDM/DOM and Duplex LC Connector Interface, making it easy to install and use.
Trixon's SFP+ Transceiver Module is a must-have product for anyone who needs to connect different devices in the data center, storage area networks, fiber channel, and other areas. It is reliable, low power consumption, and offers excellent performance at an affordable price. With Duplex LC Connector Interface and temperature range from 0℃ ~+70℃, it is easy to install and use. Plus, its premium quality materials and precise manufacturing processes guarantee its long lifespan and high performance.
Contact the manufacturer: Get in touch with the manufacturer or supplier of the TPC-TG40-27~61DCR transceiver module and inquire about their customization capabilities. Provide them with detailed information about your specific requirements.
Specify your customization requirements: Clearly communicate your customization needs to the manufacturer. This may include desired specifications, performance parameters, wavelengths, temperature ranges, or any other specific features you require. Be as detailed and specific as possible to help the manufacturer understand your needs.
Consult with the manufacturer: Engage in discussions with the manufacturer to explore the feasibility of your customization requests. They will be able to provide guidance, technical expertise, and recommendations based on their capabilities and experience. They can also advise you on any limitations or trade-offs associated with the customization.
Evaluate cost and lead time: Customization may involve additional costs and could impact lead times. Discuss these factors with the manufacturer to understand the pricing and production timeline associated with the customization. Consider the trade-offs between customization, cost, and time considerations.
Review and finalize: Once you have discussed and agreed upon the customization details, review the proposed specifications, pricing, and any other relevant factors. Ensure that both parties have a clear understanding of the customization scope before finalizing the order.
SFP+ Transceiver Module provides technical support and service as follows:
The SFP+ Transceiver Module is packaged in an anti-static bag, and then placed in a cardboard box. The box is then secured with bubble wrap and taped shut. It is then shipped in a standard size cardboard box.
The SFP+ Transceiver Module is shipped with a tracking number to guarantee safe delivery. The box is also labeled with the product name and its tracking number.
Reference Datasheet File code: DS210002
