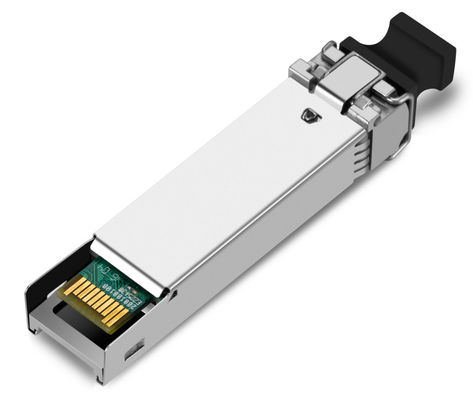

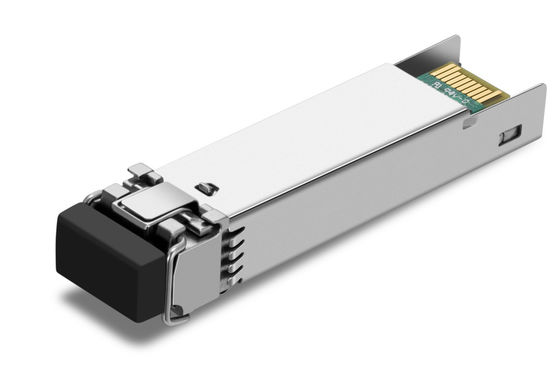

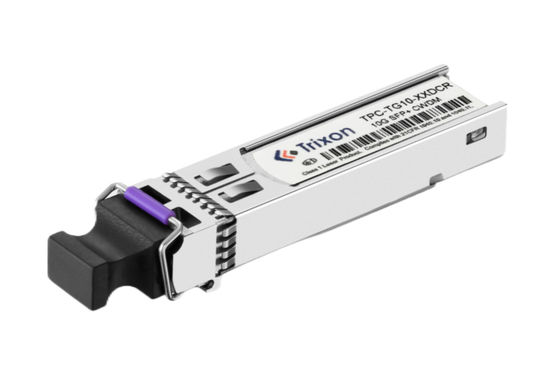

TPC-TG10-27~61DCR 10G SFP+ CWDM Transceiver Module 1271nm-1611nm 10km, 0℃ ~+70℃
Our 10G SFP+ CWDM Transceiver Module is a Small Form-Factor Pluggable Plus (SFP+) Transceiver Module that supports 10G Ethernet applications. It is designed to operate within a wide range of temperature from 0℃ to +70℃ and can support a maximum power consumption of 1W for DML and 2W for EML. It features a Duplex LC Connector Interface and utilizes CWDM DFB laser for 1271~1451nm and CWDM EML laser for 1471~1571nm. Our 10G SFP+ CWDM Transceiver Module supports high-speed data transmission and is ideal for use in various 10G Ethernet applications.
| Parameters | Specifications |
|---|---|
| Distance | 10km |
| Power consumption | 1W Maximum For DML,2W Maximum For EML |
| Fiber Type | SMF |
| Compliant | Compliant With SFF-8431 And SFF-8432 |
| Data Rate | 10.3Gb/s |
| Package | Hot Pluggable SFP+ MSA Package |
| Product Name | 10G SFP+ CWDM Transceiver Module |
| DDM/DOM | Yes |
| Temperature Range | 0℃ ~+70℃ |
| Optical Interface | Duplex LC Connector Interface |
( 10.3Gbps,10km 17.5dB High Power budget)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||||||||||||||||||||||||||||||||||||
| Transmitter | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note5 | ||||||||||||||||||||||||||||||||||||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||||||||||||||||||||||||||||||||||||
| Average Output Power | POUT | 2 | 7 | dBm | ||||||||||||||||||||||||||||||||||||||
| Extinction Ratio | ER | 3.5 | dB | |||||||||||||||||||||||||||||||||||||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||||||||||||||||||||||||||||||||||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
|
Transmitter and Dispersion Penalty |
TDP |
|
dB |
|
||||||||||||||||||||||||||||||||||||||
| Optical Return Loss Tolerance | ORLT | - | - | 12 | dB | |||||||||||||||||||||||||||||||||||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||||||||||||||||||||||||||||||||||||
| Receiver | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||||||||||||||||||||||||||||||||||||
| Sensitivity*Note4 | PIN | -15.5 | dBm | |||||||||||||||||||||||||||||||||||||||
| Receiver Overload | Overload | 0.5 | dBm | Note4 | ||||||||||||||||||||||||||||||||||||||
| Receiver Reflectance | -12 | dB | ||||||||||||||||||||||||||||||||||||||||
| LOS Assert | LOSA | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS De-Assert | LOSD | -17 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||||||||||||||||||||||||||||||||||||
( 10.3Gbps,10km 14.5dB Lower Power budget)
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||||||||||||||||||||||||||||||||||||
| Transmitter | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note5 | ||||||||||||||||||||||||||||||||||||
| Spectral Width*Note3 | ∆λ | 1 | nm | |||||||||||||||||||||||||||||||||||||||
| Average Output Power | POUT | 0 | 5 | dBm | ||||||||||||||||||||||||||||||||||||||
| Extinction Ratio | ER | 3.5 | dB | |||||||||||||||||||||||||||||||||||||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||||||||||||||||||||||||||||||||||||
| Average Power of OFF Transmitter | POFF | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
|
Transmitter and Dispersion Penalty |
TDP |
|
dB |
|
||||||||||||||||||||||||||||||||||||||
| Optical Return Loss Tolerance | ORLT | - | - | 12 | dB | |||||||||||||||||||||||||||||||||||||
| Output Optical Eye | Compliant with IEEE 802.3ae | |||||||||||||||||||||||||||||||||||||||||
| Receiver | ||||||||||||||||||||||||||||||||||||||||||
| Centre Wavelength | λc | 1260 | 1620 | nm | ||||||||||||||||||||||||||||||||||||||
| Sensitivity*Note4 | PIN | -15 | dBm | |||||||||||||||||||||||||||||||||||||||
| Receiver Overload | Overload | 0.5 | dBm | Note4 | ||||||||||||||||||||||||||||||||||||||
| Receiver Reflectance | -12 | dB | ||||||||||||||||||||||||||||||||||||||||
| LOS Assert | LOSA | -30 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS De-Assert | LOSD | -17 | dBm | |||||||||||||||||||||||||||||||||||||||
| LOS Hysteresis | 0.5 | 4 | dB | |||||||||||||||||||||||||||||||||||||||
Data Centers: The module is designed for high-speed data transmission within data center environments, enabling efficient connectivity between switches, routers, and servers. It supports bandwidth-intensive applications and enhances the performance of data center infrastructure.
Metropolitan Area Networks (MANs): It is suitable for use in MANs, providing high-bandwidth connectivity between different sites across metropolitan areas. The module ensures reliable and fast communication in urban networking environments.
Telecommunications: The module can be deployed in telecommunications networks to facilitate high-speed data transmission over medium distances. It enables efficient communication between network nodes and meets the growing bandwidth requirements of modern telecommunications infrastructure.
Enterprise Networks: It is applicable in enterprise networks to interconnect network segments, establish high-speed links between remote offices, or connect different locations. The module ensures efficient and reliable communication within the enterprise network infrastructure.
Wireless Backhaul: The module is ideal for wireless backhaul applications, establishing high-speed connections between wireless base stations. It supports the transmission of data and voice traffic over medium distances, enabling the expansion and optimization of wireless network coverage.
Contact the manufacturer: Get in touch with the manufacturer or supplier of the transceiver module and inquire about their customization capabilities. Provide them with detailed information about your specific requirements.
Specify your customization requirements: Clearly communicate your needs to the manufacturer. This includes desired specifications, performance parameters, wavelength selection, temperature range adjustment, power consumption optimization, or any other specific features you require. The more specific you can be, the better the manufacturer can understand your needs.
Consult with the manufacturer: Engage in discussions with the manufacturer to explore the feasibility of your customization requests. They will provide guidance, technical expertise, and recommendations based on their capabilities and experience. They can also advise on any limitations or trade-offs associated with the customization.
Evaluate cost and lead time: Customization may incur additional costs and impact lead times. Discuss these factors with the manufacturer to understand the pricing and production timeline associated with the customization. Consider the trade-offs between customization, cost, and time considerations.
Review and finalize: Once you have discussed and agreed upon the customization details, review the proposed specifications, pricing, and any other relevant factors. Ensure both parties have a clear understanding of the customization scope before finalizing the order.
SFP+ Transceiver Module Technical Support and Service
Our team of technical experts is available to answer any questions you may have about our SFP+ Transceiver Module. We will provide you with up-to-date product information, troubleshooting help, and advice on how to get the most out of your SFP+ Transceiver Module.
We offer a variety of technical support services including:
Our team of experts will work with you to find the best solution for your individual needs. If you have any questions or need assistance, please don't hesitate to contact us.
The SFP+ Transceiver Module is securely packaged to ensure it arrives safely and undamaged. The module is placed in a protective foam shell, surrounded by bubble wrap and placed in a strong cardboard box.
We ship our SFP+ Transceiver Module via FedEx or USPS with tracking information provided. We also offer express shipping for customers who need their order faster.
Reference Datasheet File code: DS210002
