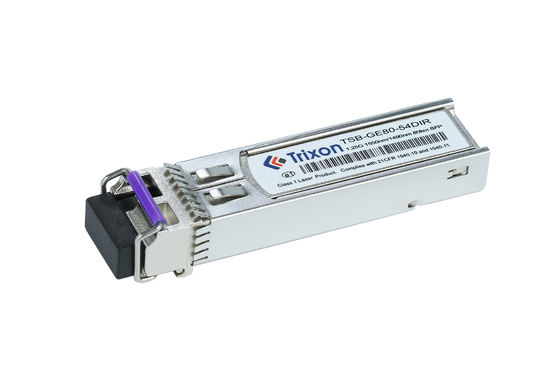

Introducing the SFP Bidirectional Transceiver Module, the ideal optical transceiver for data centers and enterprise networks. This transceiver module features a remarkable temperature range of -40℃ to +85℃ and supports up to 1.25G data rate. It is equipped with a DDMI interface, a LC connector, and an industry-leading 3-year warranty.
The SFP Bidirectional Transceiver Module is designed to be the most reliable and robust solution for optical transceivers. It utilizes a DDMI interface for enhanced performance and an LC connector for reliable, long-term connections. Additionally, its temperature range of -40℃ to +85℃ ensures that it can be used in a variety of applications and environments.
The SFP Bidirectional Transceiver Module is the perfect solution for data centers and enterprise networks looking for a reliable and robust optical transceiver. With its temperature range, DDMI interface, and LC connector, it is sure to meet all of your needs. Get the most reliable and robust solution for your data center today and take advantage of our 3-year warranty.
| Attribute | Value |
|---|---|
| Power Supply | 3.3V |
| Temperature Range | -40℃ ~+85℃ |
| Warranty | 3 Years |
| Wavelength | 1550nm/1490nm |
| DDMI | YES |
| Pluggable | Hot Pluggable |
| Product Name | SFP Bidirectional Transciver Module |
| Distance | 80km |
| Connector Type | LC |
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | |
| Transmitter | |||||||
| Centre Wavelength | λc | 1470 | 1490 | 1510 | nm | 1490nmTX/1550nmRX | |
| 1530 | 1550 | 1570 | nm | 1550nmTX/1490nmRX | |||
| Spectral Width*Note4 | ∆λ | 1 | nm | DFB-LD | |||
| Average Output Power | POUT | -1 | 5 | dBm | |||
| Extinction Ratio | ER | 8.2 | dB | ||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | ||||
| Output Optical Eye | Compliant with eye mask Telcordia GR-253-CORE and IEEE 802.3ah-2004 | ||||||
| Receiver | |||||||
| Centre Wavelength | λc | 1510 | 1570 | nm | 1490nmTX/1550nmRX | ||
| 1450 | 1510 | nm | 1550nmTX/1490nmRX | ||||
| Sensitivity*Note5 | PIN | -27 | dBm | ||||
| Receiver Overload | Overload | -3 | dBm | ||||
| Optical Return Loss | 12 | dB | |||||
| LOS Assert | LOSA | -35 | dBm | ||||
| LOS De-Assert | LOSD | -28 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
Optical fiber communication network: This optical module transmitter is suitable for long-distance transmission needs in optical fiber communication networks. It can transmit high-speed data, video and audio signals over fiber optic networks.
Optical fiber broadband access: In the optical fiber broadband access network, the optical module transmitter can be used to achieve long-distance access connections and transmit broadband signals to user terminals.
Remote monitoring and video transmission: This optical module transmitter can be used in remote monitoring systems and video transmission applications, supporting long-distance video signal transmission and monitoring data transmission.
Data center interconnection: In a data center environment, this optical module transmitter can be used to interconnect data center equipment spanning longer distances to achieve high-speed and long-distance data transmission.
Military and aerospace fields: Due to its long-distance transmission and wide operating temperature range, this optical module transmitter is suitable for communication and data transmission needs in the military and aerospace fields.
Customization:Transmission distance: Based on your actual needs, you can discuss with the manufacturer or supplier whether the transmission distance can be adjusted. If a longer transmission distance or a shorter transmission distance is required, the manufacturer may be able to provide a customized solution accordingly.
Wavelength: This optical module transmitter supports bidirectional transmission of 1550nm and 1490nm. If you require a different combination of wavelengths, you can discuss with the manufacturer whether a custom wavelength configuration can be provided.
Operating temperature range: The operating temperature range of this optical module transmitter is -40℃ ~ +85℃. If your application requires a wider or narrower operating temperature range, you can discuss with the manufacturer whether custom adjustments are possible.
Functional requirements: This optical module transmitter supports DDMI function and can provide digital diagnosis and monitoring interfaces. If you have other specific functional requirements, such as additional diagnostic capabilities or interface requirements, you can discuss with the manufacturer whether customization is possible.
We provide technical support and service for SFP Transciver Modules. Our support staff is available to answer any questions you may have about our products. We also offer training courses for our customers to ensure that they are knowledgeable about our products.
We provide troubleshooting assistance for any technical issues you may have with our SFP Transciver Modules. Our support staff is available 24/7 to provide help and advice. We also offer online support through our website, where customers can find answers to their questions quickly and easily.
We offer a warranty on our SFP Transciver Modules that covers any defects in materials or workmanship. If you experience any issues with our products, we will repair or replace them at no extra cost.
We have a team of experts who are dedicated to providing the highest quality of service for our customers. Our team is available to answer any questions you may have about our products and services.
Packaging and Shipping of SFP Transciver Module:
Reference Datasheet file code: DS100047
