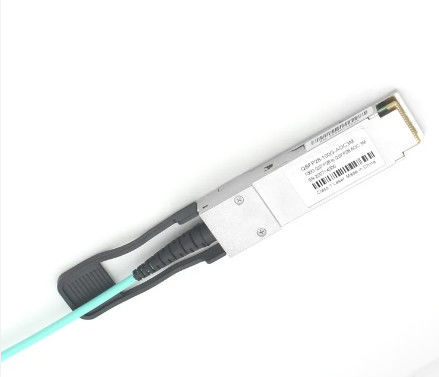

TAS-X5A3-85NCR High-Speed Data Transmission AOC Transceiver 5-70°C 25Gbps Data Rate
AOC Transceiver is a high-performance and reliable Automatic Optical Connector Transceiver with a wavelength of 850nm, operating temperature from -5°C to 70°C, and a maximum distance of 3m. It can achieve a data rate up to 25Gbps, delivering excellent performance and reliability for data center applications. AOC Transceiver is designed with advanced technology, offering superior power efficiency to reduce power consumption and cost. It is also easy to install and maintain, making it an ideal choice for today’s fast-paced data center applications. With its robust design and reliable performance, AOC Transceiver is a perfect choice for any data center deployment.
| Parameter | Value |
|---|---|
| Product Name | AOC Transceiver |
| Cable Type | Duplex |
| Operating Temperature | -5~70°C |
| Fiber Type | MMF |
| Data Rate | 25Gbps |
| Optical Interface | AOC (Automatic Optical Connector) |
| Fiber Mode | Multi-Mode |
| Wavelength | 850nm |
| Max Distance | 3m |
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Operating Case Temperature | Topc | -5 | - | 70 | ℃ | |
| Power Supply Voltage | VCC | 3.1 | - | 3.5 | V |
Data center: TAS-X5A3-85NCR optical module is suitable for high-density and high-bandwidth applications within data centers. It can be used to connect servers, storage devices and network switches, supporting data transfer rates up to 25Gbps. In data centers, it can provide fast and reliable connections to meet the demand for large-capacity data transmission.
Cloud computing: In a cloud computing environment, the TAS-X5A3-85NCR optical module can be used to connect cloud servers, virtualization devices and network infrastructure. It supports high-speed data transmission and provides efficient network connections and data processing capabilities for cloud computing applications.
High-performance computing: The TAS-X5A3-85NCR optical module is suitable for high-performance computing (HPC) environments, such as scientific research, weather forecasting, and financial analysis. It can achieve high-speed data transmission and low latency, supporting the processing of large-scale computing tasks and data processing needs.
Ultra-high-definition video transmission: TAS-X5A3-85NCR optical module can be used in ultra-high-definition video transmission applications, such as broadcasting, television production and entertainment fields. It provides high bandwidth and stable signal transmission, supporting the transmission and processing of high-resolution video and audio.
Remote monitoring and security: In remote monitoring and security systems, the TAS-X5A3-85NCR optical module can be used to connect cameras, monitoring equipment and monitoring centers. It provides high-speed data transmission and stable connection, supporting real-time video surveillance and data transmission.
Length: The length of the AOC optical module can be customized according to actual needs. According to the transmission distance requirements, AOC optical cables of different lengths can be customized to adapt to various application scenarios.
Data transmission rate: AOC optical modules can support different data transmission rates as needed, such as 10Gbps, 25Gbps, 40Gbps, 100Gbps, etc. According to actual needs, AOC optical modules with corresponding rates can be customized.
Interface type: AOC optical modules can be customized with different interface types to adapt to different equipment and application requirements. Common interface types include SFP, QSFP, CXP, etc., which can be customized according to specific requirements.
Fiber type: AOC optical modules can use different types of optical fibers as needed, such as single-mode fiber (Single-Mode Fiber) or multi-mode fiber (Multi-Mode Fiber). The specific choice depends on the transmission distance and bandwidth requirements.
Other special needs: According to specific application scenarios and needs, AOC optical modules can also be customized. For example, special shell design, protective coating, anti-interference ability, etc.
AOC Transceiver products should be stored in a dry, clean environment and must not be subjected to direct sunlight or excessive temperature or humidity.
All products should be packed in accordance with the following guidelines:
The products should be shipped using a reliable and cost-effective shipping service, such as UPS, FedEx, or DHL.
Reference Datasheet file code:DS180007 (100G 25G AOC)
