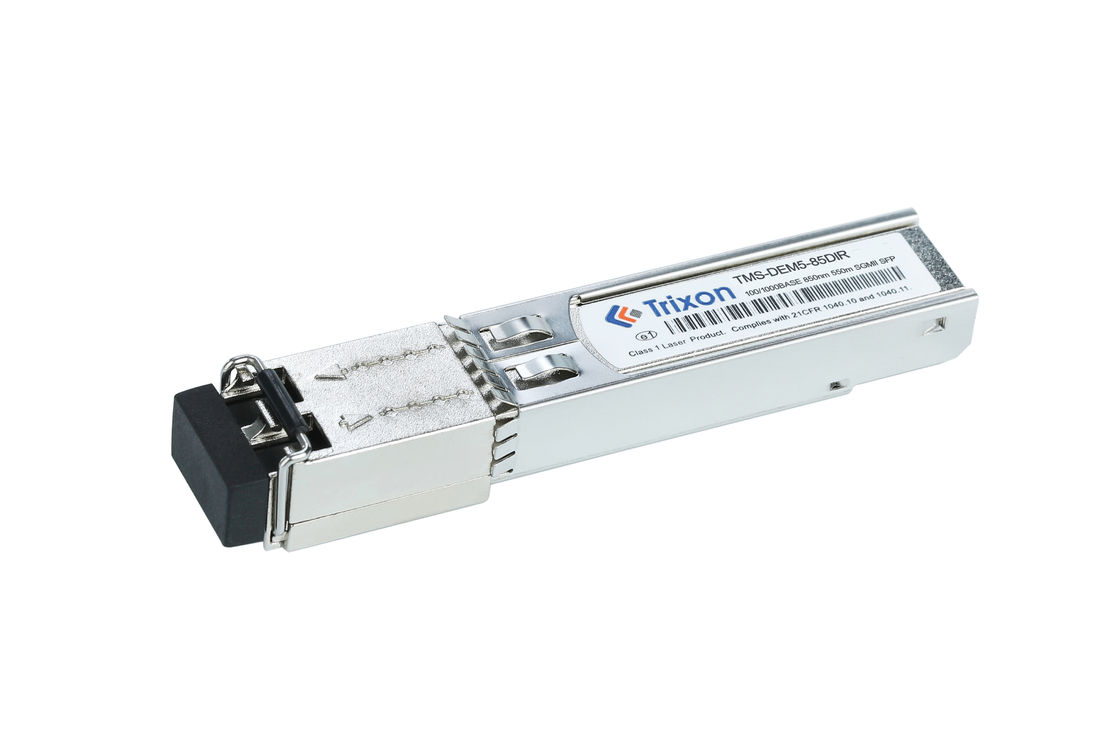

TMS-DRM5-85DIR industrial SGMII 1.25G 550m 850nm Serial-Gigabit-Medium-Interface-Transceiver for Extreme Environments
The Serial-Gigabit-Medium-Interface-Transceiver (SGMII Transceiver) is a high-performance, small-sized, hot-pluggable transceiver that provides a Serial Gigabit Medium Interface (SGMII) for high speed and low power applications. This SGMII Transceiver is designed to operate over an operating temperature range from -40℃ to 85℃ and is powered by a single 3.3V power supply. It supports data rates from 125 Mbps to 1.25 Gbps, providing a low power, low latency, low cost solution for both copper and fiber optic applications. This transceiver also features a hot-pluggable interface for easy installation and removal. In addition, SGMII Transceiver comes with a variety of operating modes, allowing the user to customize the transceiver for their specific application.
The SGMII Transceiver offers a low power, low latency, and low cost solution for high speed data rate applications. It is designed with a hot-pluggable interface for easy installation and removal, and supports a range of 125 Mbps to 1.25 Gbps data rates. This transceiver also features a variety of operating modes to accommodate different applications. With its high performance and small size, the SGMII Transceiver is an ideal solution for high speed, low power applications.
| Property | Value |
|---|---|
| Product Name | SGMII Transceiver |
| Interface Type | Serial-Gigabit-Medium-Interface (SGMII) |
| Power Supply | 3.3V |
| Data Rate | 1.25Gbps |
| Operating Temperature | -40℃ To 85℃ |
| Cable Length | 550m |
| Hot Pluggable | Yes |
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | |||
| Transmitter | |||||||||
| Centre Wavelength | λc | 830 | 850 | 870 | nm | ||||
| Spectral Width*Note4 | ∆λ | 0.85 | nm | VSCEL-LD | |||||
| Average Output Power | 100BASE | POUT | -9 | -3 | dBm | ||||
| 1000BASE | -9 | -3 | dBm | ||||||
| Extinction Ratio | ER | 9 | dB | ||||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | ||||||
| Output Optical Eye | Compliant with IEEE 802.3ah-2004 | ||||||||
| Receiver | |||||||||
| Centre Wavelength | λc | 830 | 860 | nm | |||||
| Sensitivity*Note5 | 100BASE | PIN | -17 | dBm | |||||
| 1000BASE | -24.5 | dBm | |||||||
| Receiver Overload | Overload | 0 | dBm | ||||||
| Optical Return Loss | 12 | dB | |||||||
| LOS Assert | 100BASE | LOSA | -45 | dBm |
|
||||
| 1000BASE | -35 | ||||||||
| LOS De-Assert | 100BASE | LOSD | -30 | dBm |
|
||||
| 1000BASE | -25 | ||||||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||||
Industrial automation: TMS-DRM5-85DIR can be used in industrial automation systems to connect industrial control equipment, sensors and monitoring devices. It has the characteristics of high temperature resistance, anti-vibration and anti-interference, and can provide reliable communication connections in harsh industrial environments, supporting real-time data transmission and remote control.
Intelligent Transportation Systems: This industrial-grade transceiver can be used in intelligent transportation systems to connect traffic lights, road surveillance cameras, and traffic data collection devices. It has strong environmental adaptability, can operate reliably in harsh climate conditions, and supports high-speed data transmission and real-time traffic monitoring.
Oil and Gas Industry: TMS-DRM5-85DIR is suitable for the communication needs of the oil and gas industry. It can be used to connect remote monitoring equipment, oil well sensors and data acquisition systems to achieve remote data transmission and monitoring, providing real-time data analysis and decision support for the industry.
High reliability applications: In applications requiring high reliability communications, such as the military, aerospace and nuclear power industries, the TMS-DRM5-85DIR transceiver can play a role. It has strong anti-interference capabilities and reliable data transmission, adapting to communication needs in extreme environments.
High-speed industrial network: This industrial-grade transceiver can be used to build high-speed industrial networks and connect industrial switches, routers and other network devices. It supports high-speed data transmission and low-latency communication, providing reliable network connections and efficient data transmission performance.
Connector Type: The transceiver can be customized to support different connector types such as LC, SC, or ST, depending on the requirements of your application or existing infrastructure.
Operating Temperature Range: If your application requires operation in extreme temperature conditions, you can discuss with the manufacturer or supplier to customize the transceiver to operate within specific temperature ranges.
Power Supply Options: Depending on your power supply infrastructure, you may need customization options for the transceiver's power requirements. This can include support for different voltage levels or power over Ethernet (PoE) compatibility.
Distance Support: The standard specification for the transceiver mentions a maximum distance of 550 meters. However, if you require support for longer distances, you can discuss customization options with the manufacturer to extend the reach of the transceiver.
Environmental Resilience: If your application involves harsh environments with high levels of humidity, dust, or other contaminants, you can explore customization options to enhance the transceiver's resilience and protection against such conditions.
Compliance with Industry Standards: Depending on your specific industry or application requirements, you may need the transceiver to comply with certain industry standards or certifications. You can discuss customization options with the manufacturer to ensure compliance with relevant standards
