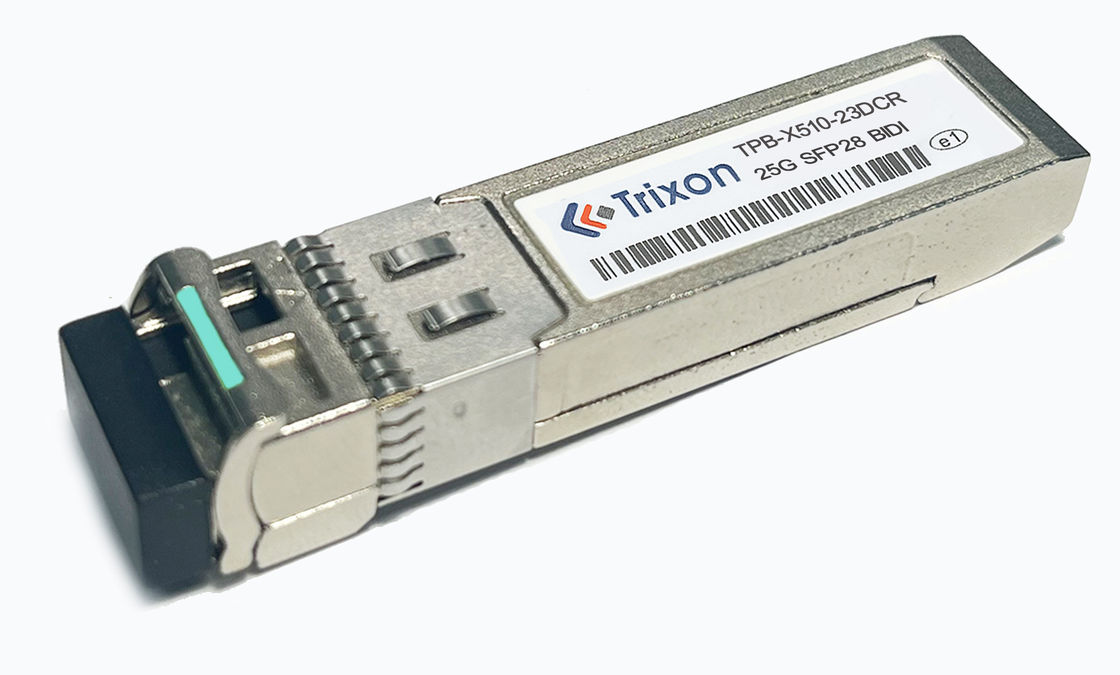

TPB-X510-23DCR BIDI TX1270nm,RX1310nm,High-Performance 25G SFP28 Transceiver with 10km Distance Capability
Introducing 25G SFP28 Optical Transceiver, the next generation of high-performance 25G optical transceivers designed to support 25G Ethernet and other communication standards. With an industry-leading wavelength of 1270nm on the TX side and 1310nm on the RX side, this transceiver is optimized for single-mode fiber (SMF) connections up to 10km distance, at data rates up to 25Gbps. It is designed for full-duplex operation and equipped with a standard LC connector interface.
This 25G SFP28 Optical Transceiver is specially designed for high-speed, long-distance communication applications, enabling customers to efficiently upgrade their existing network infrastructure while reducing power consumption. It is an ideal solution for data centers, enterprise networks, and telecom systems in need of high-speed, robust data transfer capabilities.
This 25G SFP28 Optical Transceiver is an excellent choice for high-performance networks that require low-power, long-distance, and high-speed transmission. With its superior performance and reliability, this transceiver is ideal for data-intensive applications such as 10G/25G Ethernet, Fibre Channel, and InfiniBand. It is also compatible with a wide range of 25G SFP28-based systems.
| Features | Specifications |
|---|---|
| 25G SFP28 Optical Transceiver | 25G |
| Wavelength | TX1270nm, RX1310nm |
| Data Rate | 25Gbps |
| Connector | LC |
| Fiber Type | SMF |
| Temperature Range | 0~70℃ |
| Voltage Supply | 3.3V |
| Product Name | 25G SFP28 Transceiver |
| DDM/DOM | Yes |
| Distance | 10km |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λt | 1320 | 1330 | 1350 | nm |
| Spectral Width(-20dB) | Pm | - | - | 1 | nm |
| Average Optical Power, each Lane | Pavg | -5 | - | +2 | dBm |
| TDP, each Lane | - | - | 3.2 | dB | |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Receiver | |||||
| Center Wavelength | Λr | 1290 | 1270 | 1280 | nm |
| Average Power at Receiver Input, each Lane | - | -13.3 | dBm | ||
| Receiver Overload | 0.5 | - | dBm | ||
| LOSS De-Assert | LOSd | - | -14 | dBm | |
| LOSS Assert | LOSa | -30 | - | dBm | |
| LOSS Hysteresis | 0.5 | - | dB | ||
Data Centers: The TPB-X510-23DCR transceiver can be used in data centers for high-speed fiber optic connectivity between network switches, routers, and servers. It enables reliable and efficient data transmission over a distance of up to 10km, supporting bandwidth-intensive applications and services.
Metropolitan Area Networks (MANs): In metropolitan networks, where data needs to be transmitted over longer distances within a city or urban area, the TPB-X510-23DCR transceiver can be deployed. It enables high-speed connectivity between different network nodes, facilitating the seamless exchange of data over extended distances.
Campus Networks: The transceiver is suitable for campus networks, such as university campuses or corporate environments. It can be utilized to connect different buildings or locations within a campus, enabling fast and reliable data transmission for various applications such as file sharing, video conferencing, and collaborative work.
Fiber-to-the-Home (FTTH): The TPB-X510-23DCR transceiver can find applications in fiber-to-the-home deployments. It allows for high-speed communication over long distances, enabling the delivery of high-bandwidth services, such as internet access, IPTV, and video streaming, to residential customers.
Telecommunication Networks: The transceiver can be used in telecommunication networks for connecting network equipment, including routers, switches, and optical transport systems. It supports high-speed data transmission and enables efficient communication between different network elements.
Transmission Distance: The standard TPB-X510-23DCR transceiver is designed for a transmission distance of 10km. If you require a longer or shorter transmission distance, customization options can be explored to meet your specific distance requirements. This may involve optimizing the transceiver's components, adjusting power levels, or incorporating specialized amplification techniques.
Wavelength: The TPB-X510-23DCR transceiver operates with a TX wavelength of 1270nm and an RX wavelength of 1310nm. If your application requires different wavelength specifications, customization options can be discussed. This may involve selecting alternative wavelengths within the capabilities of the transceiver or exploring wavelength-tunable options.
Connector Type: The TPB-X510-23DCR transceiver typically comes with a standard LC connector. However, if your network infrastructure requires a different connector type, such as SC or FC connectors, customization options can be explored to accommodate your preferred connector type.
Temperature Range: If your application operates in extreme temperature conditions, customization options can be discussed to ensure the transceiver's performance and reliability within the specific temperature range required.
Protocol Support: The TPB-X510-23DCR transceiver is designed for 25Gbps data transmission. If your application requires support for specific protocols, such as Ethernet, Fibre Channel, or InfiniBand, customization options can be explored to ensure compatibility with your desired protocols.
25G SFP28 Transceiver products offer technical support and services to meet all your needs. Our technical support team is highly experienced and knowledgeable in 25G SFP28 Transceiver products. Our technical support team is available to answer your questions and provide assistance with installation, configuration, troubleshooting, and other technical issues. Our services include but are not limited to:
25G SFP28 Transceiver product packaging and shipping:
The 25G SFP28 Transceiver product is packed in an ESD safe bag and then placed in a cardboard box. The box is then sealed with adhesive tape. The product is wrapped in bubble wrap and packed in a shipping box. The shipping box is then sealed with adhesive tape and marked with the appropriate shipping label. It is then ready to be shipped to the customer.
Reference Datasheet file code:DS090033 (25G BIDI LR)
