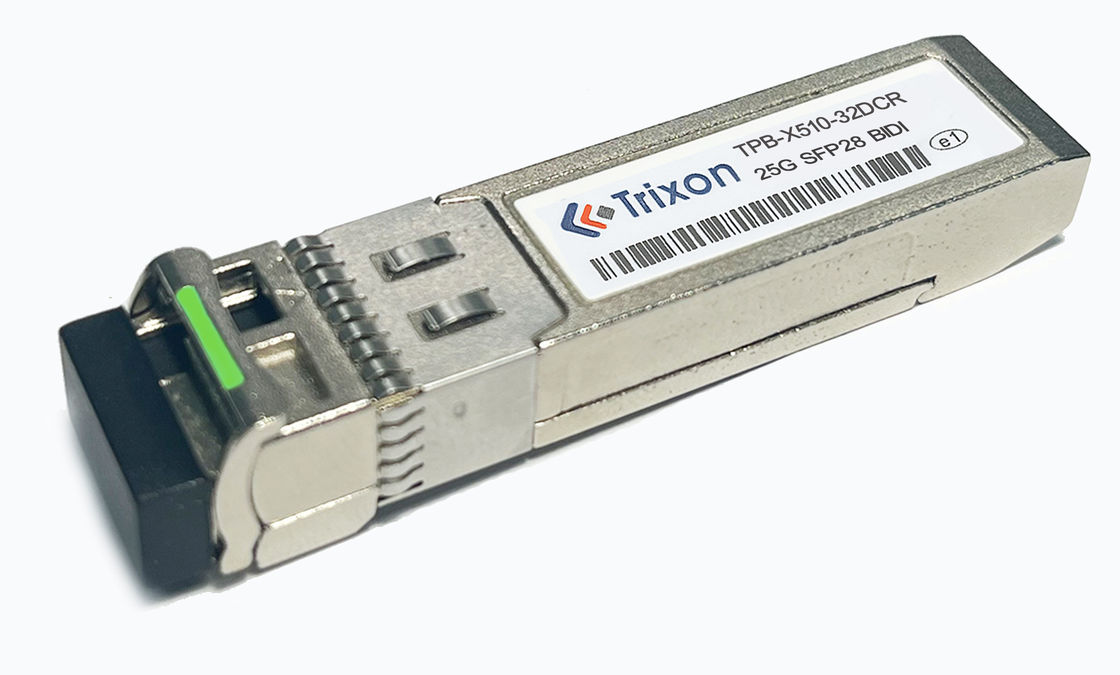

TPB-X510-32DCR BIDI 10km TX1310nm,RX1270nm 25G SFP28 Optical Transceiver with LC Connector - High-Speed 25Gbps Data
The 25G SFP28 Transceiver is a high performance, cost effective module supporting data rates up to 25Gbps and 10km transmission distance. It is designed for use in high-speed communication links that require 25Gbps data rate and up to 10km reach over single mode fiber. With a temperature range of 0 to 70℃, this transceiver is suitable for a wide variety of networking and data storage applications. It also features an LC connector for easy connection to equipment. This 25G SFP28 Optical Transceiver is the perfect choice for the most demanding applications, providing superior performance and reliability.
| Attribute | Specification |
|---|---|
| Product Name | 25G SFP28 Transceiver |
| Data Rate | 25Gbps |
| Wavelength | TX1310nm,RX1270nm |
| Fiber Type | SMF |
| Distance | 10km |
| Voltage Supply | 3.3V |
| Connector | LC |
| Temperature Range | 0~70℃ |
| DDM/DOM | Yes |
| BIDI | Yes |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λt | 1260 | 1270 | 1280 | nm |
| Spectral Width(-20dB) | Pm | - | - | 1 | nm |
| Average Optical Power, each Lane | Pavg | -5 | - | +2 | dBm |
| TDP, each Lane | - | - | 3.2 | dB | |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Receiver | |||||
| Center Wavelength | Λr | 1320 | 1330 | 1340 | nm |
| Average Power at Receiver Input, each Lane | - | -13.3 | dBm | ||
| Receiver Overload | 0.5 | - | dBm | ||
| LOSS De-Assert | LOSd | - | -14 | dBm | |
| LOSS Assert | LOSa | -30 | - | dBm | |
| LOSS Hysteresis | 0.5 | - | dB | ||
Data Centers: The TPB-X510-32DCR transceiver can be used in data centers for interconnecting switches, routers, and servers over long distances. It enables high-speed networking and supports bandwidth-intensive applications and services.
Metropolitan Area Networks (MANs): In metropolitan networks, where data needs to be transmitted over longer distances within a city or urban area, the TPB-X510-32DCR transceiver can be employed. It facilitates high-speed connectivity between different network nodes and helps in establishing reliable communication links.
Campus Networks: The transceiver can be used in campus networks to connect different buildings or locations within a university or corporate campus. It enables fast and efficient data transmission, supporting activities such as file sharing, video conferencing, and collaborative work.
Fiber-to-the-Home (FTTH): In FTTH deployments, where optical fiber is used to provide high-speed internet access to residential customers, the TPB-X510-32DCR transceiver can be used for long-distance data transmission. It supports high-speed connectivity for delivering internet and multimedia services to homes.
Telecommunication Networks: The TPB-X510-32DCR transceiver can find applications in telecommunication networks for connecting network equipment, such as routers, switches, and optical transport systems. It enables high-speed transmission of data and supports efficient communication between different network elements.
Transmission Distance: The standard TPB-X510-32DCR transceiver is designed for a transmission distance of 10km. If you have specific distance requirements that exceed the standard range, you can explore customization options to extend the transmission distance. This may involve optimizing the transceiver's components, using specialized optical components, or incorporating amplification techniques to support longer distances.
Wavelength: The TPB-X510-32DCR transceiver has a TX wavelength of 1310nm and an RX wavelength of 1270nm. However, if your application requires different wavelength specifications, you can discuss customization options with the manufacturer or supplier. They can provide guidance on the feasibility and availability of alternative wavelength configurations that suit your specific needs.
Connector Type: The TPB-X510-32DCR transceiver is equipped with an LC connector by default. However, if your network infrastructure requires a different connector type, such as SC or FC connectors, you can explore customization options to accommodate your preferred connector type.
Power Budget Optimization: Depending on your network setup and specific requirements, you may have unique power budget considerations. Customization options can be explored to optimize the transceiver's power budget, ensuring optimal performance and compatibility within your network environment.
Protocol Support: The TPB-X510-32DCR transceiver is designed for 25Gbps data transmission. If your application requires support for specific protocols, such as Ethernet, Fibre Channel, or InfiniBand, you can discuss customization options with the manufacturer or supplier to ensure compatibility with your desired protocols.
25G SFP28 Transceiver provides technical support and service for customers. Our technical support team is available 24 hours a day, 7 days a week to help you with any technical issues or questions that may arise. Our experienced technicians are knowledgeable in all aspects of the product and are available to answer any questions or help you troubleshoot any problems. We also provide a variety of online resources, such as product manuals, installation guides, product FAQs, and more.
Additionally, our customer service team is available to help you with any questions or concerns you may have. We can provide product information, help you place an order, or provide assistance with returns or exchanges. Our customer service representatives are always ready to help and are available to answer any questions or address any concerns you may have.
The 25G SFP28 Transceiver will be packaged in a static shielding bag. The bag will be sealed and labeled with the product description and relevant information. The product will then be shipped in a box or envelope with appropriate cushioning materials inside to ensure the product arrives in good condition.
The box or envelope will be labeled with the product description, the customer’s name, address, and contact information. The box or envelope will also include a copy of the customer’s invoice, order form, and any other relevant documents.
The 25G SFP28 Transceiver will be shipped via a reputable carrier. The carrier will provide tracking information for the shipment, and the customer will be notified when the product has been shipped and when it is expected to be delivered.
Reference Datasheet file code:DS090033 (25G BIDI LR)
