The Small Form-Factor Pluggable Plus (SFP+) Transceiver Module is a high-performance, cost-effective 10Gbps duplex optical transceiver designed for use in data centers, enterprise wiring closets, and service provider transport applications. This transceiver is compliant with the Multi-Source Agreement (MSA) SFF-8472 specification and provides reliable, high-speed data connections over duplex single-mode fiber with a maximum reach of up to 10km. It supports a wide range of wavelengths, including TX1310nm and RX1270nm, providing flexibility for different network applications. The SFP+ Transceiver Module is a compact and reliable solution for 10Gbps data transmission over optical fiber networks.
| Property | Value |
|---|---|
| Product Name | SFP+ Transceiver Module |
| Cable Type | Duplex |
| Data Rate | 10Gbps |
| Temperature Range | -5~70°C |
| DDM/DOM | Yes |
| Connector Type | LC |
| Compliant Code | MSA SFF-8472 |
| Distance | 40km |
| Wavelength | TX1310nm,RX1270nm |
| Fiber Type | Single-Mode |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1320 | 1330 | 1340 | nm |
|
Side Mode Suppression Ratio |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note6 | Pout | +1 | - | +6 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1260 | - | 1280 | nm |
| Receiver Sensitivity*note7 | SEN | - | - | -15 | dBm |
| Receiver Overload | Pmax | 0 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -18 | dBm |
| LOS Assert | LOSA | -30 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |

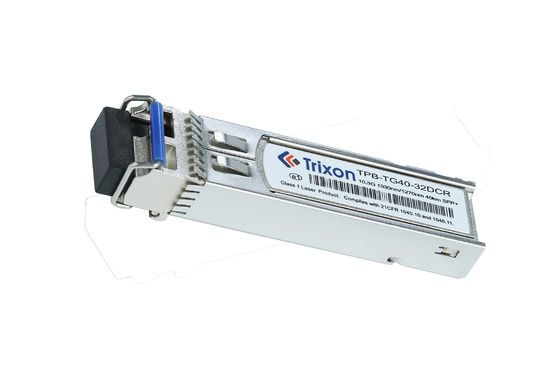

TPB-TG40-23DCR 10G 40km BIDI Duplex SFP+ commercial grade transceiver module is suitable for application scenarios that require high-speed, long-distance data transmission in commercial environments, such as data centers, enterprise networks, financial transactions, telecom operators and video surveillance, etc. .
We offer a customized service that can be tailored to your specific needs. Whether in terms of transmission distance, wavelength, power budget, digital diagnostic monitoring, connector type or protocol support, we can tailor it to your requirements. We are committed to providing you with the most suitable solutions to ensure high-speed, stable and reliable data transmission for your commercial or industrial applications. Please contact us and let's discuss customization options to meet your specific needs..
We offer an extensive range of technical support and services for our SFP+ Transceiver Modules. Our comprehensive services include:
Product Installation and Setup:
Troubleshooting and Technical Support:
Repair and Maintenance:
Software and Firmware Updates:
Replacement Parts:
Product Customization:
Packaging and Shipping for SFP+ Transceiver Module:
