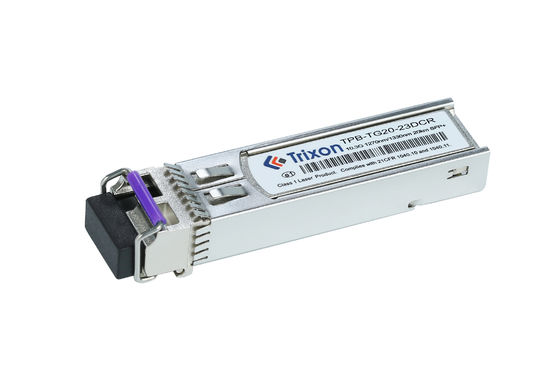

SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range

Negotiable
MOQ
Negotiable
Price
SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range
Features Gallery Product Description Request A Quote
Features
Specifications
Distance: 20km
Cable Type: Duplex
Wavelength: TX1270nm,RX1310nm
Fiber Type: Single-Mode
Connector Type: LC
Temperature Range: -5~70°C
Product Name: SFP+ Transceiver Module
Compliant Code: MSA SFF-8472
Basic Infomation
Place of Origin: CHINA
Brand Name: Trixon
Certification: UL,TUV,FCC,CE,ROHS
Model Number: SFP-10BL23-10C
Payment & Shipping Terms
Packaging Details: Negotiable
Delivery Time: Negotiable
Payment Terms: L/C D/P
Supply Ability: Negotiable
Product Description

Product Description:

Our SFP+ Transceiver Module, a Small Form-Factor Pluggable Plus Transceiver Module, is a high performance, cost-effective module supporting a data rate of 10 Gb/s. It supports a duplex cable type and single-mode fiber type, and also includes Digital Diagnostic Monitoring (DDM) and Digital Optical Monitoring (DOM) features. It is an ideal choice for high-speed, long-distance network, and data center applications. With its superior performance and reliable quality, our SFP+ Transceiver Module is the perfect solution for your network needs.



Features:

  • Parameter Value
    Product Name SFP+ Transceiver Module
    Wavelength TX1270nm, RX1310nm
    Cable Type Duplex
    DDM/DOM Yes
    Fiber Type Single-Mode
    Connector Type LC
    Distance 20km
    Data Rate 10Gbps
    Temperature Range -5~70°C
    Compliant Code MSA SFF-8472


Technical Parameters:

SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 0SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 1

Applications:

Data center interconnection: The TPB-TG20-23DCR module can be used for high-speed interconnection in data centers to connect switches, servers, storage devices, etc. to achieve fast and reliable data transmission and communication.

Wide Area Network (WAN) connection: Since this module supports a transmission distance of 20km, it is suitable for optical fiber connections between remote offices or branches and the headquarters to achieve reliable remote data transmission.

High-definition video transmission: The TPB-TG20-23DCR module can be used in high-definition video surveillance systems, connecting cameras and monitors, supporting real-time high-quality video transmission, and is suitable for security monitoring, video conferencing and other scenarios.

Telecom operator network: In the network of telecom operators, the TPB-TG20-23DCR module can be used for connections between optical transport network (OTN), fiber optic access network (FTTx) and other equipment to meet high-speed data transmission and long-distance communication needs.

Industrial automation: The industrial-grade features of this module make it suitable for industrial automation applications, and is used to connect industrial switches, PLCs, sensors and other equipment to achieve reliable data transmission and control.

Intelligent transportation system: The TPB-TG20-23DCR module can be used in intelligent transportation systems to connect traffic lights, surveillance cameras, traffic control equipment, etc., support real-time data transmission and signal control, and improve the efficiency and safety of the transportation system.



Customization:

  1. Connector Type: While the module comes with LC connectors by default, you can customize it to have different connector types such as SC, FC, or MPO, based on your specific network infrastructure requirements.

  2. Power Budget: The module is designed to support a 20km transmission distance. However, if you require a longer or shorter range, the module can be customized to optimize the power budget accordingly.

  3. Temperature Range: The module has a temperature range of -5~70°C. If your application requires operation in extreme temperature conditions, you can customize the module to support a wider temperature range or an extended temperature range to ensure reliable performance.

  4. Labeling and Branding: Customized labeling and branding options are available to align with your specific branding requirements or for ease of identification and management in large-scale deployments.



Support and Services:

SFP+ Transceiver Module Technical Support and Service

At Trixon, we understand the importance of reliable SFP+ transceiver module technology and offer comprehensive technical support and service for our customers.

Our experienced team of professionals is available to provide technical assistance, including troubleshooting, installation, and maintenance. We provide detailed instructions and step-by-step guides to ensure a smooth experience and successful operation.

In addition, our experts can provide on-site support to ensure that your SFP+ transceiver module is up and running quickly and correctly. We also offer regular maintenance services to ensure your system is always operating at its peak performance.

If you have any questions or need assistance with your SFP+ transceiver module, please do not hesitate to contact us. We are here to help and ensure that your SFP+ transceiver module is always functioning properly.



Packing and Shipping:

Packaging and Shipping for SFP+ Transceiver Module:

The SFP+ Transceiver Module is carefully packaged in an ESD-compliant bubble wrap bag, and then placed in a static-shielded box for shipping. The box is further protected by bubble wrap and cardboard to ensure the product arrives undamaged.

Reference Datasheet file code:DS100037 (10G BIDI)

SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 2SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 3SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 4SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 5SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 6SFP-10BL23-10C BIDI 10G 20km TX1270nm,RX1310nmLC Connector SFP+ Transceiver Module -5~70°C Temperature Range 7
