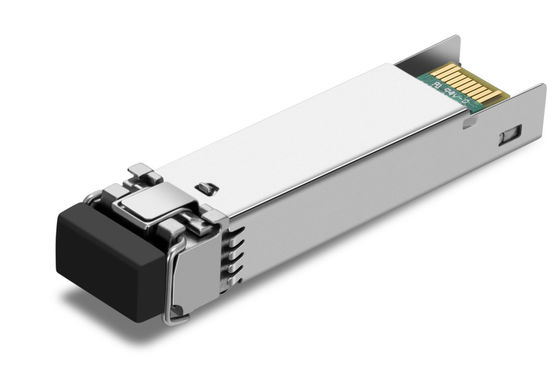

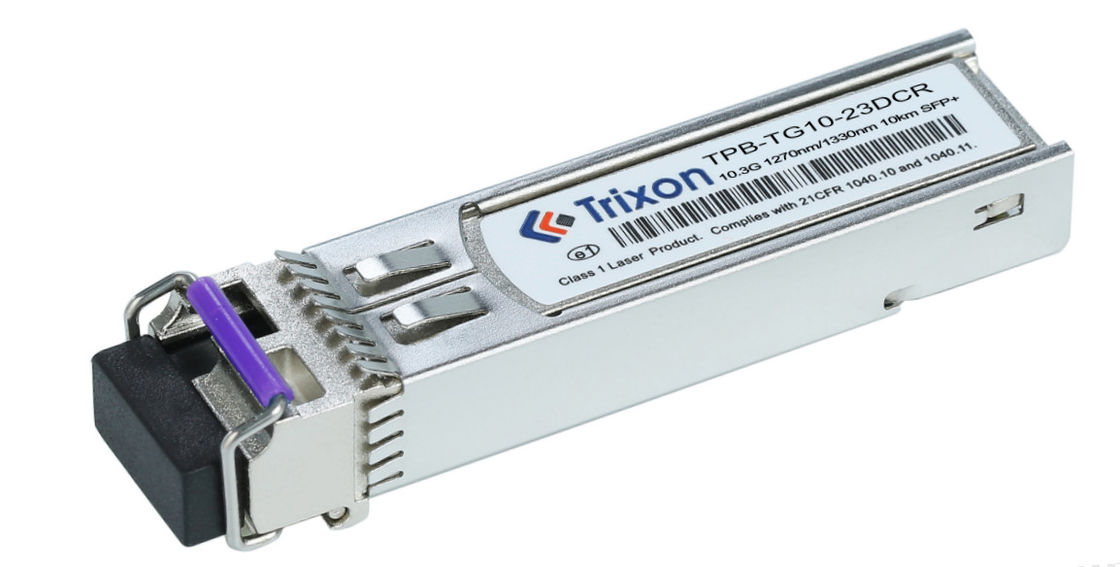

TPB-TG10-32DIR Industrial 10G BIDI 10km SFP+ Transceiver Module Duplex Single-Mode TX1310nm/RX1270nm
The SFP+ Transceiver Module is a small form-factor pluggable plus (SFP+) transceiver module, which can support data rates of up to 10Gbps, and reach distances up to 10km. It features a small form-factor pluggable (SFP) connector type and has digital diagnostics monitoring (DDM) or digital optical monitoring (DOM) capability. The SFP+ Transceiver Module is ideal for high speed, long distance network applications.
| Connector Type | Product Name |
|---|---|
| LC | SFP+ Transceiver Module |
| Data Rate | Wavelength |
| 10Gbps | TX1310nm/RX1270nm |
| Fiber Type | Temperature Range |
| Single-Mode | -40~85°C |
| DDM/DOM | Compliant Code |
| Yes | MSA SFF-8472 |
| Cable Type | Distance |
| Duplex | 10km |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1320 | 1330 | 1340 | nm |
|
Side Mode Suppression Ratio |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note6 | Pout | -5 | - | 0 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1260 | - | 1280 | nm |
| Receiver Sensitivity*note7 | SEN | - | - | -14 | dBm |
| Receiver Overload | Pmax | 0 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -18 | dBm |
| LOS Assert | LOSA | -30 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Industrial automation: TPB-TG10-32DIR module can be used in industrial automation systems for high-speed data transmission and communication. It can connect devices such as industrial switches, PLCs (programmable logic controllers), sensors and actuators to support reliable data transmission and real-time control.
Internet of Things (IoT): In industrial IoT applications, the TPB-TG10-32DIR module can be used to connect sensors and equipment to achieve data collection and remote monitoring. It supports high-bandwidth data transmission and is suitable for IoT connectivity needs in industrial environments.
Energy and Power Systems: The TPB-TG10-32DIR module can be used for communication and monitoring of energy and power systems. It can connect power sensors, metering equipment and monitoring systems, supporting high-speed data transmission and remote monitoring to improve energy efficiency and monitor the operating status of the power system.
Railway and transportation systems: In railway and transportation systems, the TPB-TG10-32DIR module can be used for high-speed data transmission and communication. It can connect signaling systems, surveillance cameras, train control systems and other equipment to support real-time data transmission and signal control to ensure safe and efficient operations.
Industrial network expansion: The TPB-TG10-32DIR module can be used to extend the range of fiber optic connections in industrial networks. It can connect different industrial switches, industrial routers and industrial equipment to achieve network scalability and reliability.
Transmission distance: Modules that support longer or shorter transmission distances can be customized according to your specific network needs. For example, it can be optimized to accommodate shorter range applications, or the transmission range can be extended to meet longer range requirements.
Wavelength: The wavelengths currently used by the module are TX1310nm and RX1270nm. However, if you have specific wavelength needs, such as different BIDI configurations, it can be customized to meet your requirements.
Connector Type: This module uses LC connectors but can be customized with other connector types such as SC or MPO connectors based on the requirements of your network equipment and infrastructure.
Labeling and Branding: Consider customized labeling and branding to match your specific branding needs or to facilitate identification and management in large-scale deployments.
Temperature Range: Modules can be customized to operate within specific temperature ranges based on environmental conditions, such as extended temperature or industrial grade options to accommodate harsh operating environments.
Protocol Support: This module is designed to support data rates of 10Gbps. However, it can be customized to support specific protocols such as Ethernet, Fiber Channel, or InfiniBand based on your application needs.
Packaging and Shipping of SFP+ Transceiver Module:
