| Brand Name: | Trixon |
| Model Number: | TPB-TG10-23DCR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |
Our Small Form-Factor Pluggable Plus (SFP+) Transceiver Module is a reliable and efficient optical networking device designed to meet the high-speed requirements of modern networks. This module is compliant with the Multi-Source Agreement (MSA) SFF-8472 standard and provides up to 10km of single-mode fiber distance. It is equipped with an LC connector type and supports Digital Diagnostic Monitoring (DDM/DOM) for superior performance. This transceiver module also delivers high-speed data rate of up to 10 Gigabits per second (Gbps), enabling you to easily and quickly transfer large amounts of data over a single connection. This module is ideal for use in data centers, enterprise networks, and other applications requiring high-speed fiber optic connectivity.
| Attribute Name | Attribute Value |
|---|---|
| Connector Type | LC |
| Fiber Type | Single-Mode |
| Cable Type | Duplex |
| Data Rate | 10Gbps |
| Product Name | SFP+ Transceiver Module |
| Distance | 10km |
| DDM/DOM | Yes |
| Compliant Code | MSA SFF-8472 |
| Wavelength | TX1270nm,RX1310nm |
| Temperature Range | -5~70°C |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1260 | 1270 | 1280 | nm |
|
Side Mode Suppression Ratio |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note6 | Pout | -5 | - | 0 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1320 | - | 1340 | nm |
| Receiver Sensitivity*note7 | SEN | - | - | -14 | dBm |
| Receiver Overload | Pmax | 0 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -18 | dBm |
| LOS Assert | LOSA | -30 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |

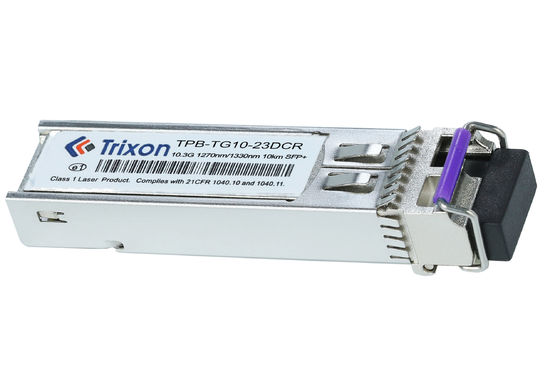

The Trixon TPB-TG10-23DCR SFP+ optical module is an economical solution for data centers, enterprises, and storage systems. It is designed to offer reliable and high-performance transmission for critical applications. The module supports hot-pluggable operation, allowing users to easily replace the optical module without powering off the device. Additionally, it has low power consumption, making it well-suited for power-sensitive application scenarios.
Transmission Distance: The Trixon TPB-TG10-23DCR SFP+ module can be tailored to support varying transmission distances, whether shorter or longer, to meet your specific networking requirements.
Wavelength: The module currently operates using TX1270nm and RX1310nm wavelengths. However, customization is available to accommodate different wavelength configurations, including various BIDI setups, to align with your needs.
Connector Type: While the module is equipped with LC connectors, customization options exist to adapt it to different connector types such as SC or MPO connectors, depending on your networking equipment and infrastructure.
Labeling and Branding: Custom labeling and branding choices can be considered to align the module with your specific branding requirements or for facilitating easy identification and management in extensive deployments.
Temperature Range: The module can be customized to operate within specific temperature ranges, making it suitable for varying environmental conditions. This includes options for extended temperature ranges or industrial-grade specifications to withstand harsh operating environments.
Protocol Support: While the module is designed to support 10Gbps data rates, customization can be implemented to support particular protocols like Ethernet, Fibre Channel, or InfiniBand, based on your application requirements.
We offer technical support and service for SFP+ Transceiver Module products, including:
For more information about our technical support and service for SFP+ Transceiver Module products, please contact us.
Packaging:
Shipping:
|
|
