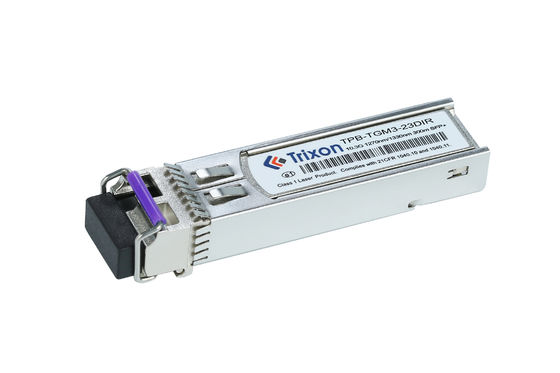

TPB-TGM3-23DIR Industrial BIDI 300m TX1270nm,RX1310nm SFP+ Transceiver Module with DDM/DOM Temperature Range-40~85°C
The SFP+ Transceiver Module is a Small Form-Factor Pluggable Plus Transceiver Module designed for 10Gbps data rate over a distance of 300m with a duplex cable. The module operates in a temperature range of -40 to 85°C, with a transmission wavelength of 1270 nm and a receiving wavelength of 1310 nm.
| Product Name | SFP+ Transceiver Module |
| Compliant Code | MSA SFF-8472 |
| Fiber Type | Single-Mode |
| Connector Type | LC |
| Wavelength | TX: 1270nm, RX: 1310nm |
| Data Rate | 10Gbps |
| Maximum Distance | 300m |
| Cable Type | Duplex |
| DDM/DOM Support | Yes |
| Temperature Range | -40°C to 85°C |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1260 | 1270 | 1280 | nm |
|
Side Mode |
SMSR | 30 | - | - | dB |
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Average Output Power*note3 | Pout | -8 | - | 0 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Average Power of OFF Transmitter | Pout-off | - | - | -30 | dBm |
| Transmitter Dispersion Penalty | TDP | - | - | 2 | dB |
| Relative Intensity Noise | RIN | - | - | -128 | dB/Hz |
| Output Optical Eye | Compliant with IEEE802.3ae-2005 | ||||
| Receiver | |||||
| Centre Wavelength | λc | 1320 | - | 1340 | nm |
| Receiver Sensitivity*note4 | SEN | - | - | -9 | dBm |
| Receiver Overload | Pmax | 0 | - | - | dBm |
| LOS De-Assert | LOSD | - | - | -10 | dBm |
| LOS Assert | LOSA | -20 | - | - | dBm |
| LOS Hysteresis | LOSH | 0.5 | - | 4 | dB |
Data rate: Please provide the required data rate, such as 10Gbps, 25Gbps, etc.
Compliance Code: If there are specific compliance codes or certification requirements, please provide that information.
Maximum transmission distance: If a specific transmission distance is required, please provide the required maximum transmission distance.
Cable Type: If there are specific cable type requirements, such as twisted pair, multimode fiber, etc., please provide that information.
DDM/DOM support: If you need support for the digital diagnostic monitoring function, please confirm whether this function is required.
Temperature Range: If there is a specific operating temperature range requirement, please provide the required temperature range.
