| Brand Name: | Trixon |
| Model Number: | TSB-1202-35DCR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |

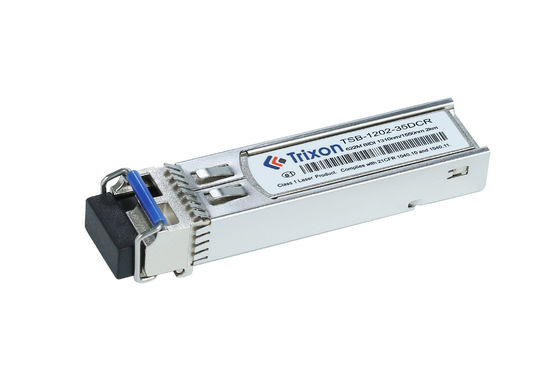

Our high performance 1.25G SFP Transceiver Module is designed to transmit and receive optical data over single mode fiber. With a wavelength of T-1310nm and R-1550nm, it provides a data rate of up to 622M and supports DDM. It is equipped with an LC connector and comes with a 3-year warranty. It also has a wide operating temperature range from -5℃ to +70℃, making it reliable and suitable for a variety of applications.
| Attribute | Value |
|---|---|
| Product Name | BIDI SFP Transciver Module |
| Connector Type | LC |
| Mode | Single Mode |
| Wavelength (Tx/Rx) | T-1310nm/R1550nm |
| Data Rate | 622M |
| Distance | 2km |
| Power Supply | 3.3V |
| DDM/DDMI | Yes/DDM |
| Pluggable | Hot Pluggable |
| Warranty | 3 Years |
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | 1310nmTX/1550nmRX | ||
| Spectral Width*Note4 | ∆λ | 4 | nm | FP-LD | ||||
| Average Output Power | POUT | -15 | -8 | dBm | ||||
| Extinction Ratio | ER | 8.2 | dB | |||||
| Average Power of OFF Transmitter | POFF | -45 | dBm | |||||
| Output Optical Eye | Compliant with ITU-T G.957 | |||||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1500 | 1550 | 1580 | nm | 1310nmTX/1550nmRX | ||
| Sensitivity*Note5 | PIN | -28 | dBm | |||||
| Receiver Overload | Overload | -8 | dBm | |||||
| Optical Return Loss | 12 | dB | ||||||
| LOS Assert | LOSA | -45 | dBm | |||||
| LOS De-Assert | LOSD | -30 | dBm | |||||
| LOS Hysteresis | 0.5 | dB | ||||||
The TSB-1202-35DCR module can be widely used in the field of optical fiber communications, including data centers, telecom operators, enterprise networks and transmission networks. It can be used for optical fiber connection, data transmission and network expansion, providing high-speed and stable signal transmission to meet the needs of different application scenarios.
SFP Transciver Module Technical Support and Service
We provide a range of technical support and service for SFP Transciver Module, including:
If you have any questions about SFP Transciver Module, please don't hesitate to contact us. We are here to help you.
All SFP Transciver Modules will be carefully packaged and shipped using the highest quality materials.
The modules are packaged in static-resistant boxes with bubble wrap to protect the components from any damage.
The items are then shipped with a carrier that offers tracking and insurance to ensure they arrive safely and quickly.
|
|
