| Brand Name: | Trixon |
| Model Number: | TSC-GE20-XXDCR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |

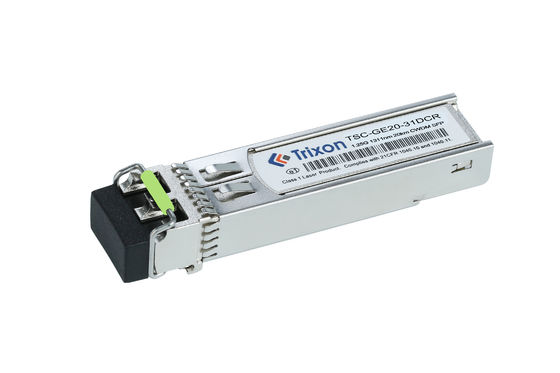

The SFP CWDM Transceiver Module is a cost-effective and high-performance solution for achieving data rates of up to 1.25G in various networking applications. It enables the implementation of fiber optic data links and is compatible with both single mode and multimode fiber. The module supports DDM (Digital Diagnostic Monitoring) function, allowing for advanced monitoring capabilities.
Featuring a wavelength range spanning from 1270nm to 1610nm, this transceiver module is specifically designed for 1310nm single mode fiber applications. It operates reliably in extreme environments, with a wide temperature range of 0℃ to 70℃. Additionally, it comes with a 3-year warranty, ensuring its long-term reliability and providing users with peace of mind.
In summary, the SFP CWDM Transceiver Module is an excellent choice for enhancing network performance, offering a reliable and cost-effective solution for a wide range of networking needs.
| Attribute | Value |
|---|---|
| Product Name | SFP Transciver Module |
| Connector Type | LC |
| Data Rate | 1.25G |
| Temperature Range | 0℃~70℃ |
| Power Supply | 3.3V |
| Pluggable | Hot Pluggable |
| Wavelength | 1270 Nm-1610 Nm |
| DDMI | DDM |
| Warranty | 3 Years |
| Parameter | Symbol | Min | Typ. | Max | Unit | Note | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | XX-6.5 | XX | XX+6.5 | nm | XX:Note1 | ||
| Spectral Width*Note4 | ∆λ | 1 | nm | |||||
| Average Output Power | POUT | -9 | 0 | dBm | ||||
| Extinction Ratio | ER | 8.2 | dB | |||||
|
Side Mode Suppression |
SMSR | 30 | dB | |||||
|
Average Power of OFF Transmitter |
POFF | -45 | dBm | |||||
| Output Optical Eye | Compliant with IEEE 802.3ah-2004 | |||||||
Receiver
| Centre Wavelength | λc | 1100 | 1650 | nm |
| Sensitivity*Note5 | Pin | -24 dBm ST | ||
| Receiver Overload | Overload | 0 | dBm | |
| Optical Return Loss | 12 | dB | ||
| LOS Assert | LOSA | -35 | dBm | |
| LOS De-Assert | LOSD | -23 | dBm ST | |
| LOS Hysteresis | 0.5 | 4 | dB | |
SFP Transceiver Modules are packed in shock-proof and moisture-proof packing materials and shipped in secure boxes. The box is labeled with the product name, model number, shipping address and special instructions. The packaging also includes a small card that contains information about the product and instructions for use. The boxes are then sealed and shipped by air or land depending on the customer's preference.
|
|
