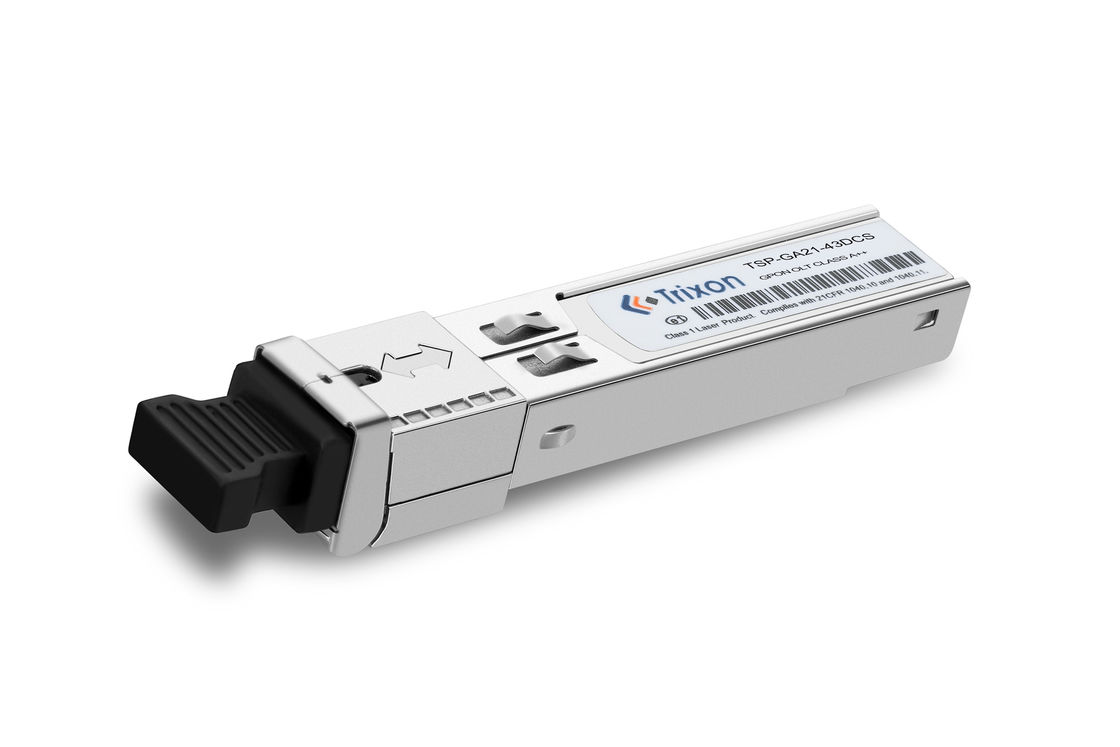

The TSP-GA21-43DCS transceiver is small form factor pluggable module for serial optical data communications such as ITU-T G.984. It is with the SFP 20-pin connector to allow hot plug capability.
This module is designed for single mode fiber and operates at a nominal wavelength of 1490 nm.
The transmitter section uses a 1490nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825.
Technical Parameters:
Performance Specifications – Optical
| Parameter | Symbol | Min | Typ. | Max | Unit |
| 9μm Core Diameter SMF | 20 | Km | |||
| Data Rate |
TX 2.488 RX 1.244 |
Gbps | |||
| Transmitter | |||||
| Centre Wavelength | λC | 1480 | 1490 | 1500 | nm |
| Spectral Width (-20dB) | Δλ | 1 | nm | ||
| Average Output Power | AOP | -4 | 0 | dBm | |
| Extinction Ratio | ER | 8.2 | dB | ||
| Average Power of OFF Transmitter | -39 | dBm | |||
| Transmitter Dispersion Penalty | TDP | 1 | dB | ||
| Output Optical Eye | Compliant with ITU-T G.984.2 | ||||
| Receiver | |||||
| Centre Wavelength | 1260 | 1310 | 1360 | nm | |
| Sensitivity*note3 | SEN | -22 | dBm | ||
| Receiver Overload | SAT | 0 | dBm | ||
| Optical Return Loss | -20 | dB | |||
| SD De-Assert | -32 | dBm | |||
| SD Assert | -45 | dBm | |||
| SD Hysteresis | 0.5 | 4 | dB | ||
This module is suitable for GPON networks, fiber optic access networks (FTTH) and other optical communication application scenarios that require single fiber transmission, long-distance transmission and high reliability.
