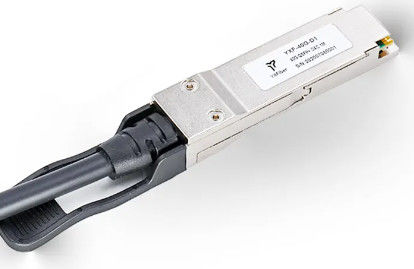

Trixon passive SFP+ Direct attach copper cable assembly products isa low cost alternative for shortreach applications. The design allows for a serial data transmission up to 12Gbps in each direction. The passive design has no signal amplification in the cable assembly. Electronic Dispersion Compensation (EDC) is typically used on host board designs when passive coppercable assemblies are utilized. EDC allows for an extended length of passive cable assemblies.EEPROM signature enablesthe host to differentiate between a passive copper cable assembly and a fiber optic module. The mechanical design of the braid crimp and EMI skirt ensure that EMI radiation is sufficiently suppressed. Additionally, the copper cable acts as a natural heat sink. The low power consumption assists in making the passive copper cable assembly an economic solution for within rack or rack to rack applications.
| Feature | Description |
| Operating Data Rate | 10M~12Gbps |
| Power Level | 15 mW per cable end |
| Connector Interface | Duplex LC Connector |
| Differential Impedance | 100 Ohm |
| Retractable Pin Latch | Yes |
| EEPROM Signature | Yes |
| Pull to Release Latch Design | Yes |
| Cable Braid Crimp | 360° crimp |
| Compatibility | Compatible with SFF-8431 |
| Operating Case Temperature Range | Standard: -5℃ to +70℃ |
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Operating Case Temperature | TC | -20 | - | 70 | °C | |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.47 | V | |
| Power Disspation | P | - | - | 15 | mW | |
| Bit Rate | - | 10.3125 | - | Gbps | ||
| I2C Clock Frequency | fcl | - | - | 400 | kHz |
Technical Support: Trixon offers technical assistance to customers for troubleshooting, installation guidance, and resolving any product-related issues. Their technical support team is knowledgeable and experienced in their products and can provide prompt assistance.
Warranty: Trixon provides warranty coverage for their products, ensuring that customers receive reliable and high-quality cable assemblies. The specific terms and duration of the warranty may vary, so it's recommended to check the warranty information provided by Trixon for the specific product.
Product Documentation: Trixon provides comprehensive product documentation, including datasheets, user manuals, and installation guides. These resources provide detailed information about the product's features, specifications, and usage instructions, helping customers effectively utilize the cable assemblies.
Customization: Trixon offers customization options to meet specific customer requirements. They can provide tailored solutions, such as customized cable lengths or connector configurations, based on customer needs.
Training and Education: Trixon may provide training and educational resources on their products, ensuring that customers have a clear understanding of the cable assemblies' capabilities, installation procedures, and best practices for optimal performance.
Product Upgrades and Enhancements: Trixon continuously works on improving their products and may release upgrades or enhancements to existing cable assemblies. They may communicate these updates to customers and provide guidance on adopting the latest advancements.
Trixon ensures the safe delivery of their products through proper packaging, including sturdy boxes and protective materials. They use reliable shipping methods, provide tracking services, and comply with international shipping regulations for smooth customs clearance. Customers can expect their Trixon products to be well-protected and delivered in a timely manner.
