| Brand Name: | Trixon |
| Model Number: | TQS-FG10-31DCR |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Payment Terms: | L/C D/P |

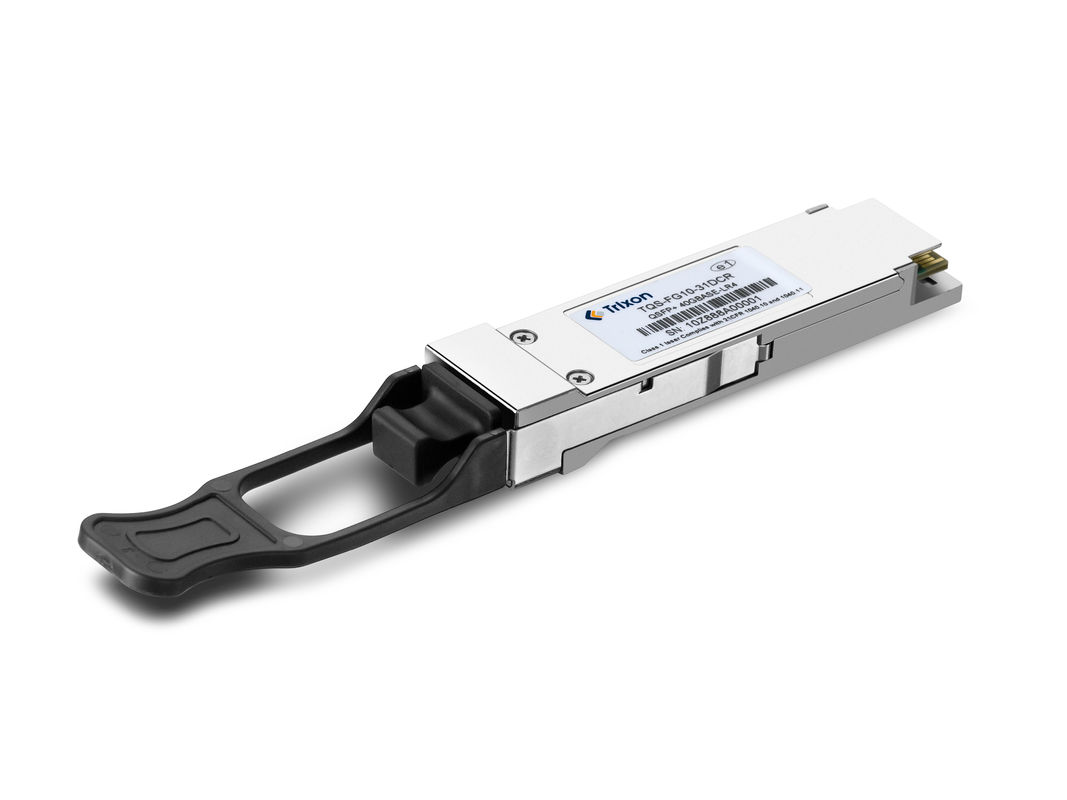

This is a 40Gbps high-speed optical module, designed with 4 Lanes, each Lane is 10Gbps, and supports a maximum transmission distance of 10 kilometers.
The product uses 4 1310nm DFB lasers as the transmitter, and 4 PIN photodiodes as the receiver to achieve stable 40G optical signal transmission.
The module is compatible with the QSFP+ specification and provides two pairs of optical fiber interfaces. It supports full-duplex communication and is suitable for high-speed point-to-point connection scenarios.
| Features | Specifications |
| Data Rate | Up to 11.2Gbps per wavelength |
| Channels | 4 independent full-duplex channels |
| Distance | Up to 10km |
| Power Supply | Single 3.3V |
| Optical Connectors | Two standard LC connectors |
| Hot Pluggable | QSFP+ |
| MSA Specification | QSFP+ MSA SFF-8436 |
| IEEE Compliance | IEEE802.3ba |
| Digital Diagnostic Monitoring | Integrated with I2C interface |
| Operating Case Temperature Range | Standard: 0℃ to +70℃ |
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Centre Wavelength | λc | 1264.5 | 1271 | 1277.5 | nm |
| 1284.5 | 1291 | 1297.5 | |||
| 1304.5 | 1311 | 1317.5 | |||
| 1324.5 | 1331 | 1337.5 | |||
| Spectral Width (-20dB) | Δλ | - | - | 1 | nm |
| Transmitter Signal Rate | 10.3125 | Gbps | |||
| SMSR | 30 | dB | |||
| TDP, each Lane | TDP | 2.6 | dB | ||
| Optical Return Loss Tolerance | TOL | 20 | dB | ||
| Average Output Power | Pout | -7 | - | 2.3 | dBm |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Output Optical Eye | Compliant With IEEE Std 802.3ba-2010 | ||||
It is commonly used in high-bandwidth data centers, enterprise networks, and cloud computing environments to transfer large amounts of data quickly.
The Transceiver Module is securely packaged in anti-static material, labeled, and sealed. It includes a packing list and is shipped with tracking and signature confirmation for added security.
|
|
