80km SFP+ BIDI Transceiver 10.3Gbps Long Reach

SFP+ Transceiver Module
December 23, 2025
Category Connection: SFP+ Transceiver Module
Chat Now Contact Us
Tags:
#SFP+ Transceiver Module #10gbe SFP+ transceiver #sfp+ module
Brief: Follow along for a hands-on demonstration that highlights performance points of the TPB-TG80-54DCR SFP+ transceiver. In this video, you'll see how this 10.3Gbps bidirectional module achieves reliable 80km data transmission, explore its digital diagnostic monitoring capabilities, and learn about its applications in data centers and metropolitan networks.
Related Product Features:
  • Supports 10.3Gbps bidirectional data communication over optical fiber with up to 80km transmission distance.
  • Compliant with SFP+ Multi-Source Agreement (MSA) standard SFF-8431 for universal compatibility.
  • Features built-in serializer/deserializer (SerDes) interface and fiber optic transmit/receive functions.
  • Hot-swappable design allows for easy installation and replacement without system shutdown.
  • Includes digital diagnostic monitoring and serial ID functions accessible via 2-wire serial interface.
  • Operates with single 3.3V power supply and TTL logic interface for efficient performance.
  • RoHS compliant and lead-free, meeting environmental directive requirements.
  • Ideal for data center interconnects, metropolitan networks, and high-speed data transmission applications.
FAQs:
  • What is the maximum transmission distance of this SFP+ transceiver?
    The TPB-TG80-54DCR SFP+ transceiver supports transmission distances of up to 80 kilometers over optical fiber, making it suitable for long-reach applications in metropolitan area networks and data center interconnects.
  • What wavelengths does this bidirectional transceiver use?
    This BIDI transceiver operates with 1550nm transmit/1490nm receive or 1490nm transmit/1550nm receive wavelengths, enabling bidirectional communication over a single fiber strand.
  • Does this transceiver support digital diagnostic monitoring?
    Yes, it features comprehensive digital diagnostic monitoring capabilities that are compatible with SFF-8472, allowing real-time monitoring of parameters like temperature, voltage, and optical power through the standard 2-wire serial interface.
  • What applications is this transceiver suitable for?
    This transceiver is ideal for data center server and switch interconnections, metropolitan area networks, HD video transmission systems, network security devices, storage networks, and telecommunications equipment such as OLT and OTN interconnections.
Related Videos
New Banner 01:01

New Banner
Other Videos
December 04, 2024

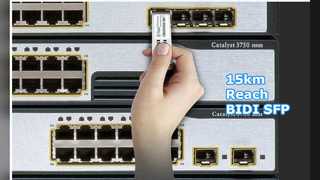

2.5G BIDI SFP 15km 1310nm 1550nm Transceiver 00:06

2.5G BIDI SFP 15km 1310nm 1550nm Transceiver
SFP Transceiver Module
December 23, 2025
2.5G BIDI SFP 15km Transceiver Module 00:06

2.5G BIDI SFP 15km Transceiver Module
SFP Transceiver Module
December 23, 2025
2.5G BIDI SFP 20km LC Transceiver 00:06

2.5G BIDI SFP 20km LC Transceiver
SFP Transceiver Module
December 23, 2025

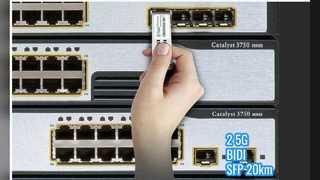

2.5G BIDI SFP 20km Transceiver Module 00:06
