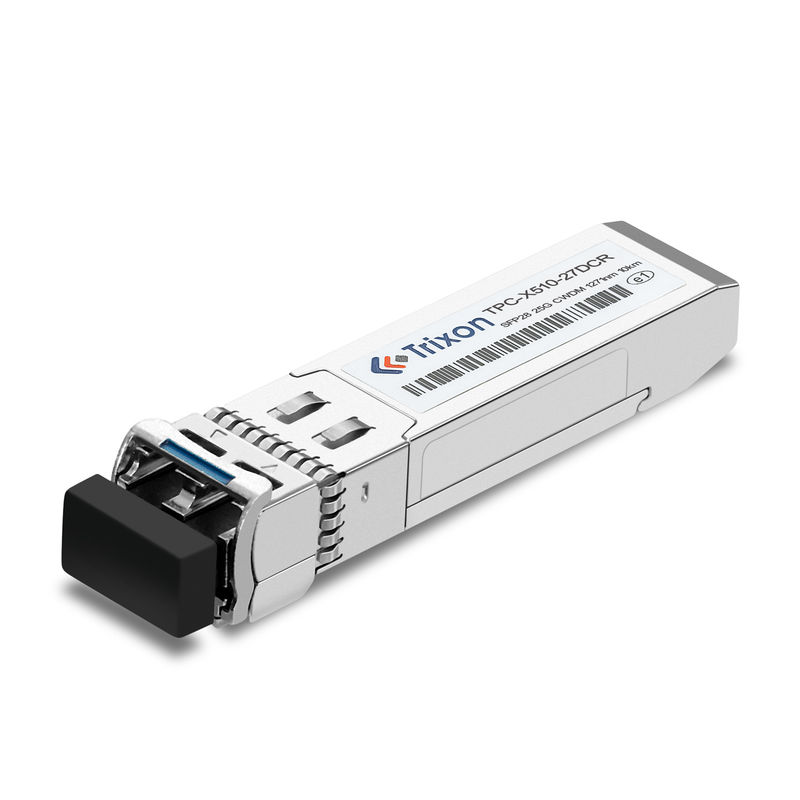

25G SFP28 Optical Transceiver CWDM-1271nm-1371nm Wavelength,Single Mode,0℃~+70℃,TPC-X510-27~37DCR
The 25G SFP28 Transceiver is a high performance, cost-effective, BIDI-compliant optical transceiver designed for use in 25G Ethernet links up to 10km in length. It is compliant with SFP28 MSA and IEEE 802.3 standards. With its small form factor, low power consumption, and low cost, it is ideal for data center applications such as 25G/10G/1G Ethernet, Fibre Channel, SONET, etc.
The 25G SFP28 Transceiver features a wavelength of CWDM-1271nm~1371nm and a connector type of LC. With a wide temperature range of 0℃~+70℃ and a DDM/DOM option, it is designed to offer high performance and reliability. Furthermore, the 25G SFP28 Transceiver provides a BIDI interface to support bidirectional communication for superior data transmission.
| Attribute | Value |
|---|---|
| Product Name | 25GBASE-LR CWDM Transceiver |
| Connector | LC |
| Distance | 10km |
| DDM/DOM | Yes |
| Temperature Range | 0℃~+70℃ |
| Fiber Type | SMF |
| Wavelength | CWDM-1271nm~1371nm |
| Data Rate | Up To 28Gbps |
| Voltage Supply | 3.3V |
| Compliant | SFP28 MSA Compliant |
<
| Part No. | Data | Laser | Fiber | Distance*Note1 | Optical | Temp. | DDMI |
| Rate | Type | Interface | |||||
| TPC-X510-27DCR | 28Gbps | CWDM-1271nm | SMF | 10km | LC | ST | Y |
| TPC-X510-29DCR | 28Gbps | CWDM-1291nm | SMF | 10km | LC | ST | Y |
| TPC-X510-31DCR | 28Gbps | CWDM-1311nm | SMF | 10km | LC | ST | Y |
| TPC-X510-33DCR | 28Gbps | CWDM-1331nm | SMF | 10km | LC | ST | Y |
| TPC-X510-35DCR | 28Gbps | CWDM-1351nm | SMF | 10km | LC | ST | Y |
| TPC-X510-37DCR | 28Gbps | CWDM-1371nm | SMF | 10km | LC | ST | Y |
Performance Specifications – Optical
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Transmitter | |||||
| Center Wavelength | λt | λ-6.5 | λ*note5 | λ+6.5 | nm |
| Spectral Width(-20dB) | Pm | - | - | 1 | nm |
| Average Optical Power, each Lane | Pavg | 0 | - | +6 | dBm |
| TDP, each Lane | 1271-1311 | 1 | dB | ||
| 1331-1351 | 4 | dB | |||
| 1371 | - | - | 4.5 | dB | |
| Extinction Ratio | ER | 3.5 | - | - | dB |
| Receiver | |||||
| Center Wavelength | Λr | 1260 | 1310 | 1410 | nm |
| Rceiver Sensitivity | - | -14*note6 | dBm | ||
| Receiver Overload | 3 | - | dBm | ||
| LOSS De-Assert | LOSd | - | -17 | dBm | |
| LOSS Assert | LOSa | -30 | - | dBm | |
| LOSS Hysteresis | 0.5 | - | dB | ||
Note5: The available transmitter center wavelengths (λ) are: 1271nm, 1291nm, 1311nm , 1331nm, 1351nm and 1371nm.
Note6: Receiver sensitivity is informative. Shall be measured with conformance test signal for . BER =5E-5
The Trixon TPC-X510-27~37DCR 25G SFP28 Optical Transceiver is a high-performance, cost-effective BiDi optical transceiver module for 25Gbps data rate over single-mode fiber. It is compliant with the 25GBASE-LR Ethernet standard and applicable for up to 10km transmission. It is designed with the SFP28 form factor and complies with the SFF-8472 digital diagnostic monitoring (DDM) interface. It provides CWDM wavelength from 1271nm to 1371nm and operates over the temperature range from 0°C to +70°C. With its high-density port, high reliability, and low power consumption, it is a perfect solution for 25G Ethernet data communication applications.
The Trixon TPC-X510-27~37DCR 25G SFP28 Optical Transceiver is ideal for use in 25G Ethernet applications such as data center networks, high speed interconnects, and storage area networks. It supports a variety of CWDM applications, including 25G Ethernet, 25G Fibre Channel, 25G InfiniBand, and 25G CPRI/OBSAI. It supports a variety of interfaces, including LC connectors and data rates up to 25Gbps. It is also compliant with the IEEE 802.3by 25GBase-LR standard and RoHS compliant.
The Trixon TPC-X510-27~37DCR 25G SFP28 Optical Transceiver is designed to meet the demanding requirements of 25G Ethernet applications. It provides high-performance, reliable, and cost-effective solutions for 25G Ethernet applications. It is designed with a low power consumption and low latency, making it ideal for data center applications. It supports a variety of CWDM wavelengths from 1271nm to 1371nm, making it suitable for a wide range of applications. With its high-density port, high reliability, and low power consumption, it is an ideal solution for 25G Ethernet data communication applications.
Brand Name: Trixon
Model Number: TPC-X510-27~37DCR
Place of Origin: CHINA
DDM/DOM: Yes
Fiber Type: SMF
Wavelength: CWDM-1271nm~1371nm
Distance: 10km
Temperature Range: 0℃~+70℃
Trixon 25G BIDI SFP28 is a highly reliable, low power consumption optical transceiver module designed for use in bi-directional fiber optic data communication applications. This BIDI SFP28 module supports 25G data rate and CWDM-1271nm~1371nm wavelength over single mode fiber. It is compliant with IEEE 802.3by 25G Ethernet and SFF-8402 standards, and supports a transmission distance of up to 10km. The module also features an operating temperature range of 0℃~+70℃.
25G SFP28 Transceiver provides a full range of technical support and service, including pre-sales consulting, product installation and configuration, product maintenance and troubleshooting, technical support, etc.
Technical support services include:
We provide professional and dedicated technical support and services for 25G SFP28 Transceiver. Please contact us if you have any questions.
25G SFP28 Transceiver is shipped in antistatic bags and padded boxes with bubble wrap to ensure safe delivery.
The boxes are clearly labeled with the type and quantity of items, and are surrounded by additional cushioning material to protect against shock and vibration.
Reference Datasheet File code: DS090034
