Product Details:
|
| Product Name: | 10/100M Ethernet Over Coaxial Cable Extender | Data Rate: | 100Mbps |
|---|---|---|---|
| Transmission Distance: | 2KM | RJ45 Port: | 1Ch RJ45 |
| BNC Port: | 1Ch BNC Connector | Working Temp.: | 0~70℃ |
| High Light: | IEEE 802.3u gigabit ethernet over coax,2KM Ethernet Over Coaxial Extender,OFDM Ethernet Over Coaxial Extender |
||

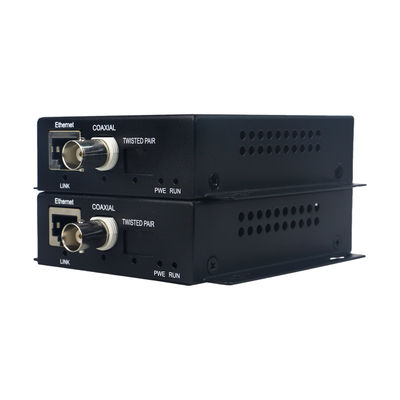

Miray MR-1B1R-T/R is the high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the NF-1801 uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the NF-1801 utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 2km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.
Features
1. Analog monitoring surveillance and HD network upgrading without replacing the coaxial cable
2. Long distance network extended and can be up to 200 meters
3. Support multi-point access, one point to multi-point access
4. Plug and play, no need to set
5. Long distance centralized power supply, the effect is equivalent to PoE power supply
6. Transmission via coaxial cable, twisted pair, telephone line and other transmission media
7. There must be two or more transmissions, the same link(within the same physical coaxial or twisted pair) just set up the master device to support multiple devices work simultaneously
|
Interface |
10/100Base-TX UTP port (Auto-adaptation ) ×1 |
|
Transmission medium |
coaxial cable |
|
Modulation technique |
OFDM |
|
LED Indicators |
Power: Light on: Normal operation Coax: Light on: Video signal is normal UTP, Act/Link: Light on: connection is correct Light Blink: normal communication M(master)/S(slave) : Light on: Under Slave Light off: Under Master |
|
Transmission band |
2MHz–28MHz |
|
Protocol standard |
IEEE 802.3, IEEE 802.3u |
|
Dimensions (W x D x H) |
95*70*25mm |
|
Power supply |
DC 12V 1A |
|
Security technology |
128-DES Data encryption and Key management |
|
Physical layer transmission rate |
200Mbps |
|
Transmission distance |
2KM |
|
Support operating system |
Windows 98/ME/NT/2003/7, Windows XP Home/Pro, Mac OSX , Linux |
|
Operating voltage range |
AC 100V-240V 60/50Hz |
|
Operating environment |
Operating temperature; 0°C ~ +50°C |
| Part No. | Description |
| MR-1B1R-T/R | 10/100Mbps EOC Extender for IP Camera, 1 BNC port + 1 RJ45 port, distance to 1.5KM |
| MR-2B1R-T/R | 10/100Mbps EOC Extender for IP Camera, 2 BNC port + 1 RJ45 port, distance to 1.5KM |
| MR-4B1R-T/R | 10/100Mbps EOC Extender for IP Camera, 4 BNC port + 1 RJ45 port, distance to 1.5KM |
| MR-1B4R-T/R | 10/100Mbps EOC Extender for IP Camera, 1 BNC port + 4 RJ45 port, distance to 1.5KM |
| MR-1B1RP-T/R | 10/100Mbps POE EOC Extender for IP Camera, 1 BNC port + 1 RJ45 port, distance to 0.6KM |
| MR-1T1R-T/R | 10/100Mbps Ethernet over Twisted Pair Extender for IP Camera, 1 Twisted Pair port + 1 RJ45 port, distance to 1.5KM |
| MR-1T1RP-T/R | 10/100Mbps POE Ethernet over Twisted Pair Extender for IP Camera, 1 Twisted Pair port + 1 RJ45 port, distance to 0.6KM |
For more details, welcome to inquire us freely.
