Product Details:
|

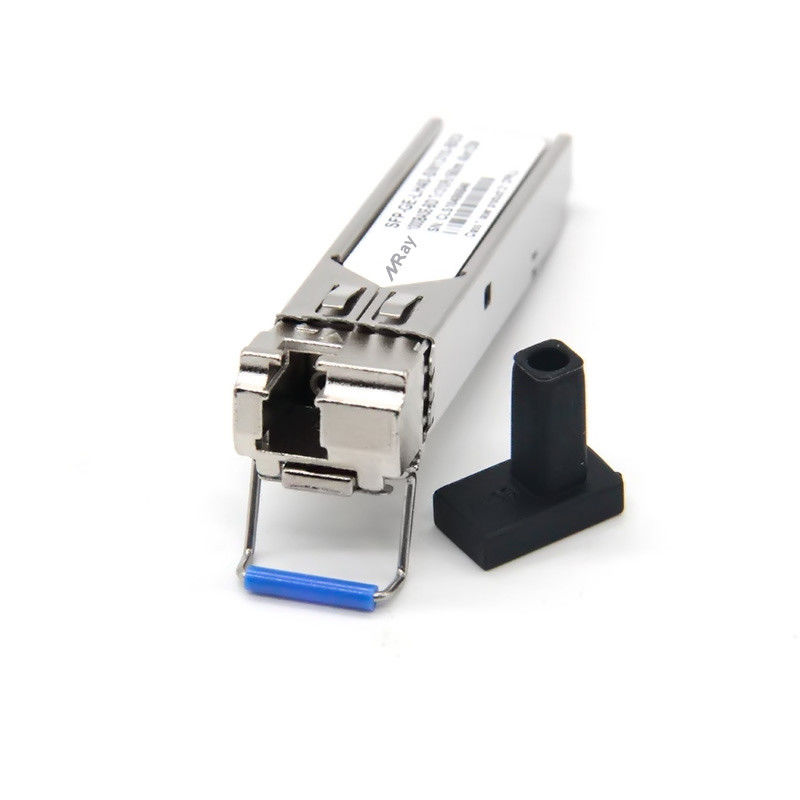

| Product Name: | 1.25G SFP Module BIDI WDM Transceiver 40KM | Rate: | 1.25G |
|---|---|---|---|
| Wavelength: | 1310nm/1550nm | Distance: | 40km |
| Application: | FTTH FTTB FTTO Network | Compatible: | HP, Finisar, Juniper, Cisco |
| High Light: | GLC-BX-D40 Sfp Gigabit Ethernet Module,GLC-BX-U40 SFP Transceiver Modules,40km 1550nm SFP Transceiver Modules |
||
Miray’s SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
♦ Gigabit Ethernet
♦ Fiber Channel
♦ Switch to Switch interface
♦ Switched backplane applications
♦ Router/Server interface
♦ Other optical transmission systems
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
|
Data Rate
|
1250 | Mb/s | ||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 220 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| -10 | 80 | °C | ||||
| -40 | 85 | °C |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Average Output Power |
Po |
-1 |
|
3 |
dBm |
|
|
Laser OMA output power |
POMA |
0 |
|
|
dBm |
|
|
Disable Power |
Poff |
|
|
-40 |
dBm |
|
|
Extinction Ratio |
ER |
6 |
|
|
dB |
|
|
Output Centre Wavelength |
λc |
1530 |
1550 |
1565 |
nm |
|
|
Side-Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Spectral Width (-20dB) |
∆λ |
|
|
1 |
nm |
|
|
Optical Rise/Fall Time (20%~80%) |
tr/tf |
0.03 |
|
|
ns |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
1 |
|
Generation Jitter (20KHZ-80MHZ) |
GJ |
|
|
0.3 |
UIp-p |
|
|
Optical Return Loss |
ORL |
|
|
-12 |
dB |
|
|
Optical Eye Mask |
MM |
Compliant to IEEE802.3ae |
1 |
|||
|
Data Dependent Input Jitter |
DDJ |
|
|
0.1 |
UI |
|
|
Data Input Total Jitter |
TJ |
|
|
0.28 |
UI |
|
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
note |
|
Centre Wavelength |
λc |
1270 |
|
1610 |
nm |
|
|
Receiver Sensitivity |
Sen |
|
|
-15.8 |
dBm |
2 |
|
Receiver Overload |
Psat |
0.5 |
|
|
dBm |
2 |
|
LOS De-Assert |
LOSD |
|
|
-19 |
dBm |
|
|
LOS Assert |
LOSA |
-28 |
|
|
dBm |
|
|
LOS Hysteresis |
|
0.5 |
|
4 |
dB |
|
|
Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
