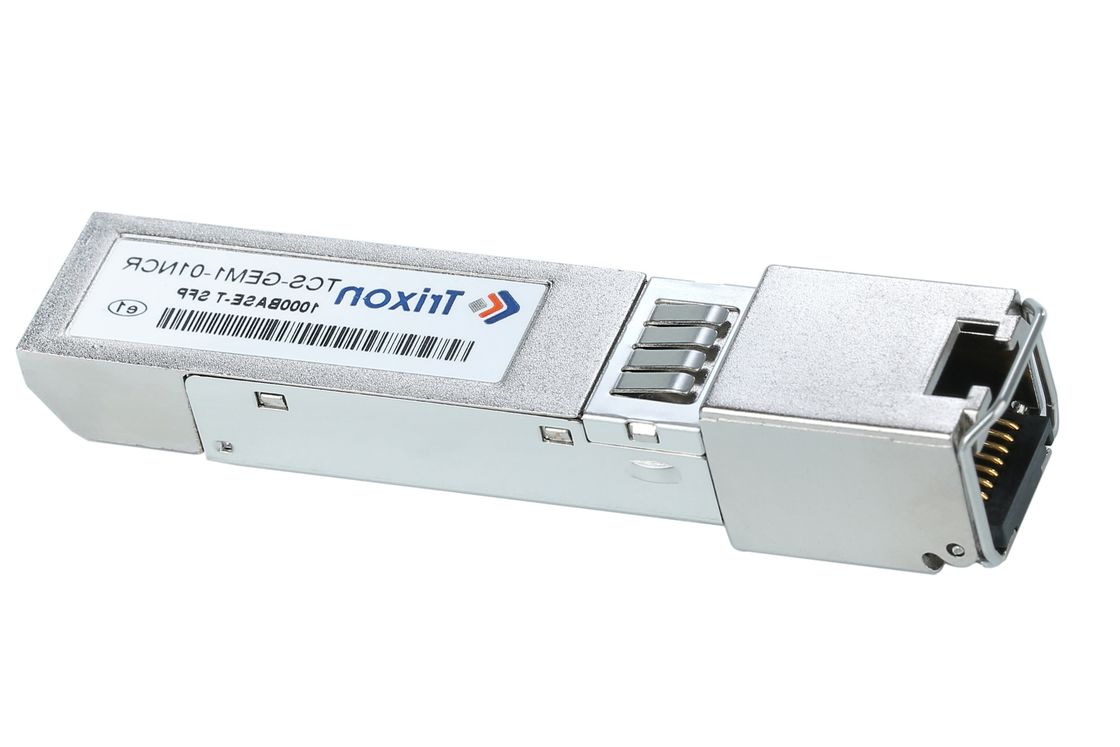

TCS-GEM1-01NCR 1.25G Copper 10/100/1000BASE-T Transceiver supporting 100m Distance,RJ45
TCS-GEM1-01NCR is a 1.25G copper 10/100/1000BASE-T transceiver that supports a maximum transmission distance of 100 meters and uses an RJ45 interface. This transceiver can be used to convert a fiber optic network connection to an Ethernet network connection, providing high-speed and reliable data transmission. It is suitable for application scenarios that need to transmit network signals to long distances, such as offices, data centers, campus networks, etc. The use of copper transmission media enables it to provide high performance and stable network connections over short distances.
| Parameter | Specification |
|---|---|
| Connector | Compact RJ-45 Connector Assembly |
| Hot Pluggable | Yes |
| Product Name | 1.25G Copper Transceiver |
| Interface Type | RJ-45 |
| Operating Temperature | -5℃ To 70℃ |
| Distance | 100m |
| Data Rate | 1.25Gbps,10M 100M 1000M |
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | TS | -40 | +85 | °C |
| Supply Voltage | VCC | -0.5 | 4.0 | V |
| Operating Humidity | - | 5 | 95 | % |
Note3: Exceeding any one of these values may destroy the device permanently.
| Parameter | Symbol | Min | Typical | Max | Unit |
| Power Supply Voltage | Vcc | 3.13 | 3.30 | 3.47 | V |
| Power Supply Current | Icc | - | - | 400 | mA |
| Surge current | Isurge | 30 | mA | ||
| Case Operating Temperature | STop | -5 | - | +70 | °C |
| ITop | -40 | - | +85 | ℃ | |
| Data Rate (note4) | - | 10 | - | 1000 | Mbps |
| Transmission Distance (note5) | - | 100 | m |
Office Network: It enables fast and reliable network connections for computers, printers, routers, switches, and other devices in office environments. With data transfer rates up to 1.25G, it efficiently handles large data volumes.
Data Center: TCS-GEM1-01NCR facilitates high-speed Ethernet connections within data centers, seamlessly linking servers, storage devices, and network switches. It supports high bandwidth and low latency, meeting the performance demands of data center networks.
Campus Network: In campus environments, this transceiver establishes local area networks (LANs) across classrooms, laboratories, libraries, and more. It supports longer transmission distances, up to 100 meters, accommodating dispersed network layouts within campuses.
Small Business Network: TCS-GEM1-01NCR provides an affordable and reliable networking solution for small businesses. It connects various devices, including desktop computers, laptops, IP phones, and web cameras, ensuring fast and stable network connections.
Connector Types: The TCS-GEM1-01NCR transceiver can be compatible with various connector types, including standard RJ45 connectors or specialized connectors like LC, SC, or SFP. The choice of connector depends on your specific networking equipment and infrastructure. Some manufacturers may offer customization options to accommodate different connector types based on your needs.
Cable Length: The maximum standard transmission distance for the TCS-GEM1-01NCR transceiver is 100 meters. However, manufacturers may provide customization options to offer cables of different lengths, allowing you to meet your specific deployment requirements, whether you need longer or shorter cable lengths.
Labeling and Branding: If desired, manufacturers may offer the option for custom labeling or branding on the transceiver module. This feature can be beneficial for easy identification and differentiation of specific transceivers within your network infrastructure.
Compatibility and Protocol Support: While the TCS-GEM1-01NCR transceiver supports the 10/100/1000BASE-T Ethernet standard, customization options might be available to support additional protocols or network standards. If you have specific compatibility requirements or require support for alternative protocols, discussing these options with the manufacturer is recommended.
By considering connector types, cable length customization, labeling/branding, and compatibility/protocol support, you can tailor the TCS-GEM1-01NCR transceiver to align with your specific networking needs.
Our 1.25G Copper Transceiver product offers comprehensive technical support and service. Our team is available to answer any technical questions you may have, as well as provide assistance with the installation, configuration, and troubleshooting of the product. Additionally, we provide firmware updates, and if necessary, a replacement unit.
The 1.25G Copper Transceiver is carefully packaged and shipped to ensure its safety during transit. It is typically packaged in a single box that contains the transceiver itself, along with all the necessary cables and accessories.
To protect the transceiver, the box is secured with a thick layer of bubble wrap. This provides cushioning and prevents any potential damage during transportation. The box is then placed in a sturdy cardboard box to provide additional protection.
It is important to handle the 1.25G Copper Transceiver with care and avoid dropping it or subjecting it to any physical force. Additionally, it should not be exposed to extreme temperatures or humidity, as this could potentially affect its performance.
Upon receiving the 1.25G Copper Transceiver, it is recommended to inspect it for any signs of damage. If any damage is observed, it is important to contact the supplier immediately for further assistance.
For more detailed information about the 1.25G Copper Transceiver, please refer to the datasheet provided by the manufacturer.
File code: DS070013
