Product Details:
|
| Product Name: | 1000BASE-SX 850nm MMF 550m SFP | Connector Type: | Duplex LC |
|---|---|---|---|
| Distance: | 0.55KM | Form Type: | SFP |
| Power Supply: | +3.3V | Operating Temperature: | -40℃ To +85℃ , 0~70℃ |

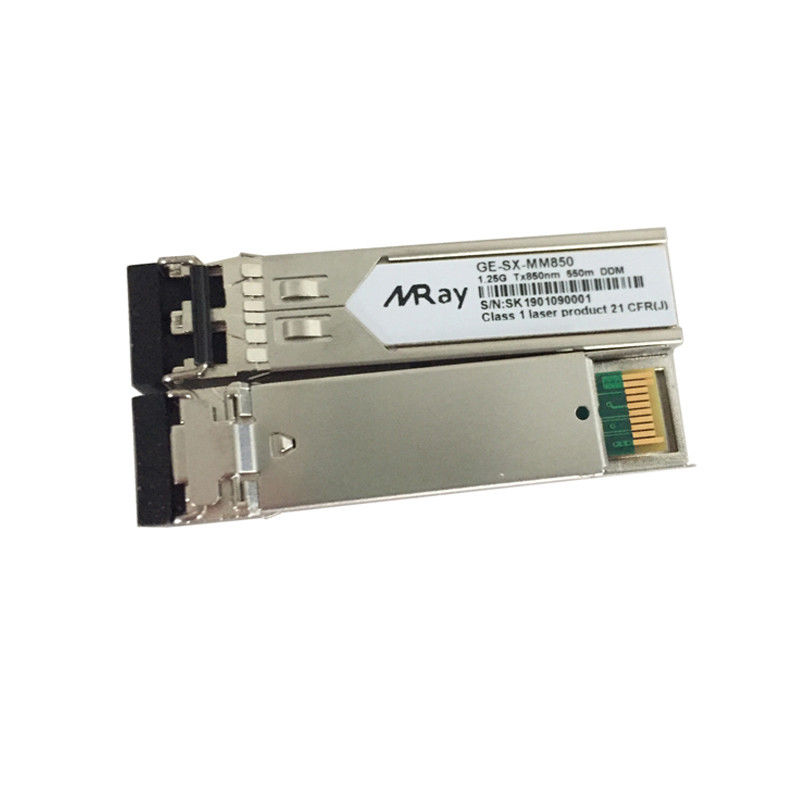

Miray's 1G 850nm 550m SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 550m transmission distance with MMF. The fiber optic transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The 1000BASE-SX sfp modules are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Gigabit Ethernet/Fast Ethenet
Fiber Channel
SDH/SONET/ATM
Switch to Switch interface
Router/Server interface
Other optical transmission systems
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
|
Case operating Temperature |
Industrial |
TC |
-40 |
|
85 |
°C |
|
Extended |
-5 |
|
85 |
°C |
||
|
Commercial |
0 |
|
+70 |
°C |
||
|
Supply Voltage |
VCC |
3.135 |
|
3.465 |
V |
|
|
Supply Current |
Icc |
|
|
300 |
mA |
|
|
Inrush Current |
Isurge |
|
|
Icc+30 |
mA |
|
|
Maximum Power |
Pmax |
|
|
1 |
W |
|
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
1.0625 |
1.25 |
|
Gb/s |
|
|
Optical Launch Power |
Po |
-9 |
|
-3 |
dBm |
1 |
|
Optical Center Wavelength |
λc |
830 |
850 |
870 |
nm |
|
|
Spectral Width (RMS) |
Δλ |
|
|
0.85 |
nm |
|
|
Optical Extinction Ratio |
ER |
9 |
|
|
dB |
|
|
Optical Eye Mask |
|
IEEE802.3z |
|
|||
|
Relative Intensity Noise |
RIN |
|
|
-117 |
dB/Hz |
|
|
Differential Data Input Swing |
VIN |
180 |
|
1200 |
mV |
|
|
TX Disable Input Voltage-Low (TX ON) |
TDISVL |
GND |
|
0.8 |
V |
|
|
TX Disable Input Voltage-High (TX OFF) |
TDISVH |
2.0 |
|
Vcc |
V |
|
|
TX Fault Output Voltage-Low (TX Normal) |
TFLTVL |
GND |
|
0.8 |
V |
|
|
TX Fault Output Voltage-High (TX Fault) |
TFLTVH |
2.0 |
|
Vcc |
V |
|
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
1.0625 |
1.25 |
|
Gb/s |
|
|
Receiver Sensitivity |
PIN_min |
|
|
-18 |
dBm |
1 |
|
Maximum Input Power |
PIN_max |
-3 |
|
|
dBm |
1 |
|
Optical Center Wavelength |
λc |
830 |
850 |
870 |
nm |
|
|
LOS De-Assert |
LOSD |
|
|
-19 |
dBm |
|
|
LOS Assert |
LOSA |
-38 |
|
|
dBm |
|
|
LOS Hysteresis |
LOSHY |
0.5 |
|
|
dB |
|
|
Differential Data Output Swing |
VOUT |
600 |
|
1000 |
mV |
|
|
Receiver LOS Signal Output Voltage-Low |
LOSVL |
GND |
|
0.8 |
V |
|
|
Receiver LOS Signal Output Voltage-High |
LOSVH |
2.0 |
|
Vcc |
V |
