Product Details:
|
| Product Name: | 1G SFP LC SX 500m OM2 MMF SFP Transceiver Modules | Material: | Metal |
|---|---|---|---|
| Fiber Type: | Multimode | Reach: | 550m |
| Wavelength: | 850nm | Connector: | Duplex LC |

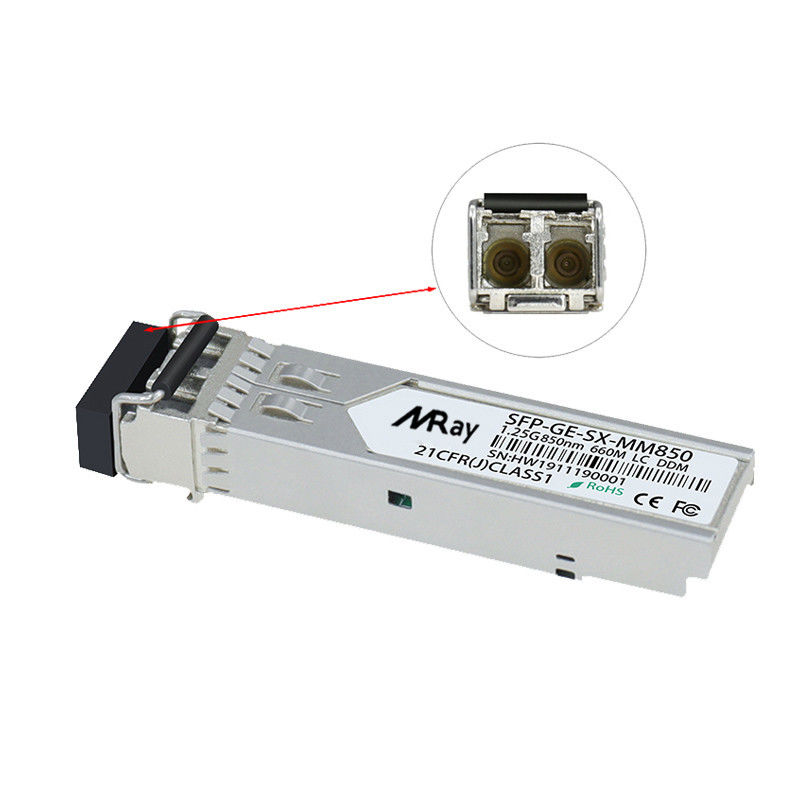

Miray's SFP-GE-SX Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the VCSEL laser and the PIN photo-detector . The module data link up to 550m in 50/125um multi mode fiber. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
|
Standards |
IEEE 802.3 IEEE 802.3u IEEE 802.3z |
|
Device Interface |
SFP MSA Compliant LC duplex connector |
|
Data Transfer Rate |
1.25 Gbps |
|
Wavelength |
850 nm |
|
Optical Output Power |
-9 ~ -3 dBm |
|
Distance |
550 m (1804 ft.) |
|
Special Features |
Hot pluggable Metal enclosure |
|
Sensitivity |
-20 dBm Consumption: 1 W |
|
Operating Temperature |
0 – 70 °C /-40~80 °C (industrial type) |
|
Operating Humidity |
Max. 95% non-condensing |
|
Weight |
0.025kg |
|
Certifications |
CE FCC |
|
Warranty |
3-year warranty |
|
Part Number |
Description |
|
GE-SX-MM |
1.25G SFP module transceivers, multimode MM 850nm, Duplex LC, DDM, 550m |
|
GE-SX-MM02 |
1.25G SFP module transceivers, multimode MM 1310nm, Duplex LC, DDM, 2km |
|
GE-LX10-SM |
1.25G SFP module transceivers, singlemode SM 1310nm, Duplex LC, DDM, 10km |
|
GE-LX20-SM |
1.25G SFP module transceivers, singlemode SM 1310nm, Duplex LC, DDM, 20km |
|
GE-LX40-SM |
1.25G SFP module transceivers, singlemode SM 1550nm, Duplex LC, DDM, 40km |
|
GE-LX80-SM |
1.25G SFP module transceivers, singlemode SM 1550nm, Duplex LC, DDM, 80km |
|
GE-LX100-SM |
1.25G SFP module transceivers, singlemode SM 1550nm, Duplex LC, DDM, 120km |
