Product Details:
|
| Product Name: | Unmanaged 10/100/1000M 16 Ports POE Switch | Standard: | IEEE802.3af/at |
|---|---|---|---|
| Uplink Ports: | 2 RJ45 Uplink Ports | Max. Power Port: | 30Watts |
| Voltage Range: | AC100-240V | PoE Power Supply Mode: | End-span Method |
| High Light: | PSE POE Switch,Unmanaged 1000M POE Switch,30W Poe Gigabit Ethernet Switch |
||

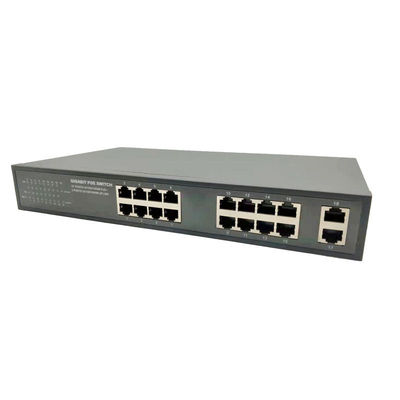

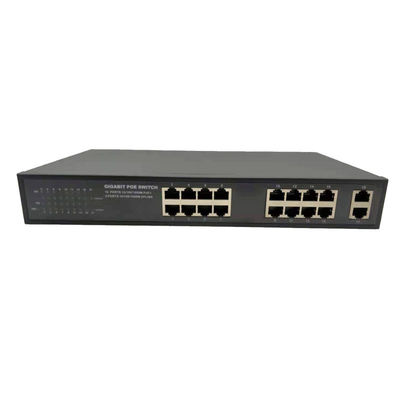

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, MR-P1016G-2G PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the it features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 260-watt PoE budget on the whole system. All RJ45 copper interfaces of it support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra gigabit RJ45 for uplink.
|
Item |
Description |
|
|
Model |
MR-P1016G-2G |
|
|
Power Supply |
Voltage Range |
AC 100-240V |
|
Power Consumption |
The device <5W, POE power supply <260W |
|
|
Network Port Parameter |
Network Ports |
1～16 Ports: 10/100/1000Mbps Ethernet port, adaptive control 2-Port 10/100/1000Mbps RJ45 interface for uplink |
|
Transmission Distance |
1~18 Ethernet Port:0~100m |
|
|
Transmission Media |
1~18 Ethernet Port:Cat5e/6 standard UTP cable |
|
|
POE Agreement |
IEEE802.3 af/at standards |
|
|
PoE Power Supply Mode |
End-span method |
|
|
PoE Power Supply Wattage |
Each port≤30W,Whole device<260W |
|
|
Network Switch Specification |
Network Standard |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
|
Swap Mode |
Store-and- forward |
|
|
Switch Capacity |
36Gbps |
|
|
MAC Address List |
8K |
|
|
Status Indicators |
Power Indicator Light |
One power light (green) |
|
PoE Indicator |
1~16 PoE indicator light(yellow) |
|
|
Network Port LED |
1~18 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data |
|
|
Protection Level |
Surge Immunity |
Level 3, executive standard:IEC61000-4-5 |
|
Electrostatic Protection |
1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 |
|
|
Operating Environment |
Working Temperature |
-10℃～55℃ |
|
Storage Temperature |
-40℃-85℃ |
|
|
Humidity(non-congeal) |
0~95% |
|
|
Mechanical Attributes |
Dimensions (L*W*H) |
310mm×180mm×44.5mm |
|
Color |
Black |
|
|
Weight |
3kg |
|
|
Reliability |
Mean time between failures (MTBF) |
＞50000h |
|
Part Number |
Description |
|
MR-P1008G-2G |
POE Switch, 8 ports 10/100/1000M + 2 Uplink GE port |
|
MR-P1008G-1G1SFP |
POE Switch, 8 ports 10/100/1000M + 1 Uplink GE port 1 Uplink SFP port |
|
MR-P1008G-2G2SFP |
POE Switch, 8 ports 10/100/1000M + 2 Uplink GE ports 2 Uplink SFP ports |
|
MR-P1016G-2G |
POE Switch, 16 ports 10/100/1000M + 2 Uplink GE port |
|
MR-P1016G-1G1SFP |
POE Switch, 16 ports 10/100/1000M + 1 Uplink GE port 1 Uplink SFP port |
| MR-P1016G-2G2SFP | POE Switch, 16 ports 10/100/1000M + 2 Uplink GE port 2 Uplink SFP port |
