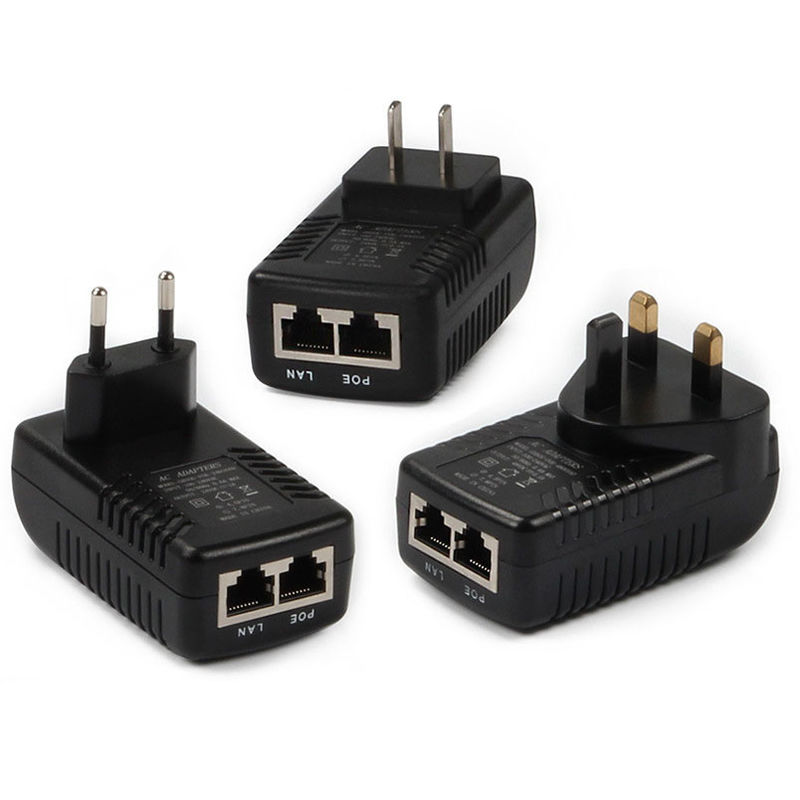

Product Details:
|
| Product Name: | 18W Wall Mount PoE Injector | Enclosure Material: | ABS+PC |
|---|---|---|---|
| Power: | 18W | Power Supply Mode: | 45(+) 78(-) |
| Input Power AC Voltage: | 90V~240VAC | Packaging: | PE Bag, White Box, Carton |
| High Light: | 18W Wall Mount PoE Injector,240VAC Wall Mount PoE Injector,18V 1A PoE Power Supply |
||
POE (Power Over Ethernet) is a technology solution that, under the case of no any change for current Ethernet Cat5 wiring/cabling infrastructure, not only transfer data signal but also provide direct current power for some IP based terminal device (like IP telephony, Wireless LAN access point, Network camera, etc.).
Power supply 18V 1A is a Power-over-Ethernet (PoE) power supply with integral DC Injector. It provides DC power for one PoE-equipped device by "Injecting" DC power through the ethernet cable. It is compatible with MikroTik RouterBoard, AP's and other equipment supporting the standard PoE pinout
Compliant with isolation and channel
Data and power carried over one Ethernet cable
Characteristics of IEEE802.3af/at
DC good LED
Full protection OCP, OVP
Non-vented case
|
PoE Standard |
Non Standard IEEE 802.3af Compliance |
|
Input Power: |
100-240VAC;50-60Hz 0.72A |
|
Output Power: |
12V1A, 12V2A, 15V0.8A,18V1A, 24V0.5A, 24V1A, 48V0.25A |
|
Power Consumption: |
18Watts max(G0491) |
|
Pin Assignments/Polarity: |
4/5(+),7/8(-); |
|
Data Rate: |
10/100Mbps |
|
Standards: |
IEEE 802.3 10Base-T IEEE 802.3U 100Base-TX IEEE 802.3af Power over Ethernet |
|
LED Indicator |
AC power |
|
Interface: |
1 "Data ' In RJ-45 Ethernet Port 1 "Data+Power" Output RJ-45 Ethernet Port,1 AC Input Plug |
|
Environmental: |
|
|
Operating Temp: |
0℃to +40℃ |
|
Storage Temp: |
-40℃to +70℃ |
|
Humidity: |
0 to +95℃RH |
|
Mechanical: |
|
|
Weight: |
180g |
|
Dimension(L*W*H): |
83*43*29mm |
|
Safety Approval: |
CE CCC |
|
Package: |
|
|
CTN: 42.5*42*31cm/50pcs per ctn |
|
|
N.W: 16.2KGS G.W: 18.4KGS |
|
|
Part Number |
Description |
|
MR-PA4805 |
POE Module Power Supply, 48V0.5A, 24W |
|
MR-PA2410 |
POE Module Power Supply,24V1A, 24W |
|
MR-PA2405 |
POE Module Power Supply,24V0.5A, 12W |
|
MR-PA1810 |
POE Module Power Supply,18V1A, 18W |
|
MR-PA1508 |
POE Module Power Supply,15V0.8A, 12W |
| MR-PA1210 | POE Module Power Supply,12V1A, 12W |
| MR-PA1220 | POE Module Power Supply,12V2A, 24W |
