Product Details:
|

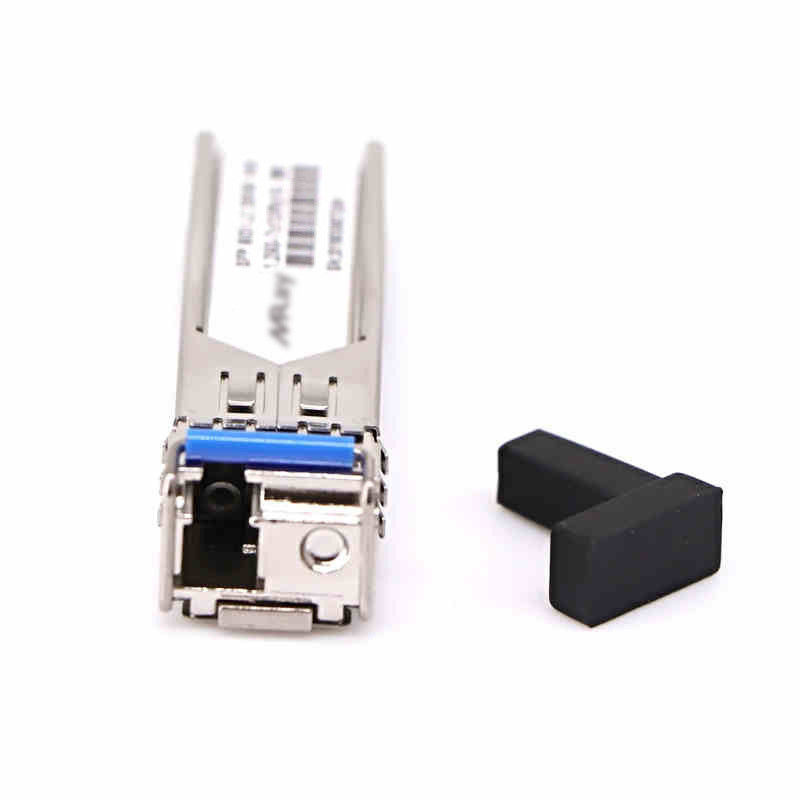

| Product Name: | 1.25G BiDi SFP 1310nm-TX/1550nm-RX | Data Rate: | 1.25Gbps |
|---|---|---|---|
| Connector: | Single LC Port | Wavelength: | 1310nm/1550nm |
| Application: | Telecommunication, FTTH FTTB FTTO Network | Warranty: | 3 Years |
| Power Supply: | +3.3V | Operating Temperature: | ,0~70℃ |
| High Light: | Hot Pluggable sfp transceiver single mode,Bidirectional sfp transceiver single mode,cisco 1g sfp module |
||
The Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
|
Parameter |
Symbol |
Minimum |
Maximum |
Units |
|
Supply Voltage |
Vcc |
3.15 |
3.45 |
V |
|
Ambient operating Temperature |
Top |
0 |
+70 |
°C |
|
Operating Relative Humidity |
– |
5 |
95 |
% |
Transmitter Specification
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Data Input Swing Differential | VIN | 400 | 1800 | mV | ||
| common mode voltage tolerance | 15 | mV | ||||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| Transmit Disable Input | High | VD | 2.0 | Vcc | V | |
| Low | VEN | VEE | VEE +0.8 | V | ||
| Transmit Enable Output | High | VD | 2.0 | Vcc | V | |
| Low | VEN | VEE | VEE +0.8 | V | ||
| Parameter | Symbol | Min | Typical | Max | Unit | note |
| Centre Wavelength | λc | 1270 | 1580 | nm | ||
| Receiver Sensitivity | Sen | -22 | dBm | 2 | ||
| Receiver Overload | Psat | -3 | dBm | 2 | ||
| LOS De-Assert | LOSD | -24 | dBm | |||
| LOS Assert | LOSA | -35 | dBm | |||
| LOS Hysteresis | 1 | 4 | dB | |||
| Receiver Reflectance | Rrx | -12 | dB |
