Product Details:
|
| Product Name: | 100G/4*25G 3M AOC Cable Active Optical Cable | Data Rate: | 100Gb/s |
|---|---|---|---|
| Distance: | 3M | Application: | Data Center |
| Fiber Type: | OM3/OM4 MMF Cable | Operating Temperature: | 0°C To 70°C |
| Compatible: | Cisco, Huawei, HP, Finisar, Juniper | Warranty: | 3 Years |
| High Light: | MSA SFF-8636 Active Optical Cable,100G QSFP28 Active Optical Cable,100g aoc cable |
||

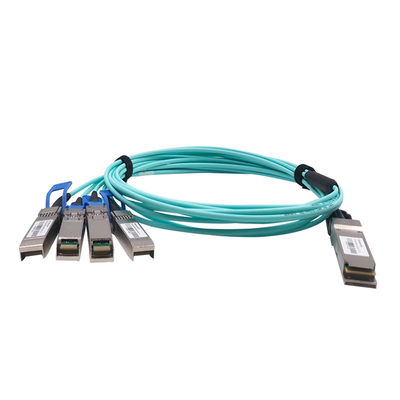

The Miray QSFP28-4SFP28-100G-AOC series are active optical cables (AOC) that allows bi-directional 100Gbps to 25Gbps transmission suitable for high performance computing(HPC)clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
Support 4x25GBASE-SR application
Compliant to QSFP28 MSA SFF-8636 and SFP28 MSA SFF-8431 and SFF- 8472
Multi rate of up to 25.78125Gbps per lane
Transmission distance up to 50m
+3.3V single power supply
Low power consumption
UL certification cables (optional)
Operating temp Commercial: 0°C to +70 °C
RoHS compliant
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Operating Temperature |
TC |
0 |
- |
+70 |
°C |
|
|
Power Supply Voltage |
Vcc |
3.14 |
3.3 |
3.47 |
V |
|
|
Power Dissipation per QSFP28 |
Pd |
- |
- |
2.5 |
W |
|
|
Power Dissipation per SFP28 |
Pd |
- |
- |
1.0 |
W |
1 |
|
Bit Rate per Lane |
BR |
10.3125 |
25.78125 |
- |
Gbps |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Notes |
|
|
ModSelL |
Module Select |
VOL |
0 |
- |
0.8 |
V |
|
|
Module Unselect |
VOH |
2.5 |
- |
VCC |
V |
|
|
|
LPMode |
Low Power Mode |
VIL |
0 |
- |
0.8 |
V |
|
|
Normal Operation |
VIH |
2.5 |
- |
VCC+0.3 |
V |
|
|
|
ResetL |
Reset |
VIL |
0 |
- |
0.8 |
V |
|
|
Normal Operation |
VIH |
2.5 |
- |
VCC+0.3 |
V |
|
|
|
ModPrsL |
Normal Operation |
VOL |
0 |
- |
0.4 |
V |
|
|
IntL |
Interrupt |
VOL |
0 |
- |
0.4 |
V |
|
|
Normal Operation |
VoH |
2.4 |
- |
VCC |
V |
|
|
|
Electrical Transmitter Characteristics |
|||||||
|
Differential Date Input Swing |
Vin,P-P |
200 |
- |
1600 |
mV |
|
|
|
Output Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
|
|
Electrical Receiver Characteristics |
|||||||
|
Differential Data Output Swing |
Vout |
200 |
- |
800 |
mVPP |
|
|
|
Bit Error Rate |
BER |
|
|
E-12 |
|
1 |
|
|
Input Differential Impedance |
ZD |
90 |
100 |
110 |
Ω |
||
|
Part No. |
Product Type |
Rate |
Media Type |
Wavelength |
Reach |
Commercial Temp. |
Industrial Temp. |
|
QSFP28-4SFP28-100G-AOC1M |
QSFP28 AOC |
40G |
MM |
850nm |
1m |
0~70℃ |
-40~85℃ |
|
QSFP28-4SFP28-100G-AOC2M |
QSFP28 AOC |
40G |
MM |
850nm |
2m |
0~70℃ |
-40~85℃ |
|
QSFP28-4SFP28-100G-AOC3M |
QSFP28 AOC |
40G |
MM |
850nm |
3m |
0~70℃ |
-40~85℃ |
|
QSFP28-4SFP28-100G-AOC5M |
QSFP28 AOC |
40G |
MM |
850nm |
5m |
0~70℃ |
-40~85℃ |
|
QSFP28-4SFP28-100G-AOC7M |
QSFP28 AOC |
40G |
MM |
850nm |
7m |
0~70℃ |
-40~85℃ |
|
QSFP28-4SFP28-100G-AOC10M |
QSFP28 AOC |
40G |
MM |
850nm |
10m |
0~70℃ |
-40~85℃ |
|
QSFP28-4SFP28-100G-AOC20M |
QSFP28 AOC |
40G |
MM |
850nm |
20m |
0~70℃ |
-40~85℃ |
|
QSFP28-4SFP28-100G-AOC30M |
QSFP28 AOC |
40G |
MM |
850nm |
30m |
0~70℃ |
-40~85℃ |
