Product Details:
|
| Product Name: | QSFP28-100G-AOC-15M AOC | Data Rate: | 100Gbps |
|---|---|---|---|
| Distance: | 15M | Application: | Data Center |
| Fiber Type: | OM3/OM4 MMF Cable | Compatible: | Cisco, Huawei, HP, Juniper |
| High Light: | RoHS 6 aoc fiber cable,15M Aoc Fiber Cable,Brocade 100g aoc |
||

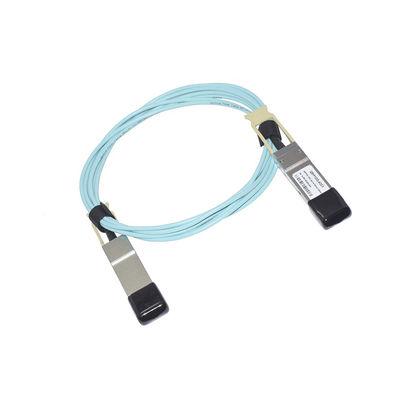

Miray’s QSFP28-100G-AOC is a high performance module for short- range multi - lane data communication and interconnect applications. It integrates four data lanes in each direction with 100Gbps bandwidth . Each lane can operate at 25.78125Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector.
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
Operating Case temperature |
Tca |
0 |
|
70 |
ºC |
|
Data Rate Per Lane |
fd |
|
25.78125 |
|
Gbps |
|
Humidity |
Rh |
5 |
|
85 |
% |
|
Power Dissipation |
Pm |
|
2 |
2.5 |
W |
|
Fiber Bend Radius |
Rb |
3 |
|
|
cm |
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Centre Wavelength |
λc |
840 |
850 |
860 |
nm |
- |
|
RMS spectral width |
∆λ |
- |
- |
0.6 |
nm |
- |
|
Average launch power, each lane |
Pout |
-8.4 |
- |
2.4 |
dBm |
- |
|
Optical Modulation Amplitude (OMA),each lane |
OMA |
-6.4 |
|
3 |
dBm |
- |
|
Transmitter and dispersion eye closure(TDEC),each lane |
TDEC |
|
|
4.3 |
dB |
|
|
Extinction Ratio |
ER |
3 |
- |
- |
dB |
- |
|
Average launch power of OFF transmitter, each lane |
|
|
|
-30 |
dB |
- |
|
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3 |
SPECIFICATION VALUES {0.3,0.38,0.45,0.35,0.41.0.5} |
Hit Ratio = 5x10-5 |
||||
|
Receiver |
||||||
|
Centre Wavelength |
λc |
840 |
850 |
860 |
nm |
- |
|
Stressed receiver sensitivity in OMA |
|
|
|
-5.2 |
dBm |
1 |
|
Maximum Average power at receiver , each lane |
|
|
|
2.4 |
dBm |
- |
|
Minimum Average power at receiver , each lane |
|
|
|
-10.3 |
dBm |
|
|
Receiver Reflectance |
|
|
|
-12 |
dB |
- |
| Part No. | Product Type | Rate | Media Type | Wavelength | Reach | Commercial Temp. | Industrial Temp. |
| QSFP28-100G-AOC1M | QSFP28 AOC | 40G | MM | 850nm | 1m | 0~70℃ | -40~85℃ |
| QSFP28-100G-AOC2M | QSFP28 AOC | 40G | MM | 850nm | 2m | 0~70℃ | -40~85℃ |
| QSFP28-100G-AOC3M | QSFP28 AOC | 40G | MM | 850nm | 3m | 0~70℃ | -40~85℃ |
| QSFP28-100G-AOC5M | QSFP28 AOC | 40G | MM | 850nm | 5m | 0~70℃ | -40~85℃ |
| QSFP28-100G-AOC7M | QSFP28 AOC | 40G | MM | 850nm | 7m | 0~70℃ | -40~85℃ |
| QSFP28-100G-AOC10M | QSFP28 AOC | 40G | MM | 850nm | 10m | 0~70℃ | -40~85℃ |
| QSFP28-100G-AOC20M | QSFP28 AOC | 40G | MM | 850nm | 20m | 0~70℃ | -40~85℃ |
| QSFP28-100G-AOC30M | QSFP28 AOC | 40G | MM | 850nm | 30m | 0~70℃ | -40~85℃ |
