Product Details:
|
| Product Name: | 10/100Mbps Ethernet To Fiber Media Converter Multimode 2KM SC | Data Rate: | 10/100Mbps |
|---|---|---|---|
| Fiber Type: | Multimode | Distance: | 2KM |
| Wavelength: | 850nm | Operating Temperature: | 0℃ To +70℃ |
| Connector: | SC | Warranty: | 3 Years |
| High Light: | 850nm multimode fiber to ethernet converter,2KM sc fiber to ethernet converter,2km multimode fiber to ethernet converter |
||

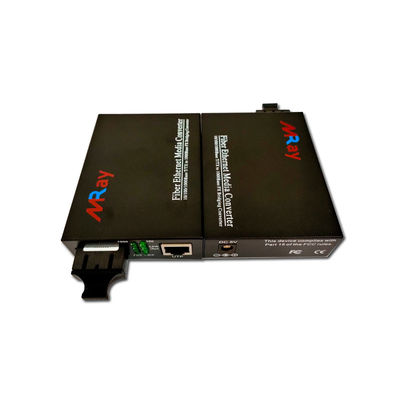

Miray Media Converter converts the copper UTP media to the multimode or single mode fiber with duplex SC, ST, and LC interface. The equipped auto-negotiation function enables the media converters to operate at 10 or 100Mbps copper Ethernet or Fast Ethernet and the 100Mbps fiber. This conversion complies with IEEE802.3 and IEEE802.3u standards with two different network connection media, 10/100Base-TX and 100Base-FX. The data transmission is realized by switching and store-and-forward technologies.
|
Rate |
self-adaptive 10/100M |
|
Protocol supported |
IEEE802.3/IEEE802.3U etc. |
|
Cable type |
single / dual fiber |
|
Optic mode |
single / multimode |
|
Transmission mode |
half / full duplex |
|
Ethernet interface |
RJ-45 |
|
Optic interface |
SC/FC/ST |
|
Storage humidity |
5%~95%(no-condensing) |
|
Optic wavelength |
850nm, 1310nm, 1550nm |
|
BER |
< 1/1000000000 |
|
MTBF |
3 years |
|
Power |
5W |
|
Working temperature |
0~50°C |
|
Working humidity |
5%-95% |
|
Power supply |
DC5V/1A AC220V/0.5A, DC-48V/0.5A |
|
Storage temperature |
0°C~70°C |
|
Part Number |
Description |
| MR-101M02 | 10/100M Dual fiber MM 2KM SC External Power Supply |
| MR-101S20 | 10/100M Dual fiber SM 20KM SC External Power Supply |
|
MR-101S20AB |
10/100M Single fiber SM 20KM SC External Power Supply |
|
MR-101S40AB |
10/100M Single fiber SM 40KM SC External Power Supply |
|
MR-101S60AB |
10/100M Single fiber SM 60KM SC External Power Supply |
|
MR-101S80AB |
10/100M Single fiber SM 80KM SC External Power Supply |
