Product Details:
|
| Product Name: | 8CH AHD CVI TVI 1080P Fiber Optical HD Video Converter | BNC Port: | 8Ch BNC Port |
|---|---|---|---|
| Wavelength: | 1310/1550nm | Operating Temperature: | 0℃ To +70℃ |
| Application: | FTTH FTTB FTTX Network | Warranty: | 3 Years |
| High Light: | 10 Digit Bnc To Fiber Media Converter,NTSC bnc to fiber media converter,tvi to cvbs converter |
||
Miray's 8Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 8 channels AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.
Features
|
Optical Fiber |
||
|
Wavelength |
WDM:1310nm/1550nm |
|
|
Output Power |
-8~3dBm |
|
|
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
|
|
Rx sensitivity |
-26dBm |
|
|
Optical connector |
FC (default), ST or SC (optional) |
|
|
Transmission Distance |
0~550M (MM) / 0~80KM (SM) (Default distance is 20Km) |
|
|
Video |
||
|
Number of Channels |
8 |
|
|
Input/output impedance |
75 Ohm (unbalance) |
|
|
Standard video input/output voltage |
1.0Vp-p |
|
|
Video Bandwidth |
50MHz |
|
|
Sampling Bandwidth |
8bit |
|
|
Sampling Frequency |
108MHz |
|
|
Signal to noise ratio |
>67dB |
|
|
Rise and Fall time |
<0.8ns |
|
|
Optical Signal Intrinsic Jitter |
<0.2 UI |
|
|
Differential Gain |
< ±1.5% |
|
|
Differential Phase |
< ±1° |
|
|
Connector |
BNC |
|
|
Supporting video pixel/Resolution |
1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX |
|
|
PTZ Data |
||
|
Protocol |
Default :RS485 (RS232/RS422 Optional) |
|
|
Number of channels |
1 |
|
|
Connector |
3pins Terminal Blocks |
|
|
Data Rate |
0-200Kbps |
|
|
Directions |
Default :Simplex from Rx to Tx (BIDI duplex optional) |
|
|
Environmental |
||
|
Operating Temperature: |
-15°C to 65°C (5°F to 149°F) |
|
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
|
Relative Humidity: |
5% to 95% non-condensing |
|
|
MTBF |
> 100,000 hrs |
|
|
Electrical and Mechanical |
||
|
Input Power: |
DC5V 2A |
|
|
Power Consumption: |
≤6W |
|
|
LED Indicators: |
||
|
Fiber |
Fiber Status |
|
|
Video |
LED1, LED2, LED3, LED4 |
|
|
Data |
Data status |
|
|
PWR |
Power Status |
|
|
Dimensions (WxDxH): |
167 x 172 x 45 mm (720P) 167 x 172 x 45 mm (1080P) |
|
|
Weight: |
2.5Kg (720P) 2.5KG(1080P) |
|
|
Casing: |
Metal Case |
|
|
Mounting Options: |
Wall-mount/Rack-mount |
|
|
Data |
Physical interface: Industrial standard terminal |
|
Audio |
Connector: Terminal Blocks |
|
Telephone |
Connector: RJ11 |
|
Ethernet |
Connector: RJ45 |
|
Contact Closure |
Physical connector: Industrial standard connector port |
|
Optical Budget |
Multi-mode / 20dBm / 2KM |
|
Model |
Description |
|
MR-8V-F20-720P |
720P AHD/TVI/CVI Fiber Video Converter,single mode single fiber , 8CH video, 20KM, FC, Iron, 1V↑ |
|
MR-8V1D-F20-720P |
720P AHD/TVI/CVI Fiber Video Converter,single mode single fiber, 8CH video+ reverse data, 20KM, FC, Iron, 1V↑+1D↓ |
|
MR-8V-F20-1080P |
1080P AHD/TVI/CVI Fiber Video Converter,single mode single fiber , 8CH video, 20KM, FC, Iron, 1V↑ |
|
MR-8V1D-F20-1080P |
1080P AHD/TVI/CVI Fiber Video Converter,single mode single fiber, 8CH video+ reverse data, 20KM, FC, Iron, 1V↑+1D↓ |

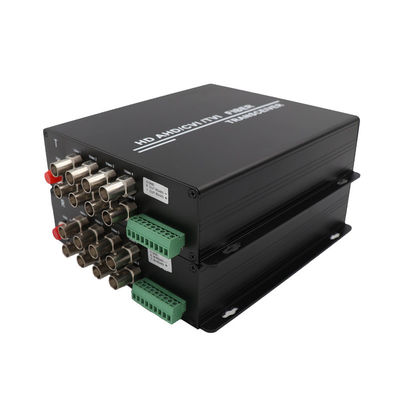

Product Show
