Product Details:
|
| Product Name: | 2 Channels HDCVI Fiber Optic Video Converter 720P Single FC | BNC Port: | 2Ch BNC Port |
|---|---|---|---|
| Wavelength: | 1310/1550nm | Operating Temperature: | 0℃ To +70℃ |
| Connector: | FC | Warranty: | 3 Years |
| High Light: | 2Ch FC video digital optical converter,1550nm FC video digital optical converter,hdcvi to hdmi converter |
||
Miray 2Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 1 channels AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.
Features
|
Parameter |
Specifications |
|
|
HD Video |
Interface |
BNC |
|
Input level |
>500mVp-p |
|
|
Output level |
1Vp-p |
|
|
Input/Output Impedance |
75 Ω |
|
|
Bandwidth |
30MHz(720P); 60MHz(1080P) |
|
|
Digit bit width |
8bit |
|
|
Data |
Interface |
Standard industrial terminals |
|
Interface Signals |
RS485 |
|
|
Baud Rate |
1200~9600bit/s |
|
|
Bit Error Rate |
<10-9 |
|
|
Optical |
Interface |
FC (default) ,SC,ST (optional) |
|
Fiber Type |
Single mode, single fiber (default) |
|
|
Distance |
0km~80km |
|
|
Wavelength |
1310nm/1550nm |
|
|
General |
Indicators |
LOS,PWR,VIDEO |
|
Mean time between failures(MTBF) |
>100 000 hours |
|
|
Power supply |
DC5V/6A |
|
|
Operating Temperature |
-20 C~+70 C |
|
|
Humidity |
0%~95% (non-condensing) |
|
|
Dimension |
720P Device:43.8*22*4.4mm,1.65kg; 720P Packing: 52.4*34.6*18mm,4.3kg; 1080P Device:43.8*22*4.4mm,2kg; 1080P Packing: 52.4*34.6*18mm,5kg |
|
|
Model |
Description |
|
MR-2V-F20-720P |
720P AHD/TVI/CVI Fiber Video Converter,single mode single fiber , 2CH video, 20KM, FC, Iron, 1V↑ |
|
MR-2V1D-F20-720P |
720P AHD/TVI/CVI Fiber Video Converter,single mode single fiber, 2CH video+ reverse data, 20KM, FC, Iron, 1V↑+1D↓ |
|
MR-2V-F20-1080P |
1080P AHD/TVI/CVI Fiber Video Converter,single mode single fiber , 2CH video, 20KM, FC, Iron, 1V↑ |
|
MR-2V1D-F20-1080P |
1080P AHD/TVI/CVI Fiber Video Converter,single mode single fiber, 2CH video+ reverse data, 20KM, FC, Iron, 1V↑+1D↓ |

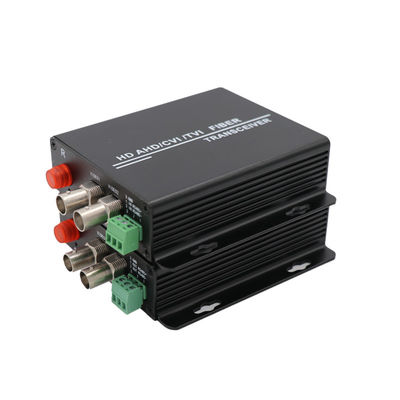

Product Show
