Product Details:
|
| Product Name: | Unmanaged 8 Ports Industrial Gigabit POE+ Ethernet Switch 2 SFP Ports | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Fiber Port: | 2*1000M SFP Ports | POE Port: | 8 *1000M POE Ports |
| Working Temp.: | -40°~ +85°C | Metal Case: | Aluminum |
| High Light: | IEEE802.3z Industrial Gigabit Ethernet Switch,8 *1000M Unmanaged Fiber Switch,8 *1000M Industrial Gigabit Ethernet Switch |
||

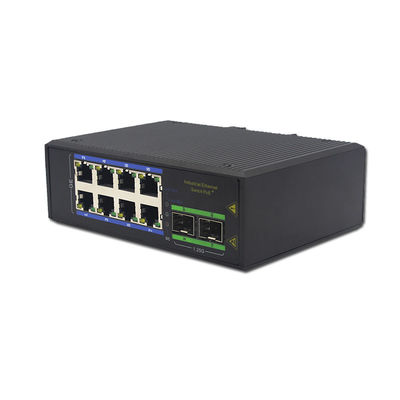

Miray’s MR-I2GF8TP-SFP Series is a 8 ports 10/100Base-TX + 8 port 100Base-FX Hardened Ethernet switch. The Switch 8 TP ports and 2 fiber ports. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
|
Product Name |
Industrial Grade Network Switch |
|
Product Model |
MR-I2GF8TP-SFP |
|
Port Definition |
8*10/100/1000M Base-TX POE Ports + 2 gigabit SFP port |
|
Network Protocols |
IEEE802.3 |
|
IEEE802.3u |
|
|
IEEE802.3z |
|
|
IEEE802.3x |
|
|
Fiber wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Single-mode single-fiber: 20/40/60/80Km |
|
Single-mode dual-fiber: 20/40/60/80Km |
|
|
POE Function |
support |
|
Overload protection |
support |
|
Undervoltage protection |
support |
|
Redundant protection |
support |
|
Reverse connection protection |
support |
|
Exchange level |
layer 2 |
|
Bandwidth |
64G |
|
Packet forwarding rate |
48Mpps |
|
MAC |
128K |
|
MTBF |
100000 hours |
|
Shell |
Corrugated high-strength metal housing |
|
Protection level |
IP40 |
|
Working Environment |
Operating temperature: -40~+85℃ |
|
Humidity: 0%~90 % ( No condensation) |
|
|
Standard |
EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A |
|
Product Dimensions (L×W×H) |
143mm×101mm×44mm |
|
Certification |
CE FCC ROHS IOS |
|
Software Function |
|
|
Port Management |
Enable/Disable Port |
|
Speed Duplex MTU Setting |
|
|
Flow-control |
|
|
Port Information Check |
|
|
Port Mirroring |
Support port mirroring |
|
Port Speed Limit |
Support port-based input/output bandwidth management |
|
Port Isolation |
Support port Isolation BPDU guard Root guard |
|
Storm Suppression |
Support broadcast storm suppression function, suppression number and limit type can be configured |
|
Link management |
Retracting sword speed can reach 1 second, support protection automatic recovery function |
|
Support port loopback monitoring and looped port control |
|
|
Support disable loop port time setting |
|
|
Support user hierarchical management and password protection, support ARP denial of service |
|
|
Support 802.1x authentication, centralized MAC address authentication, support dynamic APR detection |
|
|
VLAN |
Access |
|
Trunk |
|
|
Voice VLAN |
|
|
Number of VLAN 4K |
|
|
Support GVRP dynamic VLAN registration |
|
|
Support port, protocol, MAC-based VLAN partitioning |
|
|
Spanning tree |
Support STP spanning tree protocol |
|
Support RSTP Rapid Spanning Tree Protocol |
|
|
Multicast |
Support static addition, deletion IGMP-snooping |
|
Support MLD-snooping |
|
|
Support v1/v2/v3 dynamic multicast monitor |
|
|
Qos |
Support flow rate limit CAR |
|
Support SP, WRR, SP+WRR |
Application
