Product Details:
|
| Product Name: | Unmanaged Gigabit Industrial POE Fiber Media Converter | Data Rate: | 1000Mbps |
|---|---|---|---|
| Optical Port: | 1*1000M SFP Port | POE Port: | 4*10/100/1000M POE Port |
| Raw Material: | Aluminum Alloy | OEM, ODM: | Support |
| High Light: | 4 Port Industrial Gigabit Ethernet Switch,Unmanaged 4 port poe switch,ODM Industrial Gigabit Ethernet Switch |
||

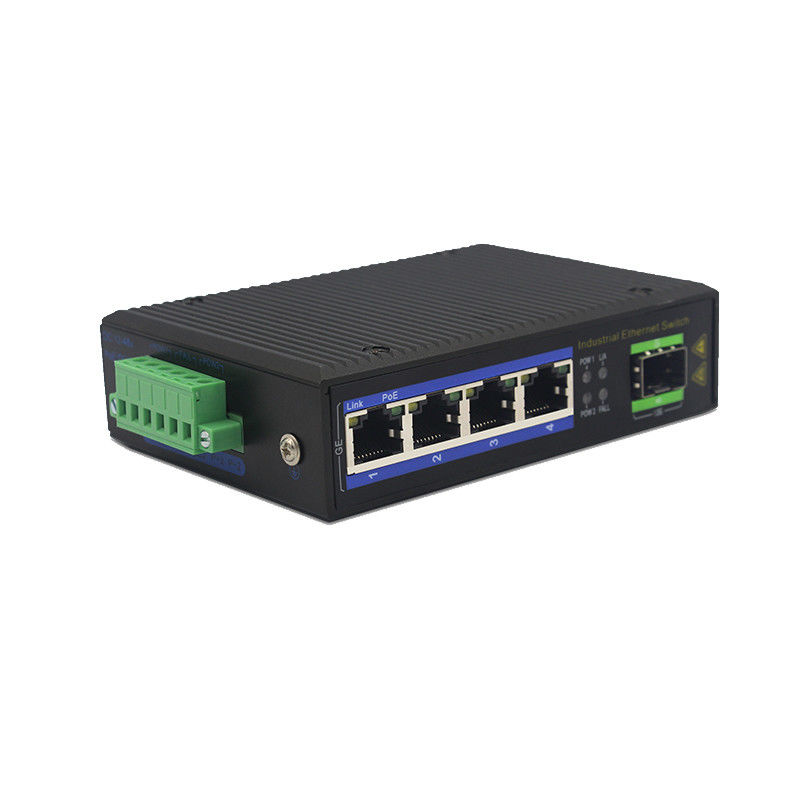

Miray’s MR-I1GF4TP-SFP Industrial Ethernet switch is a 10/100/1000M unmanaged industrial PoE fiber switch. It has 4*10/100/1000Base-TX RJ45 ports and 1*SFP port Gigabit. Port 1-4 can support 30W PoE power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power output is 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, wireless AP, network multimedia speakers, and POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
Powerful port lightning protection, ultra-wide voltage input
— Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
— Industrial dual power input
— DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.
Intelligent PoE power supply
— 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
— IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
— Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
— Low power consumption, fan-less design, aluminum shell.
— Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
— CE, FCC, RoHS.
— The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, PoE.
|
Model |
MR-I1GF4TP-SFP |
|
|
Interface Characteristics |
||
|
Fixed Port |
4*10/100/1000Base-T PoE ports (Data/Power)
|
|
|
Ethernet Port |
10/100/1000Base-T,Auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
|
|
Uplink Port |
Gigabit SFP ports |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
|
|
Optical Cable |
Multimode: 850nm 0 ~ 550M, singlemode: 1310nm 0 ~ 40KM, 1550nm 0 ~ |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
1.6Gbps |
|
|
Forwarding |
0.744Mpps |
|
|
MAC |
1K |
|
|
Buffer Memory |
768K |
|
|
Jumbo Frame |
1636bytes |
|
|
LED Indicator |
Power: PWR (green);Network :Link, Link/Act (yellow); PoE : PoE (green) |
|
|
PoE & Power |
||
|
PoE Port |
Port 1 to 4 IEEE802.3bt @ POE |
|
|
Power Supply Pin |
Default: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) |
|
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
|
Power Consumption |
Standby<6W, Full Load<240W |
|
|
Working Voltage |
48-57VDC, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
|
Power Supply |
No, 48V/240W industrial power supply |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-40~+80°C;5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
118*86*39mm |
|
|
Net /Gross Weight |
<0.5kg / <0.7kg |
|
|
Installation |
Desktop, DIN rail |
|
|
Certification & Warranty |
||
|
Lightning protection / protection level |
Lightning protection: 6KV 8/20us; Protection level: IP40 |
|
|
Mechanical Properties |
IEC60068-2-6 (anti vibration),IEC60068-2-27 (anti shock),
|
|
|
Certification |
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
|
|
Warranty |
5 years , lifelong maintenance. |
|
Application
