Product Details:
|
| Product Name: | 6 Ports Unmanaged Industrial Gigabit Fiber Switch | Data Rate: | 1000Mbps |
|---|---|---|---|
| Fiber Port: | 2 SFP Port | UTP Port: | 4 RJ45 Port |
| Installation: | DIN Rail Type | Warranty: | 5 Years |
| High Light: | 1000Mbps 6 port sfp switch,10Gbps Industrial Gigabit Ethernet Switch,IEEE802.3 Industrial Gigabit Ethernet Switch |
||

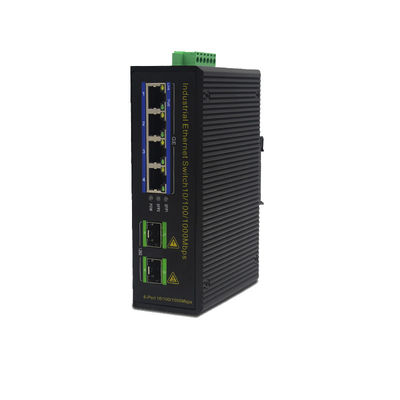

Miray’s MR-I2GF4T-SFP is a full gigabit industrial Ethernet fiber switch. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. The MR-I2GF4T-SFP has 4*10/100/1000M RJ45 ports and 2*1000M SFP fiber slot ports, Each port can support full line-rate forwarding. Specially designed for harsh outdoor applications. Its 4KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Full gigabit Ethernet port
— A combination of Gigabit Ethernet port and Gigabit SFP port to meet the networking
requirements of various scenarios
— Support non-blocking wire speed forwarding .
— Support full duplex based on IEEE802.3x and half duplex based on backpressure .
Stable and reliable
— Low power consumption, fan-less design, aluminum shell.
— CE, FCC, RoHS, CCC.
— The user-friendly panel, it can show the device status through the LED indicator of
PWR, Link
|
Product Name |
4 Port 10/100/1000Base Industrial Ethernet Switch |
|
Product Model |
MR-I2GF4T-SFP |
|
Interface |
4x 10/100/1000Base-T RJ45 port + 2x 1000Mbps SFP Slot |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
|
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
|
100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
|
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
|
Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM |
|
Performance Specification |
Bandwidth: 10Gbps |
|
Packet Buffer Memory:1M |
|
|
Packet Forwarding Rate:1488000pps/port |
|
|
MAC Address Table: 8K |
|
|
Forwarding Mode |
Store-and-Forward |
|
Protection |
Lightening protection, IP40 protection |
|
LED Indicators |
Power: PWR; Link; Link/Act |
|
Power Supply |
Input Power: 2x10~58VDC (Terminal Block) |
Other Specification
|
Working Environment |
Working temperature: -40～+85℃ ; Storage temperature: -45～+85℃ |
|
Relative Humidity: 5%~95 %( no condensation) |
|
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
|
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) |
|
|
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) |
|
|
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV |
|
|
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV |
|
|
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) |
|
|
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
|
Shell |
IP40 protect grade, metal shell |
|
Installation |
DIN-Rail or Wall mounts |
|
Packing List |
1×Industrial Ethernet Switch (plus terminal block) |
|
1×User Manual/Certificate of quality/Warranty card |
|
|
1×DIN-Rail mounting kit |
|
|
Certification |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
|
EN 55022 (CISPR 22), Class B |
|
|
MTBF |
300,000 hours |
|
Weight & Size |
Product Weight: 0.6KG |
|
Packing Weight: 1.1 KG |
|
|
Product size (L×W×H): 118mm x 86mm x 39mm |
|
|
Packing size(L×W×H): 183mm x 131mm x 100mm |
|
|
Warranty |
5-years |
Application
