Product Details:
|
| Product Name: | 10/100M Fiber Media Converter WDM 20km TX1310nm/RX1550nm SC | Data Rate: | 10/100Mbps |
|---|---|---|---|
| Fiber Type: | Single Fiber | Distance: | 0~120km |
| Wavelength: | 1310/1550nm | Operating Temperature: | 0℃ To +70℃ |
| Warranty: | 3 Years | Connector: | FC ST SC |
| High Light: | IEEE802.3x wdm media converter,20km Fiber Media Converter Single Mode,RX1550nm Fiber Media Converter Single Mode |
||

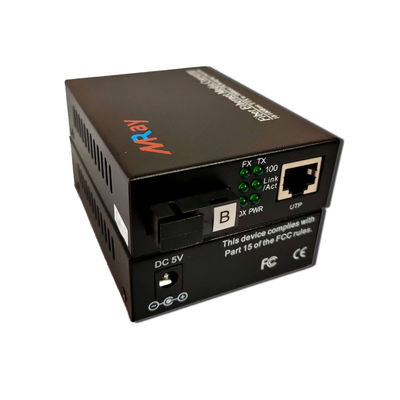

Miray Ethernet media converters are designed to transmit and receive 10/100 Mbps data over single mode
optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any
adjustments. The optical interface operates at a 100 Mbps Ethernet rate. LED indicators are provided for rapidly
ascertaining equipment operating status.
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
|
Wavelength |
1310nm/1550nm;1490nm/1550nm |
|
Transmission distance |
Single-mode:20km;40km;60km;80km;100km;120km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: SM: SC (fiber size: 9/125µm) |
|
Conversion means |
Media conversion, store-and-forward/cut-through |
|
MAC address table |
1K |
|
Buffer space |
1Mbit |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
Delay |
Store-and-forward: 9.6μs; cut-through: 0.9μs |
|
BER |
<19-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
PWR (power supply) FX LINK/ACT (optical link/action) TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs) FX 100 (100M transmission rate of optical fiber) |
|
Power supply |
DC5V 1A , AC220 |
|
Power consumption |
<2W |
|
Operating temperature |
-10~70ºC |
|
Operating humidity |
5%~90% |
|
Dimensions |
26mm (H) * 70mm (W) * 94 mm (D) |
|
Part Number |
Description |
|
MR-101S20AB |
10/100M Single fiber SM 20KM SC External Power Supply |
|
MR-101S40AB |
10/100M Single fiber SM 40KM SC External Power Supply |
|
MR-101S60AB |
10/100M Single fiber SM 60KM SC External Power Supply |
|
MR-101S80AB |
10/100M Single fiber SM 80KM SC External Power Supply |
