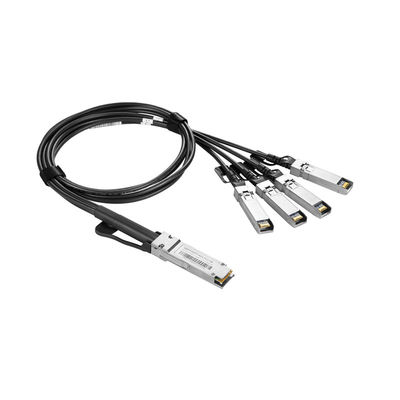

Customize Direct Attach Copper Cable 40G QSFP+ To 4 SFP+ DAC 5m

Description

Miray's QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.

Features

• Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
• Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
• Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
• Hybrid cable link length up to 5m (passive limiting)
• High-Density QSFP 38-PIN and SFP 20-PIN Connector
• Power Supply :+3.3V
• Low power consumption: 0.02 W (typ.)
• Temperature Range: 0~ 70 °C

Applications

• Data

Servers

Networked storage systems

Routers

External storage systems

Data Center networking

• Communications

Switches

Routers

• Industry Standards

InfiniBand Trade Association (IBTA)

IEEE802.3ba

40Gigabit Ethernet ( 40G BASE – CR4)

Recommended Operating Conditions

​

Absolute Maximum Ratings

Ordering Information

Application

Reliablity Assurance
