Product Details:
|

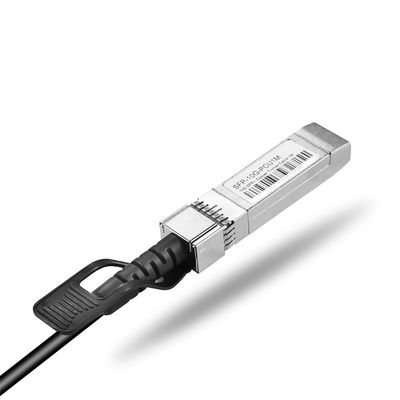

| Product Name: | 10G SFP+ Passive Direct Attach Copper Cable 1M | Data Rate: | 10Gbps |
|---|---|---|---|
| Cable Type: | Copper Twinax Cable | Distance: | 1M 3M 5M 7M 10M 15M |
| Wire AWG: | 30AWG, 28AWG, 26AWG, 24AWG | Voltage Supply: | 3.3V |
| High Light: | 24AWG sfp+ direct attach cable,10G 1m Direct Attach Copper Cable,20PIN Footprint Direct Attach Copper Cable |
||
Miray's SFP+ Direct Attach Cables are compliant with the SFF-8436 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m). SFP+ Passive Copper Direct Attach Cables are suitable for very short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. They are widely applied for 10-Gigabit Ethernet, fiber channel and other industry standards, and it is direct attached compliant and fully conform to the SFP+ MSA specifications.
Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Support for 1x, 2x, 4x and 8x Fibre Channel data rates
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
Low Power Consumption < 0.5W
Power Supply :+3.3V
Compatible to SFP+ MSA
Temperature Range: 0~ 70 °C * ROHS Compatible
1) High capacity I/O Storage Area Networks
2) Network Attached Storage
3) Storage Servers
4) Switched fabric I/O
5) Data center cabling infrastructure
6) High density connections between networking equipment
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Operating Case Temperature |
Topc |
-40 |
85 |
degC |
|
Relative Humidity (non-condensation) |
RS |
- |
85 |
% |
|
Supply Voltage |
VCC3 |
3.135 |
3.465 |
V |
|
Power Supply Currenct |
ICC3 |
750 |
- |
mA |
|
Total Power Consumption |
Pd |
- |
2.0 |
W |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes |
|
Differential Impedance |
Zd |
90 |
100 |
110 |
Ω |
|
|
Differential Input Return Loss |
SDDXX |
<-12+2* SQRT (f) with f in GHz |
dB |
0.01~4.1GHz |
||
|
<-6.3+13* Log10/(f/5.5) with f in GHz |
dB |
4.1~11.1GHz |
||||
|
Common Mode Output Return Loss |
SCCXX |
< -7+1.6*f with f in GHz |
dB |
0.01~2.5GHz |
||
|
|
|
-3 |
dB |
2.5~11.1GHz |
||
|
Difference Waveform Distortion Penalty |
dWDPc |
|
|
6.75 |
dB |
|
|
VMA Loss |
L |
|
|
4.4 |
dB |
|
|
VMA Loss to Crosstalk Ratio |
VCR |
32.5 |
|
|
dB |
|
|
Part Number |
Description |
Cable Length (m) |
AWG |
|
QSFP-40G-DAC0.5M |
QSFP+ to QSFP+ |
0.5 |
30 |
|
QSFP-40G-DAC1M |
QSFP+ to QSFP+ |
1 |
30 |
|
QSFP-40G-DAC2M |
QSFP+ to QSFP+ |
2 |
30 |
|
QSFP-40G-DAC3M |
QSFP+ to QSFP+ |
3 |
28/30 |
|
QSFP-40G-DAC4M |
QSFP+ to QSFP+ |
4 |
28 |
|
QSFP-40G-DAC5M |
QSFP+ to QSFP+ |
5 |
26 |
|
QSFP-40G-DAC7M |
QSFP+ to QSFP+ |
7 |
24 |
