Product Details:
|
| Product Name: | 40G QSFP+ To QSFP+ AOC Active Optical Cable | Data Rate: | 40Gbps |
|---|---|---|---|
| Distance: | 1m 2m 3m 5m 7m 10M | Application: | Telecommunication, Gigabit Ethernet |
| Fiber Type: | OM3/OM4 MMF Cable | Operating Temperature: | 0°C To 70°C |
| Compatible: | Cisco, Huawei, HP, Finisar | Warranty: | 3 Years |
| High Light: | Bundle Multimode Fiber 40g aoc,InfiniBand QDR Application Active Optical Cable,10M MMF Active Optical Cable |
||

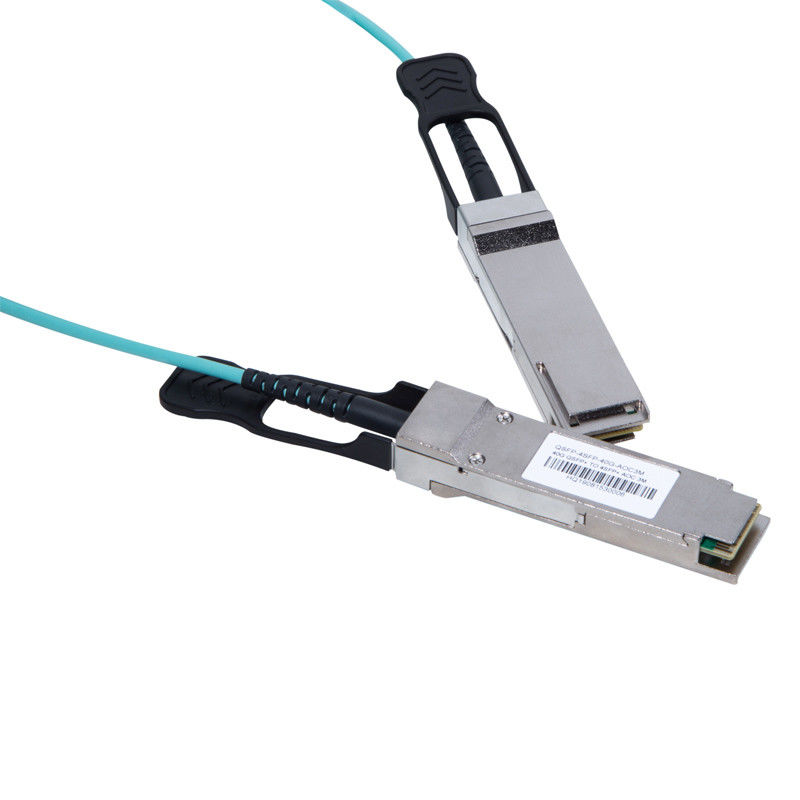

Miray’s QSFP-40G-AOC1m series are active optical cables (AOC) that allows bi-directional 40Gbps transmission suitable for Ethernet 40GBASE-SR4 and InfiniBand QDR application and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
Quad Small Form-factor Pluggable (QSFP)
40GBASE-SR4 compliant
QDR, DDR, SDR (Infiniband) compliant
Bi-directional parallel link
10.3125Gb/s per lane, x4 channels
Up to 100m
Low profile connectors
Low power consumption
Bundle multi-mode fiber array
850nm VCSEL four array
PIN diode four array
Hot-Pluggable
I2C management interface
From 0 to 70 degree case temperature
3.3V power supply voltage
Electrical 38-pin connector
|
Parameter |
Conditions |
Min |
Typ. |
Max |
Units |
|
Data rate per lane |
8B/10BCoding, 64B/66B Coding |
1 |
10.3125 |
10.5 |
Gbps |
|
3.3V Supply Voltage |
|
3.13 |
3.3 |
3.47 |
V |
|
Power supply noise including ripples |
1kHz to frequency of operation mersured at VCC_HOST |
|
|
50 |
mVpp |
|
Case temperature |
|
0 |
35 |
70 |
℃ |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Notes |
|
|
ModSelL |
Module Select |
VOL |
0 |
- |
0.8 |
V |
|
|
Module Unselect |
VOH |
2.5 |
- |
VCC |
V |
|
|
|
LPMode |
Low Power Mode |
VIL |
0 |
- |
0.8 |
V |
|
|
Normal Operation |
VIH |
2.5 |
- |
VCC+0.3 |
V |
|
|
|
ResetL |
Reset |
VIL |
0 |
- |
0.8 |
V |
|
|
Normal Operation |
VIH |
2.5 |
- |
VCC+0.3 |
V |
|
|
|
ModPrsL |
Normal Operation |
VOL |
0 |
- |
0.4 |
V |
|
|
IntL |
Interrupt |
VOL |
0 |
- |
0.4 |
V |
|
|
Normal Operation |
VoH |
2.4 |
- |
VCC |
V |
|
|
|
Electrical transmitter Characteristics |
|||||||
|
Differential Date Input Swing |
Vout |
200 |
- |
1600 |
mV |
|
|
|
Output Differential Impedance |
ZD |
90 |
100 |
110 |
Ω |
|
|
|
Electrical Receiver Characteristics |
|||||||
|
Differential Data Output Swing |
Vin,P-P |
350 |
- |
800 |
mVPP |
|
|
|
Bit Error Rate |
BER |
|
|
E-12 |
|
1 |
|
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
||
|
Part No. |
Product Type |
Rate |
Media Type |
Wavelength |
Reach |
Commercial Temp. |
Industrial Temp. |
|
QSFP-40G-AOC1M |
QSFP+ AOC |
40G |
MM |
850nm |
1m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC2M |
QSFP+ AOC |
40G |
MM |
850nm |
2m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC3M |
QSFP+ AOC |
40G |
MM |
850nm |
3m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC5M |
QSFP+ AOC |
40G |
MM |
850nm |
5m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC7M |
QSFP+ AOC |
40G |
MM |
850nm |
7m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC10M |
QSFP+ AOC |
40G |
MM |
850nm |
10m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC20M |
QSFP+ AOC |
40G |
MM |
850nm |
20m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC30M |
QSFP+ AOC |
40G |
MM |
850nm |
30m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC50M |
QSFP+ AOC |
40G |
MM |
850nm |
50m |
0~70℃ |
-40~85℃ |
|
QSFP-40G-AOC100M |
QSFP+ AOC |
40G |
MM |
850nm |
100m |
0~70℃ |
-40~85℃ |
