Product Details:
|
| Product Name: | 10GBASE-ER 40km SMF 1550nm SFP+ | Data Rate: | 10Gb/s |
|---|---|---|---|
| Wavelength: | 1550nm | Distance: | 40km |
| Application: | Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network, | Compatible: | Juniper, Cisco, HP... |
| Source: | VCSEL / PIN,VSCEL+PIN | Power Supply: | +3.3V |
| High Light: | 40km 10gbase Er Sfp,1550nm Sfp 10 Gigabit Ethernet,RoHS-6 Sfp 10 Gigabit Ethernet |
||

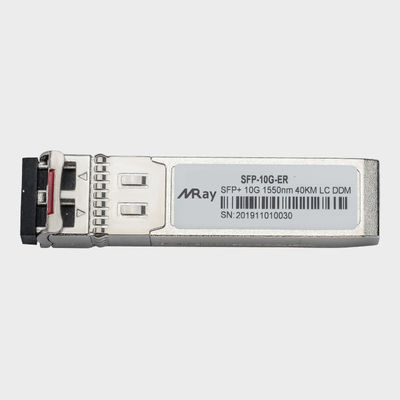

Miray's SFP-10GB-ER Transceiver is designed for 10GBASE-ER/EW, and 8.5G/10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. SFP+ER Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Storage Temperature |
TS |
-40 |
|
+85 |
°C |
|
Case Operating Temperature |
TA |
0 |
|
70 |
°C |
|
Maximum Supply Voltage |
Vcc |
-0.5 |
|
4 |
V |
|
Relative Humidity |
RH |
0 |
|
85 |
% |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Average Output Power |
Po |
-1 |
|
3 |
dBm |
|
|
Laser OMA output power |
POMA |
0 |
|
|
dBm |
|
|
Disable Power |
Poff |
|
|
-40 |
dBm |
|
|
Extinction Ratio |
ER |
6 |
|
|
dB |
|
|
Output Centre Wavelength |
λc |
1530 |
1550 |
1565 |
nm |
|
|
Side-Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Spectral Width (-20dB) |
∆λ |
|
|
1 |
nm |
|
|
Optical Rise/Fall Time (20%~80%) |
tr/tf |
0.03 |
|
|
ns |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
1 |
|
Generation Jitter (20KHZ-80MHZ) |
GJ |
|
|
0.3 |
UIp-p |
|
|
Optical Return Loss |
ORL |
|
|
-12 |
dB |
|
|
Optical Eye Mask |
MM |
Compliant to IEEE802.3ae |
1 |
|||
|
Data Dependent Input Jitter |
DDJ |
|
|
0.1 |
UI |
|
|
Data Input Total Jitter |
TJ |
|
|
0.28 |
UI |
|
