Product Details:
|
| Product Name: | HPE Aruba Compatible 10G SFP+ LC LR 20km SMF Transceiver - J9151E | Data Rate: | 10Gbps |
|---|---|---|---|
| Distance: | 20km | Power Supply: | +3.3V |
| Application: | FTTH FTTB FTTO Network | Operating Temperature: | -40℃ To +85℃ |
| Connector Type: | LC/UPC | Warranty: | 3 Years |
| High Light: | 20km 10gb lr sfp,J9151E aruba switch 10gb sfp+,1310nm DFB aruba switch 10gb sfp+ |
||

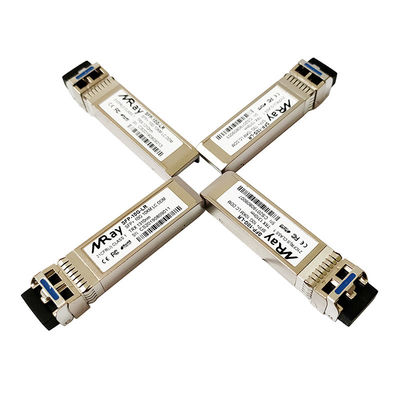

This Miray SFP+ LR transceiver is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps.
Data Networking
Optical Network
|
Parameter |
Symbol |
Min |
Typ |
Max |
Note |
Unit |
|
Optical Transmitter Characteristics |
||||||
|
Nominal Wavelength |
λ |
|
1310 |
|
|
nm |
|
Optical Output Power |
Pav |
-6 |
|
2 |
|
dBm |
|
Extinction Ratio |
ER |
3.5 |
|
|
|
dB |
|
Average Launch Power of OFF Transmitter |
POFF |
|
|
-35 |
|
dBm |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
|
dB/Hz |
|
Optical Receiver Characteristics |
||||||
|
Center Wavelength |
λC |
1260 |
|
1620 |
|
nm |
|
Receiver Sensitivity@10.3Gb/s |
RSENSE |
|
|
-14.4 |
1 |
dBm |
|
Receiver Overload |
|
0.5 |
|
|
|
dBm |
|
Optical Return Loss |
|
27 |
|
- |
|
dB |
|
LOS Assert |
LOSA |
-30 |
|
|
|
dBm |
|
LOS De-Assert LOS |
LOSD |
|
|
-17 |
|
dBm |
|
LOS Hysteresis |
|
0.5 |
|
|
|
dB |
