Product Details:
|

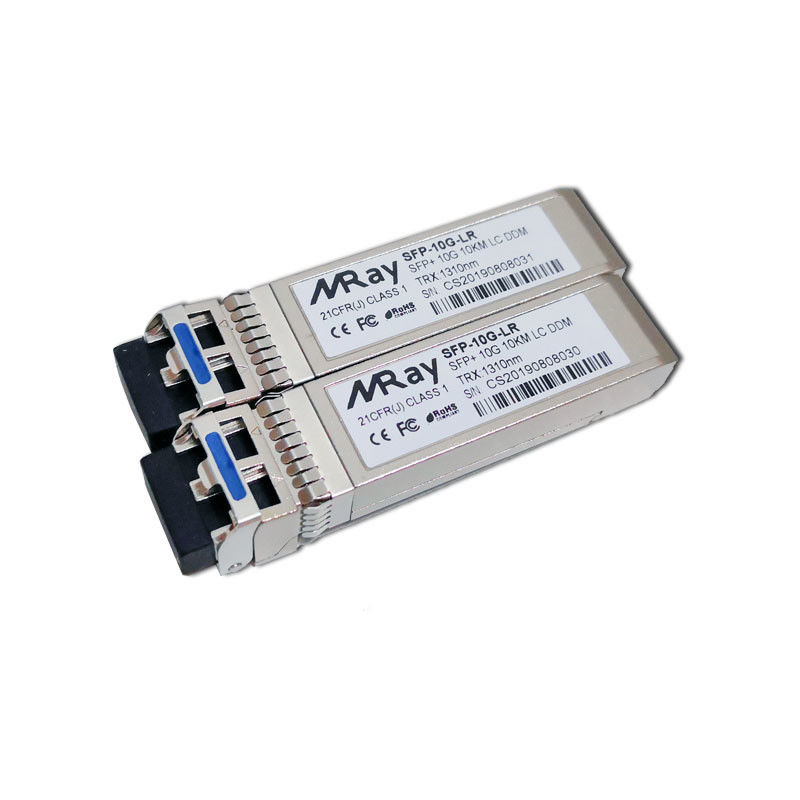

| Product Name: | Compatible HPE J9151E SFP+ 10G 1310nm 10KM LR SMF Transceiver Module | Rate: | 10G |
|---|---|---|---|
| Distance: | 10km | Fiber Type: | SMF |
| Application: | Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network, | Warranty: | 3 Years |
| High Light: | I2C Interface lr sfp+ module,J9151E Hpe 10gb Sfp+,SMF Hpe 10gb Sfp+ |
||
Miray SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Multi rate of up to 11.3Gb/s
850nm VCSEL/1310nm DFB/1550nm EML laser transmitter
Transmission distance up to 2km/10km/20km/40km/80km(SM fiber)
300m over M5E MMF (50/125μm OM3)
Single +3.3V Power Supply
RoHS6 Compliant
I2C interface with integrated Digital Diagnostic Monitoring
10G electrical interface
10Gb/s transmitter
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Operating Case Temperature Range |
Tc |
oC |
0 |
|
70 |
|
Power Supply Voltage |
Vcc |
V |
3.14 |
3.3 |
3.46 |
|
Bit Rate |
BR |
Gb/s |
|
|
10.52 |
|
Bit Error Ratio |
BER |
|
|
|
10-12 |
|
Max Supported Link Length |
L |
Km |
|
|
10 |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Note |
Unit |
|
Optical Transmitter Characteristics |
||||||
|
Nominal Wavelength |
λ |
|
1310 |
|
|
nm |
|
Optical Output Power |
Pav |
-6 |
|
2 |
|
dBm |
|
Extinction Ratio |
ER |
3.5 |
|
|
|
dB |
|
Average Launch Power of OFF Transmitter |
POFF |
|
|
-35 |
|
dBm |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
|
dB/Hz |
|
Optical Receiver Characteristics |
||||||
|
Center Wavelength |
λC |
1260 |
|
1620 |
|
nm |
|
Receiver Sensitivity@10.3Gb/s |
RSENSE |
|
|
-14.4 |
1 |
dBm |
|
Receiver Overload |
|
0.5 |
|
|
|
dBm |
|
Optical Return Loss |
|
27 |
|
- |
|
dB |
|
LOS Assert |
LOSA |
-30 |
|
|
|
dBm |
|
LOS De-Assert LOS |
LOSD |
|
|
-17 |
|
dBm |
|
LOS Hysteresis |
|
0.5 |
|
|
|
dB |
