Product Details:
|

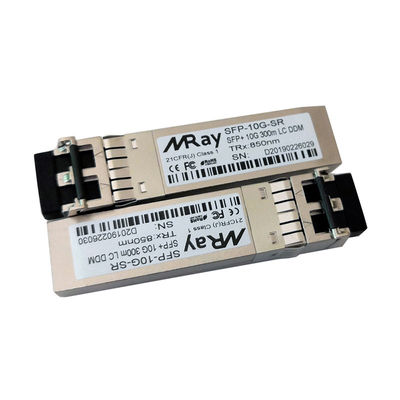

| Product Name: | SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M | Rate: | 10G |
|---|---|---|---|
| Fiber Type: | MMF | Connector: | Dual LC Connector |
| Working Temperature: | 0~70℃ | Wavelength: | 850nm |
| Warranty: | 3 Years | Application: | Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network, |
This SFP+ transceiver allows you to connect a 50/125 multimode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 300 meters (984 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Ref. |
|
Bit Rate |
BR |
8.5 |
|
10.52 |
Gb/s |
1 |
|
Bit Error Ratio |
BER |
|
|
10e-12 |
|
2 |
|
Max. Supported Link Length |
LMAX |
|
300 |
|
m |
1 |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Note |
Unit |
|
Transmitter |
||||||
|
Nominal Wavelength |
λ |
840 |
|
860 |
|
nm |
|
Optical Output Power |
Pav |
-6 |
|
0.5 |
|
dBm |
|
Extinction Ratio |
ER |
3 |
|
|
|
dB |
|
Relative Intensity Noise |
RIN |
|
|
-128 |
|
dB/Hz |
|
Transmitter |
||||||
|
Center Wavelength |
λC |
840 |
|
860 |
|
nm |
|
Receiver Sensitivity@8.5Gb/s |
RSENSE |
|
|
-11.5 |
1 |
dBm |
|
Receiver Sensitivity@10.52Gb/s |
RSENSE |
|
|
-11 |
1 |
dBm |
|
Average Receiver Power |
Pavg |
|
|
0.5 |
|
dBm |
|
LOS Assert |
LOSA |
-30 |
|
|
|
dBm |
|
LOS De-Assert LOS |
LOSD |
|
|
-12 |
|
dBm |
|
LOS Hysteresis |
|
0.5 |
|
|
|
dB |
