Product Details:
|
| Product Name: | 1000Base-SX 850nm MMF SFP Transceiver Module | Data Rate: | 1.25Gb/s |
|---|---|---|---|
| Connector: | Duplex LC | Wavelength: | 850nm/1310nm |
| Distance: | 0.55KM | Fiber Type: | MMF |
| Power Supply: | +3.3V | Warranty: | 3 Years |
| High Light: | AGM731F netgear sfp module,Duplex LC 1000 sx sfp,1310nm 1000 sx sfp |
||

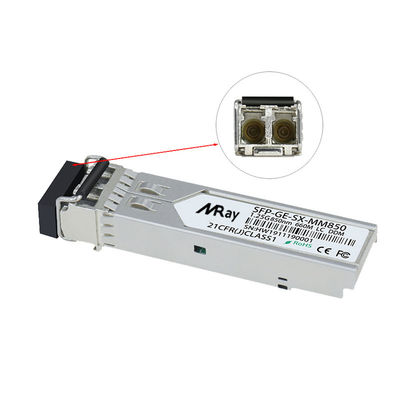

Miray GE-SX-MM850 SFP is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable. Cisco GLC-SX-MM is ROHS compliant, each of the components is lead-free.
850nm VCSEL laser and PIN photodetector
Meet SFP MSA and SFF-8472 with LC receptacle
Digital diagnostic monitoring
500m transmission with 50/125µm MMF,300m transmission with 62.5/125µm MMF
Hot-pluggable
Metal enclosure for lower EMI
+3.3V Single power supply
Qualified to meet the intent of Bellcore reliability practices
LVPECL logic interface simplifies interface to external circuitry
LVTTL logic level RX LOS
With pull de-latch
Operate data rate:1.25Gb/s;
Operate temperature Standard :0 to +70°C,Extended : -20 to +85°C,industrial : -40 to +85°C
Complies with RoHS directive
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Case Operating Temp. (GE-SX-MM850) |
TOP |
0 |
- |
+70 |
°C |
|
Case Operating Temp. (GE-SX-MM850i) |
TOP |
-40 |
- |
+85 |
°C |
|
Supply Voltage |
VCC |
+3.13 |
+3.3 |
+3.47 |
V |
|
Supply Current (GE-SX-MM850) |
ICC |
|
|
230 |
mA |
|
Supply Current (GE-SX-MM850i) |
ICC |
|
|
260 |
mA |
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
1.0625 |
1.25 |
|
Gb/s |
|
|
Optical Launch Power |
Po |
-9 |
|
-3 |
dBm |
1 |
|
Optical Center Wavelength |
λc |
830 |
850 |
870 |
nm |
|
|
Spectral Width (RMS) |
Δλ |
|
|
0.85 |
nm |
|
|
Optical Extinction Ratio |
ER |
9 |
|
|
dB |
|
|
Optical Eye Mask |
|
IEEE802.3z |
|
|||
|
Relative Intensity Noise |
RIN |
|
|
-117 |
dB/Hz |
|
|
Differential Data Input Swing |
VIN |
180 |
|
1200 |
mV |
|
|
TX Disable Input Voltage-Low (TX ON) |
TDISVL |
GND |
|
0.8 |
V |
|
|
TX Disable Input Voltage-High (TX OFF) |
TDISVH |
2.0 |
|
Vcc |
V |
|
|
TX Fault Output Voltage-Low (TX Normal) |
TFLTVL |
GND |
|
0.8 |
V |
|
|
TX Fault Output Voltage-High (TX Fault) |
TFLTVH |
2.0 |
|
Vcc |
V |
|
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)
|
Parameters |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Date Rate |
DR |
1.0625 |
1.25 |
|
Gb/s |
|
|
Receiver Sensitivity |
PIN_min |
|
|
-18 |
dBm |
1 |
|
Maximum Input Power |
PIN_max |
-3 |
|
|
dBm |
1 |
|
Optical Center Wavelength |
λc |
830 |
850 |
870 |
nm |
|
|
LOS De-Assert |
LOSD |
|
|
-19 |
dBm |
|
|
LOS Assert |
LOSA |
-38 |
|
|
dBm |
|
|
LOS Hysteresis |
LOSHY |
0.5 |
|
|
dB |
|
|
Differential Data Output Swing |
VOUT |
600 |
|
1000 |
mV |
|
|
Receiver LOS Signal Output Voltage-Low |
LOSVL |
GND |
|
0.8 |
V |
|
|
Receiver LOS Signal Output Voltage-High |
LOSVH |
2.0 |
|
Vcc |
V |
