Product Details:
|
| Product Name: | 10G 40km SFP+ Bidi ER Transceiver Module | Max Date Rate: | 10G |
|---|---|---|---|
| Wavelength: | 1270nm Tx /1330nm Rx | Distance: | 40km |
| Form Type: | SFP+ | Use: | FTTH |
| High Light: | FTTH cisco 10gbase sfp+ modules,Tx1270nm 10ge sfp+ transceiver module,Rx1330nm 10ge sfp+ transceiver module |
||

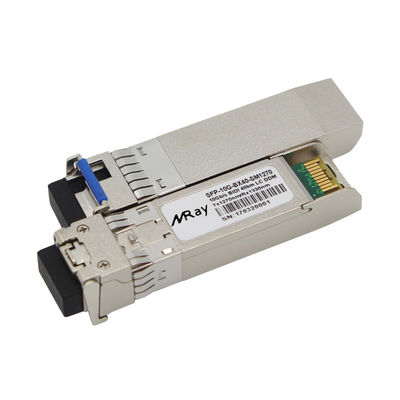

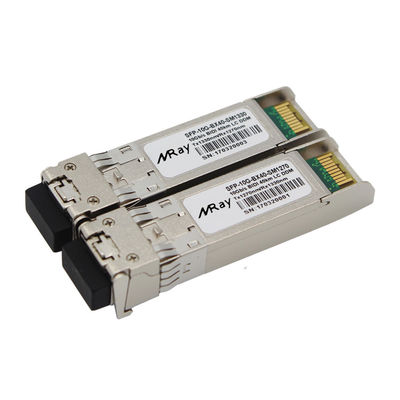

Miray’ SFP-10G-BX40-SM1270 & SFP-10G-BX40-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Supports 9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
Built-in 1270/1330 WDM Filter
Uncooled 1270nm or 1330nm CWDM DFB Laser.
2-wire interface with integrated Digital Diagnostic monitoring
Up to 40km transmission on SMF
BIDI LC optical connector
Single +3.3V power supply
Metal enclosure, for lower EMI
Maximum power consumption 1.5W
RoHS-6 compliant and lead-free
SFF-8472 MSA compliant &SFF-8431
Operating case temperature
Commercial: 0 ~ 70℃
Back to Back
10GBASE-ER/EW
10G Ethernet
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
Notes |
|
Storage Temperature |
TS |
-40 |
+85 |
℃ |
|
|
Supply Voltage |
VCC3 |
0 |
3.6 |
V |
|
|
Relative Humidity |
RH |
5 |
+85 |
% |
Note1 |
|
Rx Input Average Power |
Pmax |
- |
+1.5 |
dBm |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
||
|
Transmitter |
||||||||
|
Bit Rate |
BR |
9.9 |
|
11.3 |
Gb/s |
|
||
|
Optical Wavelength |
SFP-10G-BX40-SM1270 |
λ |
1260 |
1270 |
1280 |
nm |
|
|
|
SFP-10G-BX40-SM1330 |
|
1320 |
1330 |
1340 |
|
|||
|
Average output power |
Po |
0 |
|
+5 |
dBm |
|
||
|
Optical Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
||
|
Spectral width |
Δλ |
|
|
1 |
nm |
|
||
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
||
|
Optical Eye Mask |
|
Compliant with IEEE802.3ae |
|
|||||
|
Receiver |
||||||||
|
Bit Rate |
BR |
9.9 |
|
11.3 |
Gb/s |
|
||
|
Optical Wavelength |
SFP-10G-BX40-SM1270 |
λ |
1320 |
1330 |
1340 |
nm |
|
|
|
SFP-10G-BX40-SM1330 |
|
1260 |
1270 |
1280 |
|
|
||
|
Receiver Sensitivity |
Sen |
|
|
-16 |
dBm |
1 |
||
|
Maximum Input Power |
PMAX |
0 |
|
|
dBm |
|
||
|
LOS De-Assert |
LOSD |
|
|
-17 |
dBm |
|
||
|
LOS Assert |
LOSA |
-27 |
|
|
dBm |
|
||
|
LOS Hysteresis |
LOSH |
0.5 |
|
4 |
dB |
|||
